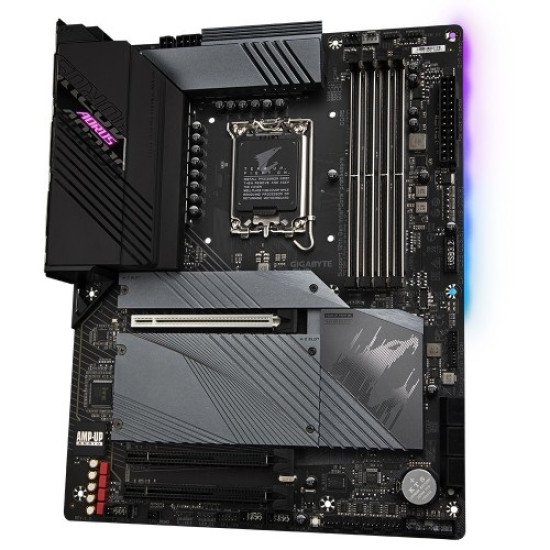

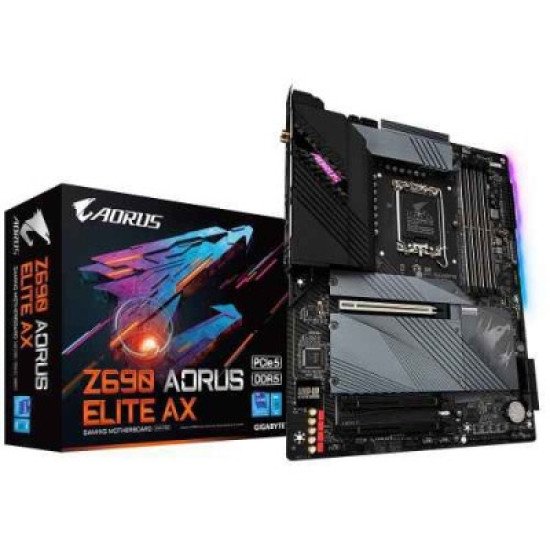

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard

-7 %

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard

Offer Price: 32,000৳
Price: 34,400৳
Stock: In Stock
Brand: Gigabyte
Model: Z690 AORUS ELITE AX
Product Code: 845788

Based on 0 reviews. - Write a review

32,000৳

34,400৳

Ex Tax: 32,000৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

LGA1700 socket for 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors L3 cache varies with the CPU
Chipset	Intel Z690 Express Chipset
Audio	2 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity) of system memory
Slots	4 x DIMM
Supported Memory	Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard

The Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard is an exceptional choice for high-performance PC builds in Bangladesh. Powered by the advanced Intel Z690 chipset, it supports 14th, 13th, and 12th Gen Intel Core processors, delivering top-tier performance for gaming, streaming, and creative workloads.

With support for DDR5 high-speed memory, PCIe 5.0 graphics card support, and PCIe 4.0 NVMe SSDs, this motherboard ensures super-fast responsiveness and strong upgrade potential. Built-in Wi-Fi 6, RGB Fusion lighting, enhanced audio, and a premium thermal design ensure stability and style for your gaming setup.

If you’re searching for a future-ready and powerful motherboard, the Gigabyte Z690 AORUS ELITE AX price in Bangladesh offers fantastic value for both gamers and power users.

Key Features

CPU Support Intel 14th / 13th / 12th Gen
Chipset Intel Z690
Memory Support DDR5 Dual-Channel, High-speed OC Ready
Graphics Support PCIe 5.0 slot for next-gen GPUs
Storage Multiple PCIe 4.0 NVMe M.2 slots
Wireless Intel Wi-Fi 6 + Bluetooth support
Networking High-speed LAN
Audio High-quality enhanced sound chipset
Form Factor ATX — fits standard gaming cases
Design RGB Fusion lighting, durable build

FAQs

Q1: What is the Gigabyte Z690 AORUS ELITE AX price in Bangladesh?

Pricing varies depending on availability. Check authorized retailers for the latest price in Dhaka and online shops.

Q2: Is DDR5 mandatory for this motherboard?

Yes — this specific model supports DDR5 only.

Q3: Is it good for gaming and editing?

Absolutely — PCIe 5.0 and fast DDR5 support make it ideal for high-performance systems.

Q4: Does it include Wi-Fi?

Yes — built-in Wi-Fi 6 ensures stable wireless connectivity.

Q5: Can it handle Intel 14th Gen CPUs?

Yes — fully compatible with the latest Intel processors.
