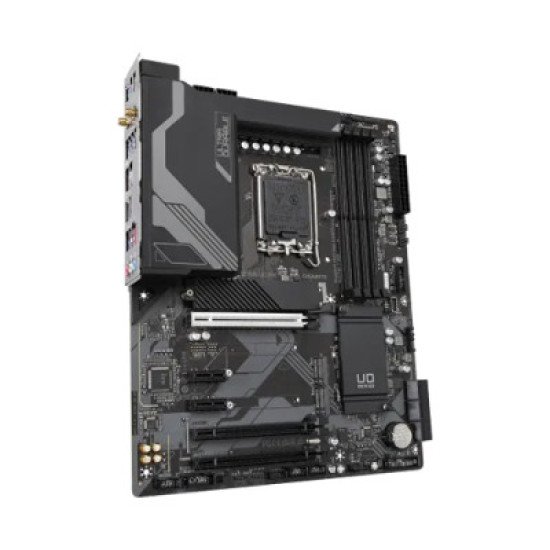

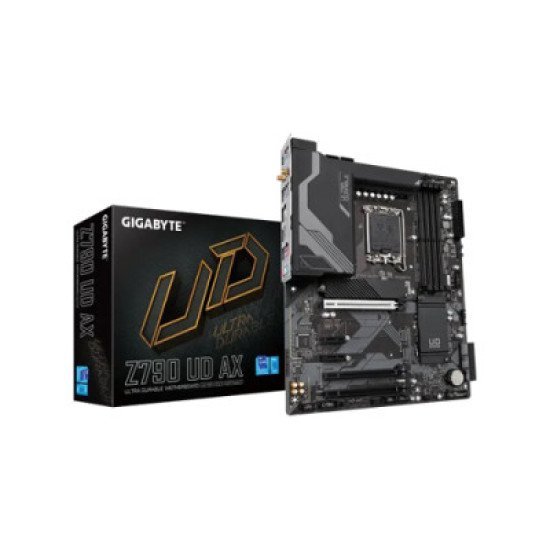

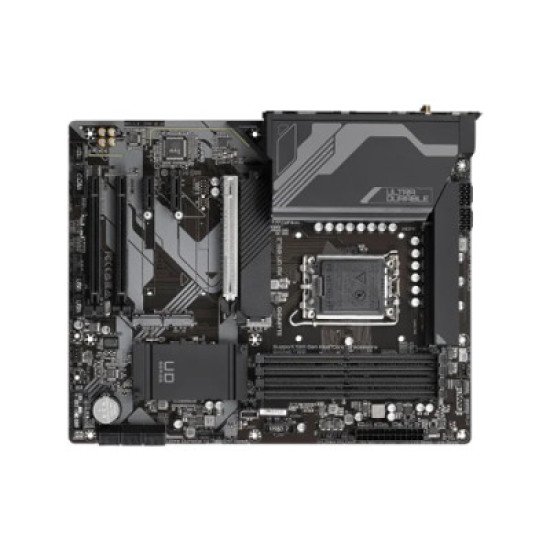

GIGABYTE Z790 UD AX ATX Motherboard

Offer Price: 30,900৳
Price: 34,000৳
Stock: In Stock
Brand: Gigabyte
Model: Z790 UD AX
Product Code: 810379

Based on 0 reviews. - Write a review

30,900৳

34,000৳

Ex Tax: 30,900৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z790 Express Chipset
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory Specifications
Maximum Memory	128GB (32 GB single DIMM capacity)
Slots	4 x DIMM sockets
Supported Memory	7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

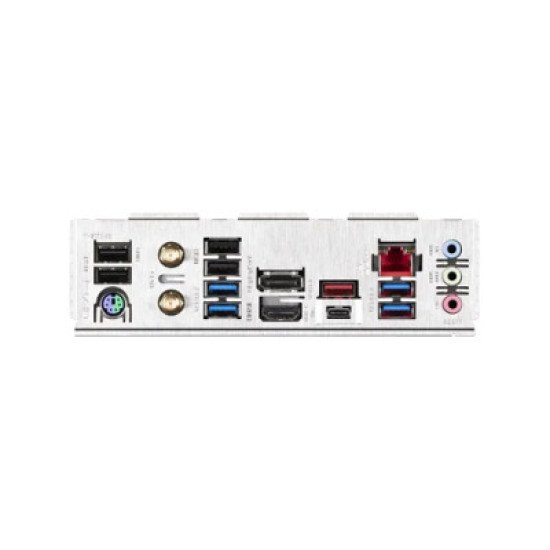

Connector & Ports
Audio	3 x audio jacks
Display Port	1 x DisplayPort
HDMI	1 x HDMI
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Warranty	3 years

Description

GIGABYTE Z790 UD AX ATX Motherboard Price in BD

The GIGABYTE Z790 UD AX ATX Motherboard is engineered for PC builders, gamers, and creators who demand cutting-edge performance. Designed with the Intel Z790 chipset and LGA1700 socket, it supports the latest Intel 14th, 13th, and 12th Gen Core processors, delivering incredible speed, stability, and overclocking potential.

Featuring DDR5 memory support up to 128GB at 7600MHz (OC), PCIe 5.0 GPU compatibility, and triple M.2 slots, this motherboard is built for high-performance gaming rigs and professional workstations. With Wi-Fi 6E, Bluetooth 5.2, 2.5GbE LAN, and rich USB connectivity, you’ll experience seamless networking and blazing data transfer speeds.

Key Features

CPU Support: Intel 14th, 13th, 12th Gen Core, Pentium Gold, and Celeron processors
Memory: 4x DDR5 DIMM slots | Up to 128GB | Up to 7600MHz (OC)
Graphics Expansion: PCIe 5.0 x16 slot for next-gen GPUs
Storage: 3x M.2 NVMe slots + 6x SATA 6Gb/s | RAID 0/1/5/10 support
Wireless Connectivity: Wi-Fi 6E + Bluetooth 5.2
Networking: Realtek 2.5GbE LAN for ultra-fast wired internet
Audio: 7.1-channel HD audio with Realtek Audio CODEC
Display Outputs: HDMI 2.0 & DisplayPort 1.2 | 4K support
USB Ports: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1/2, USB 2.0
Cooling: Multiple fan & water-cooling headers for optimal thermals
GIGABYTE Exclusive Tools: GCC, Q-Flash, Q-Flash Plus, Smart Backup

FAQs

Q1: What processors are compatible with the GIGABYTE Z790 UD AX motherboard?

Supports Intel 14th, 13th, and 12th Gen Core processors using the LGA 1700 socket.

Q2: Does it support DDR5 memory?

Yes, up to 128GB DDR5 RAM with speeds up to 7600MHz (OC).

Q3: How many M.2 slots are available?

Three M.2 slots supporting NVMe SSDs.

Q4: Is the motherboard PCIe 5.0 compatible?

Yes, it has a PCIe 5.0 x16 slot for next-gen GPUs.

Q5: What wireless connectivity does it have?

Built-in Wi-Fi 6E and Bluetooth 5.2 for fast wireless connections.

Q6: What LAN port speed does it support?

Realtek 2.5GbE LAN for high-speed wired networking.
