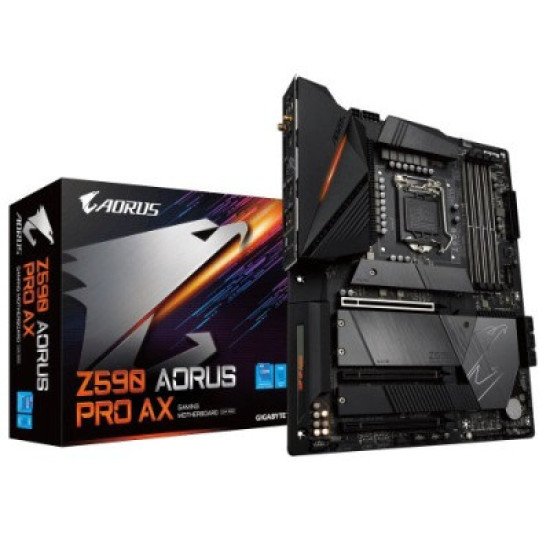

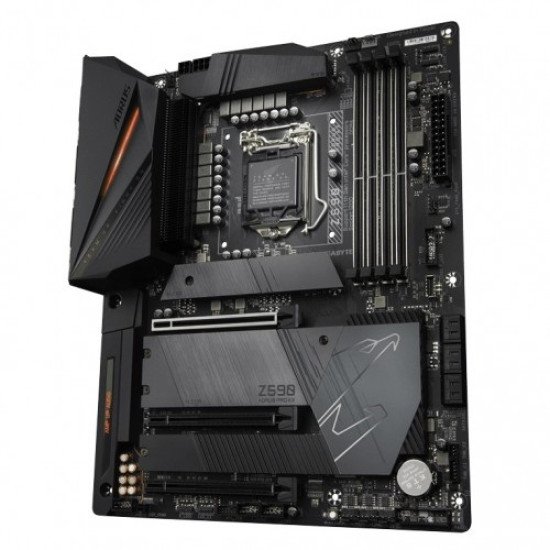

Gigabyte Z590 AORUS PRO AX 11th Gen ATX Motherboard

-8 %

Gigabyte Z590 AORUS PRO AX 11th Gen ATX Motherboard

Offer Price: 32,900৳
Price: 35,810৳
Stock: In Stock
Brand: Gigabyte
Model: Z590 AORUS PRO AX
Product Code: 845862

Based on 0 reviews. - Write a review

32,900৳

35,810৳

Ex Tax: 32,900৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports 11th and 10th Gen Intel Core Processors
Dual-Channel DDR4, 4 DIMMs
Intel WiFi 6 802.11ax 2T2R & BT5
Blazing Fast Intel 2.5GbE LAN

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
Audio	5 x audio jacks
Expansion Slots
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. * The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) *Supported by 11th Generation processors only. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) (PCIEX4_1 and PCIEX4_2 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	128 GB (32 GB single DIMM capacity)
Slots	4 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.) /4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3 /Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	Dual-channel memory architecture
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Audio	Realtek ALC4080 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen2 support 1 x USB 3.2 Gen1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU) *Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
TPM (Trusted Platform Module )	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header) Chipset+USB 3.2 Gen1 Hubs: 4 x USB 3.2 Gen1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte Z590 AORUS PRO AX 11th Gen ATX Motherboard

The Gigabyte Z590 AORUS PRO AX 11th Gen ATX Motherboard delivers high-end performance for gamers, streamers, and PC enthusiasts in Bangladesh. Powered by the advanced Intel Z590 Express chipset, it supports 11th & 10th Gen Intel Core processors with the LGA1200 socket, ensuring smooth speed and powerful multitasking.

With PCIe 4.0 GPU support, DDR4 high-frequency memory, and multiple PCIe 4.0 M.2 NVMe SSD slots, this motherboard provides ultra-fast data access and improved gaming performance. The board also includes Intel WiFi 6, 2.5GbE LAN, and premium audio, making it ideal for competitive gamers and creative professionals in Dhaka.

Its robust thermal design with enlarged heatsinks and RGB Fusion lighting enhances both aesthetics and durability, making it a top pick for performance PC builds in Bangladesh.

Key Features

CPU Support Intel 11th/10th Gen Core, Pentium Gold & Celeron (LGA1200)
Chipset Intel Z590 Express
Memory DDR4 Dual-Channel, Supports high-speed OC memory
Graphics Support PCIe 4.0 x16 for next-gen GPUs
Storage Multiple PCIe 4.0 M.2 NVMe SSD slots
Networking Intel WiFi 6 + 2.5GbE Gaming LAN
USB Ports Includes USB 3.2 Gen 2 Type-C
Cooling System Advanced Thermal Design with M.2 Thermal Guards
Audio High-Definition Audio for immersive gaming
Aesthetics RGB Fusion Lighting with customizable zones

FAQs

Q1: Does it support Intel 11th Gen CPUs?

Yes, fully supports 11th Gen Core processors along with 10th Gen.

Q2: Can I use PCIe 4.0 graphics cards?

Yes — PCIe 4.0 is supported with 11th Gen CPUs.

Q3: Does it come with built-in WiFi?

Yes, Intel WiFi 6 is included for high-speed wireless connectivity.

Q4: Is this motherboard good for gaming in Bangladesh?

Definitely — it’s designed for high FPS gaming and strong networking performance.

Q5: What is the price in Dhaka or Bangladesh?

Prices vary depending on stock and sellers. I can help you check the latest price in Bangladesh if you want!
