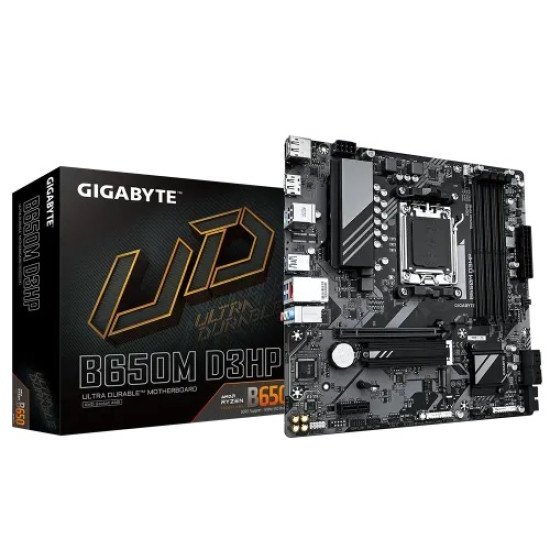

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

-13 %

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

Offer Price: 17,500৳
Price: 20,210৳
Stock: In Stock
Brand: Gigabyte
Model: B650M D3HP
Product Code: 831432

Based on 0 reviews. - Write a review

17,500৳

20,210৳

Ex Tax: 17,500৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: B650M D3HP
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Graphics Output: 2x Display Port, 1 x HDMI
Features: Realtek 2.5GbE LAN chip

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset	AMD B650
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Memory Specifications
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory
Slots	4 DIMMs
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)
Connector & Ports
Audio	3 x Audio jacks
Display Port	2 x DisplayPorts
HDMI	1x HDMI
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE B650M D3HP DDR5 AM5 Motherboard – Price in Bangladesh

The GIGABYTE B650M D3HP DDR5 AM5 Motherboard is built to deliver next-generation performance for gamers, creators, and PC enthusiasts in Bangladesh. Designed for the latest AMD Ryzen 7000 Series processors, this motherboard ensures exceptional speed, stability, and connectivity for both professional workloads and high-end gaming.

Equipped with a robust 5+2+2 phases digital VRM solution, it guarantees stable power delivery even under heavy multitasking or overclocking conditions. The board supports dual-channel DDR5 memory across four DIMM slots, compatible with AMD EXPO and Intel XMP profiles for flexible tuning and enhanced memory performance.

For lightning-fast storage, the PCIe 4.0 x4 M.2 slot provides ultra-quick data access and reduced game load times. The EZ-Latch design on the PCIe x16 slot simplifies GPU installation, while the 2.5GbE LAN ensures lag-free online gaming and streaming.

Featuring Smart Fan 6 technology, the B650M D3HP intelligently controls temperature and fan speeds for efficient and quiet cooling. The Q-Flash Plus feature makes BIOS updates simple—no CPU, GPU, or RAM required.

If you’re searching for a powerful AM5 motherboard at the best price in Bangladesh, the GIGABYTE B650M D3HP DDR5 is a premium choice for your next-generation PC build.

Key Features

Socket: AMD AM5, compatible with Ryzen 7000 Series processors
Memory Support: 4x DDR5 DIMM slots, dual-channel, supports AMD EXPO & Intel XMP
VRM Design: 5+2+2 Phases Digital VRM for stable and reliable power delivery
Storage Interface: 1x PCIe 4.0 x4 M.2 slot for ultra-fast NVMe SSDs
Networking: 2.5 Gigabit Ethernet LAN for faster and more stable connections
Display Outputs: 2x DisplayPort + 1x HDMI for multiple monitor setups
Cooling System: Smart Fan 6 with hybrid fan headers and fan stop function
PCIe Slot: PCIe EZ-Latch for easy GPU installation and removal
BIOS Update: Q-Flash Plus allows BIOS updates without CPU, GPU, or RAM
Form Factor: Micro-ATX – ideal for compact, high-performance builds

FAQs

Q1. What is the price of the GIGABYTE B650M D3HP DDR5 AM5 motherboard in Bangladesh?

The GIGABYTE B650M D3HP DDR5 AM5 motherboard price in Bangladesh varies by shop, but it’s typically in the mid-range segment for AM5 motherboards. Check with local retailers in Dhaka or trusted online stores for the most up-to-date pricing.

Q2. Does this motherboard support DDR4 RAM?

No, the GIGABYTE B650M D3HP supports only DDR5 memory modules.

Q3. Can I use this motherboard for gaming?

Absolutely! With support for AMD Ryzen 7000 Series CPUs, DDR5 RAM, and PCIe 4.0, it’s a great choice for high-performance gaming PCs in Bangladesh.

Q4. Does it have built-in Wi-Fi?

No, this model does not include built-in Wi-Fi. However, you can add a PCIe or USB Wi-Fi adapter easily.

Q5. How do I update the BIOS on this motherboard?

You can use Q-Flash Plus to update the BIOS without needing a CPU, memory, or GPU—perfect for future CPU upgrades.
