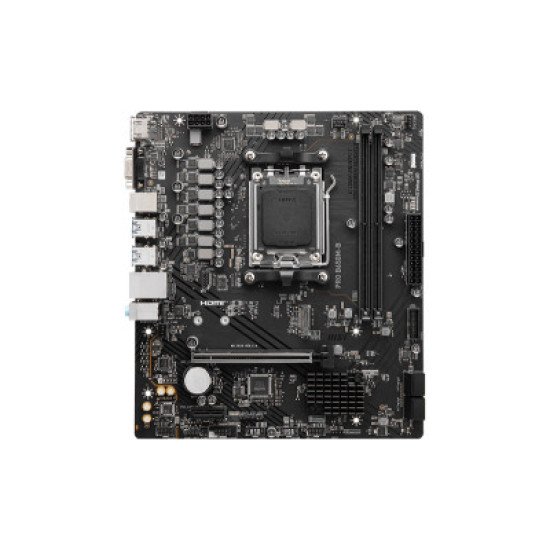

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard

-10 %

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard

Offer Price: 13,999৳
Price: 15,500৳
Stock: In Stock
Brand: MSI
Model: PRO B650M-B
Product Code: 812377

Based on 0 reviews. - Write a review

13,999৳

15,500৳

Ex Tax: 13,999৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 6800+(OC) MHz
Graphics Output: 1x HDMI, 1x VGA
Features: 2.5G LAN

View more details

For further queries, please call 01999-913558

Specification

Basic Information
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	96GB
Slots	2
Supported Memory	6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

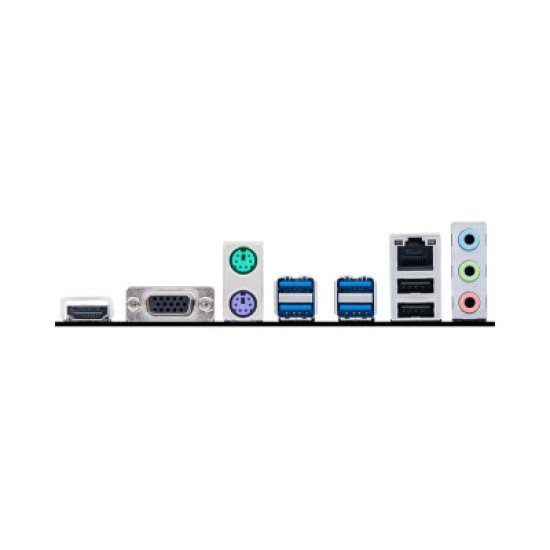

Connector & Ports
Audio	Audio Connectors
Display Port	1 x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
VGA (s)	1x VGA
Warranty Information
Warranty	3 years

Description

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard Price in BD

The MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard is designed for powerful performance, advanced connectivity, and future-ready features. Built to support the latest AMD Ryzen 7000 and 8000 Series processors with Socket AM5, this motherboard is a perfect choice for gamers, creative professionals, and multitaskers.

With DDR5 memory support, high-speed LAN, and multiple display options, it offers a reliable foundation for building a high-performance PC that adapts to modern computing needs.

Key Features

Supports AMD Ryzen 7000 and 8000 Series processors with AM5 socket
Compatible with up to 2x DDR5 RAM modules, speeds up to 6800+ MHz (OC)
m-ATX form factor for compact yet powerful builds
Dual display support with 1x HDMI and 1x VGA port
2.5G LAN for ultra-fast and stable networking
High-quality components for long-term reliability
Ideal for gaming, streaming, content creation, and professional workloads

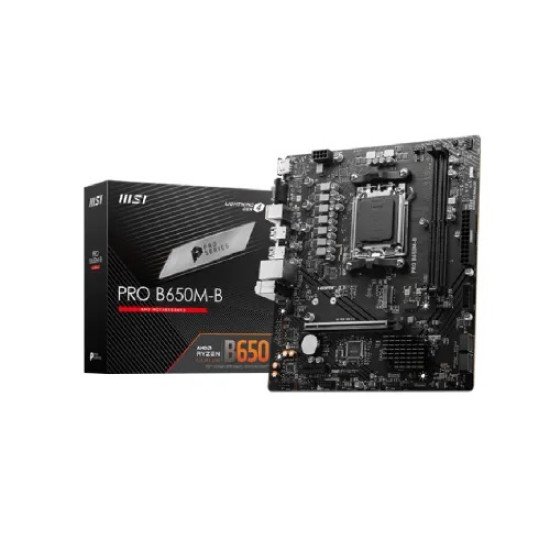

Unboxing MSI PRO B650M-B

FAQ

Q1: Which processors are compatible with the MSI PRO B650M-B?
A: It supports AMD Ryzen 7000 and 8000 Series processors with Socket AM5.

Q2: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5 memory modules up to 6800+ MHz (OC).

Q3: Can I connect multiple displays with this motherboard?
A: Yes, it comes with 1x HDMI and 1x VGA port, allowing dual display setups.

Q4: Is the MSI PRO B650M-B good for gaming?
A: Yes, with DDR5 support, PCIe slots, and 2.5G LAN, it is an excellent choice for smooth gaming and high-performance tasks.

Q5: What form factor does this motherboard use?
A: It uses the micro-ATX (m-ATX) form factor, suitable for compact builds without compromising performance.
