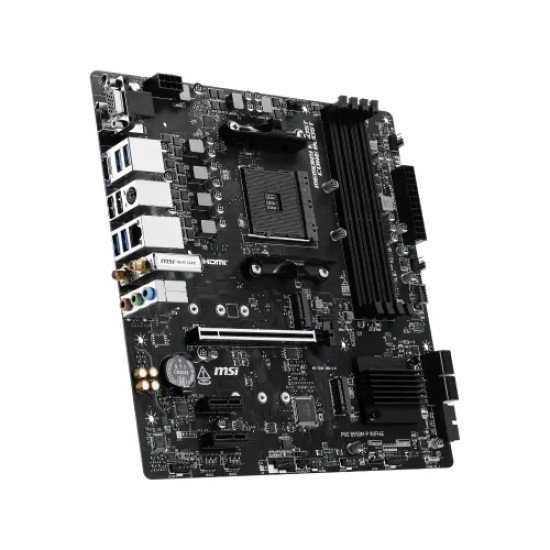

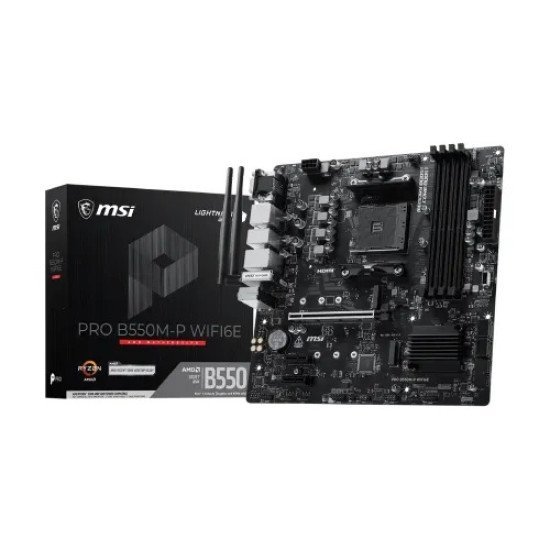

MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard

-2 %

MSI PRO B550M-P WIFI6E AMD AM4 mATX Motherboard

Offer Price: 15,699৳
Price: 16,100৳
Stock: In Stock
Brand: MSI
Model: PRO B550M-P WIFI6E
Product Code: 908540

Based on 0 reviews. - Write a review

15,699৳

16,100৳

Ex Tax: 15,699৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series (AM4)
Supported RAM: 4x DDR4 Slots, Max 128GB, Up to 4400+ MHz (OC)
Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
Features: 2x M.2, Realtek RTL8111H 1Gbps LAN, Wi-Fi 6E, Bluetooth 5.3

View more details

For further queries, please call 01999-913558

Specification
Review

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
Chipset	AMD B550
Audio	Realtek ALC892/ALC897 Codec
Generel information
Wireless Connection	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz* frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax
Expansion Slots
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	Up to 128GB
Supported Memory	Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s< br> • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode
Type	DDR4
Graphics Specifications
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
Max Shared Memory	16 GB
Connector & Ports
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Display Port	1x DisplayPort 1.4
HDMI	1 x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LAN Port (s)	Realtek RTL8111H 1Gbps LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module )	1 x TPM module connector
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
VGA (s)	1x VGA
Others
Special Features	4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit
Warranty Information
Warranty	3 years
