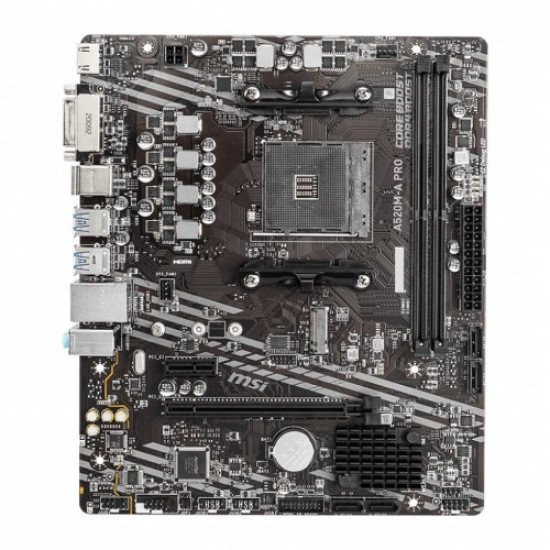

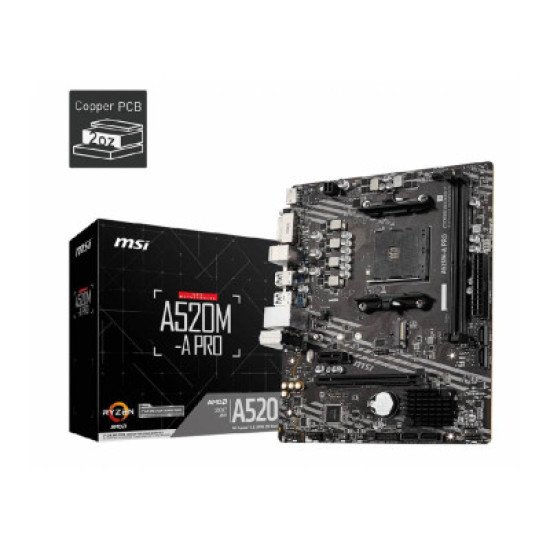

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

-9 %

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

Offer Price: 7,800৳
Price: 8,580৳
Stock: In Stock
Brand: MSI
Model: A520M-A Pro
Product Code: 811711

Based on 0 reviews. - Write a review

7,800৳

8,580৳

Ex Tax: 7,800৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
PCB with 2OZ Thickened Copper
Supports up to 4600(OC) MHz RAM
Core Boost, Turbo M.2 & Audio Boos

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B520
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
PCI	1x PCIe 3.0 x1 slot 1x PCIe x16 slot
Memory Specifications
Maximum Memory	64GB
Slots	2x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Type	Dual-channel memory architecture
Graphics Specifications
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Max Shared Memory	16GB
Connector & Ports
Display Port	1 x DisplayPort
HDMI	1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
LAN Port (s)	1x Realtek RTL8111H Gigabit LAN controller
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )	1xTPM module connector

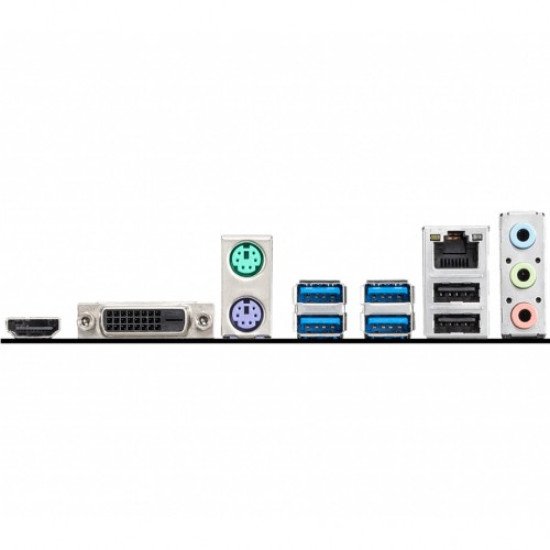

USB (s)	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Warranty Information
Warranty	3 years

Description

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard Price in Bangladesh

The MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is designed for gamers, professionals, and PC enthusiasts who demand performance, stability, and reliability. Built on the AMD A520 chipset, this board supports the latest AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series desktop processors, making it an ideal choice for custom builds.

With advanced features like Turbo M.2, Core Boost, DDR4 Boost, and Audio Boost, the A520M-A Pro ensures fast performance, smooth multitasking, and superior sound quality. Whether you’re gaming, creating, or working, this motherboard delivers exceptional results.

Why Choose MSI A520M-A Pro AM4 Motherboard?

High-End Gaming Performance – Optimized for the latest AAA games and heavy applications.
Future-Proof Build – Supports Ryzen 5000 processors and high-speed DDR4 memory.
Faster Storage – Turbo M.2 ensures blazing-fast SSD performance.
Stable Power Delivery – Core Boost digital design guarantees efficiency.
Studio-Grade Audio – Audio Boost enhances immersive sound quality.
Durability & Reliability – Enhanced PCB and premium components ensure long-lasting performance.

MSI A520M-A Pro Review

MSI A520M-A Pro Price range in BD

The MSI A520M-A Pro AM4 motherboard price in Bangladesh may vary depending on stock availability and warranty coverage.

Price Range: ৳7,000 – ৳9,000 (Approx.)

For the best price in Dhaka and nationwide, it’s recommended to purchase from trusted retailers like Canvas IT to ensure genuine products and official warranty support.

MSI A520M-A Pro vs Other Budget AM4 Motherboards

Compared to entry-level A320 or older B450 boards, the MSI A520M-A Pro offers better CPU compatibility, improved power delivery, and faster storage support. While B550 motherboards provide PCIe 4.0 support, the A520M-A Pro focuses on affordability, stability, and everyday performance, making it ideal for budget-conscious users who don’t need high-end overclocking features.

Customer Testimonials

Rafi U., Dhaka

“Built a Ryzen 5 PC with the MSI A520M-A Pro. Very stable and boots fast with NVMe SSD. Great value for money.”

Shamim H., Rajshahi

“Perfect motherboard for my office PC. MSI quality is excellent and Canvas IT provided genuine product with warranty.”...

FAQs

Q1: Which processors are supported by MSI A520M-A Pro?

It supports AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series desktop processors.

Q2: How much RAM can I install on this motherboard?

You can install up to 64GB DDR4 RAM with speeds up to 4600MHz (OC).

Q3: Does it support NVMe SSDs?

Yes, the Turbo M.2 slot supports NVMe SSDs with PCIe Gen3 x4.

Q4: Is this motherboard good for gaming?

Absolutely! With Core Boost, DDR4 Boost, and Audio Boost, it’s excellent for high-performance gaming.

Q5: What is the warranty for the MSI A520M-A Pro?

It comes with a 3-year official warranty in Bangladesh.
