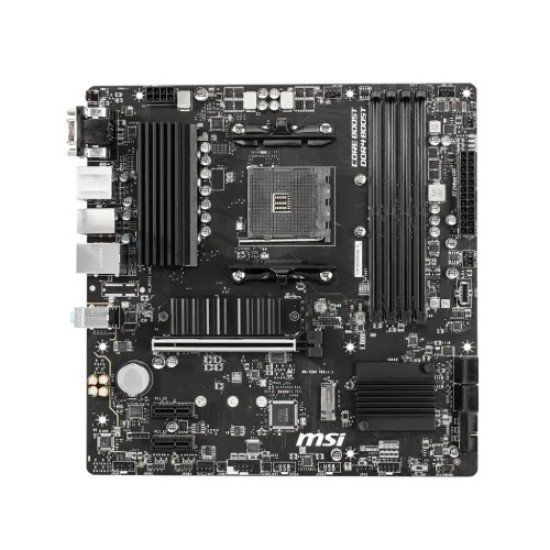

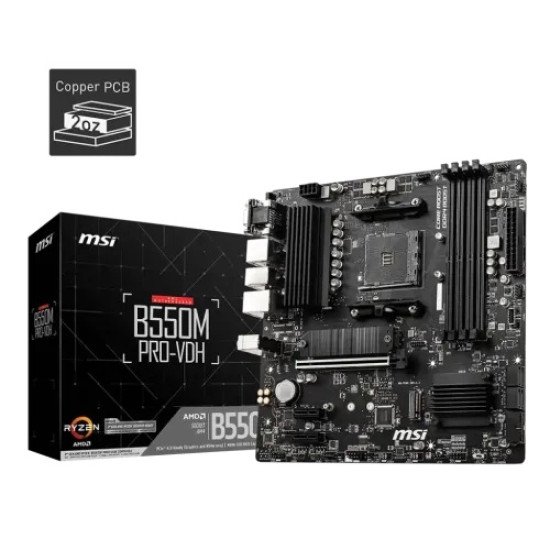

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

-10 %

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

Offer Price: 14,200৳
Price: 15,800৳
Stock: In Stock
Brand: MSI
Model: B550M Pro-VDH
Product Code: 812451

Based on 0 reviews. - Write a review

14,200৳

15,800৳

Ex Tax: 14,200৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports AMD Ryzen 5000 & 3000 Series Processors
PCB with 2OZ Thickened Copper
Supports DDR4 Memory, up to 4400(OC) MHz
PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
PCI	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
Memory Specifications
Maximum Memory	128GB
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Type	Dual-channel memory architecture
Graphics Specifications
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory	16 GB

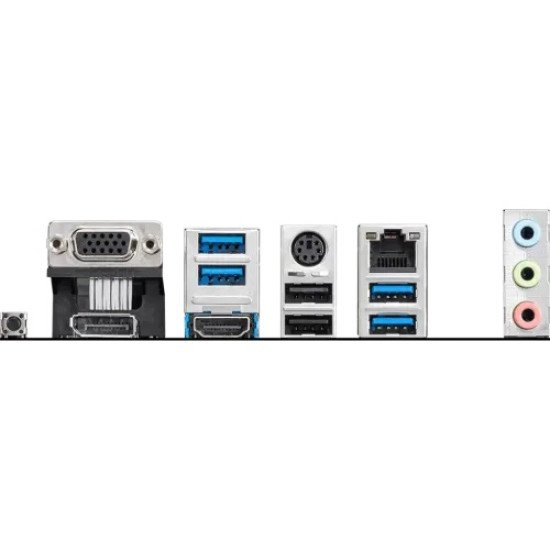

Connector & Ports
Display Port	1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
LAN Port (s)	1x Realtek 8111HN Gigabit LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )	1 x TPM module connector
USB (s)	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Warranty Information
Warranty	3 years

Description

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard

The MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard is designed for gamers, content creators, and PC enthusiasts looking for a powerful and compact solution. Built with the AMD B550 chipset, it supports AMD Ryzen processors on the AM4 socket, ensuring compatibility with the latest CPU generations. This motherboard delivers reliable performance, expandability, and advanced connectivity in a space-saving Micro-ATX form factor.

Key Features

Compatible with AMD Ryzen 5000, 4000G, 3000, and earlier series processors with AM4 socket
Supports dual-channel DDR4 memory up to 128GB for multitasking and high-performance workloads
Multi-display support with HDMI, VGA, DVI-D, and DisplayPort outputs
Expansion slots include 1 PCIe 3.0 x16 and 2 PCIe 3.0 x1 slots
Two M.2 slots for ultra-fast SSDs supporting PCIe Gen 4, 3, and 2
Front and rear USB ports: USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1 Type-A, and USB 2.0 for extensive connectivity
Gigabit LAN port for fast and stable networking
Multiple fan connectors for effective system cooling
Micro-ATX form factor ideal for compact, space-saving PC builds
Durable design with reliable performance for gaming, content creation, and general-purpose use

Why Choose MSI B550M Pro-VDH?

This motherboard combines durability, speed, and flexibility, making it an ideal choice for high-performance gaming, creative work, or general-purpose PCs. Its robust design and high-speed connectivity ensure you can upgrade and expand your system without limits.

FAQ

Q1: Which AMD Ryzen processors are compatible with the MSI B550M Pro-VDH?

A: It supports AMD Ryzen 5000, 4000G, 3000, and earlier series processors with the AM4 socket.

Q2: What is the maximum RAM supported by this motherboard?

A: The MSI B550M Pro-VDH supports up to 128GB of dual-channel DDR4 memory.

Q3: Can I connect multiple monitors to this motherboard?

A: Yes, it offers HDMI, VGA, DVI-D, and DisplayPort outputs for smooth multi-display setups.

Q4: Does this motherboard support PCIe 4.0 devices?

A: Yes, it supports PCIe Gen 4, 3, and 2, making it compatible with modern graphics cards and SSDs.

Q5: Is this motherboard suitable for a compact PC build?

A: Absolutely. Its Micro-ATX form factor allows you to build a high-performance PC in smaller cases without sacrificing functionality.
