MSI B850M Gaming PRO WiFi6E AMD mATX Motherboard

-14 %

MSI B850M Gaming PRO WiFi6E Motherboard for AI PC

Offer Price: 27,900৳
Price: 32,500৳
Stock: In Stock
Brand: MSI
Model: B850M GAMING PRO WIFI6E
Product Code: 912129

Based on 0 reviews. - Write a review

27,900৳

32,500৳

Ex Tax: 27,900৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

AMD B850 chipset with AM5 socket
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors
4 DDR5 UDIMM slots with up to 256GB memory capacity
Supports DDR5 memory speeds up to 8200+ MT/s with overclocking

View more details

For further queries, please call 01999-913558

Specification

Basic Information
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Graphic Card	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
Generel information
LAN	Realtek® 8125D 2.5G LAN
LED	4x EZ Debug LED 1x EZ Memory Detection LED

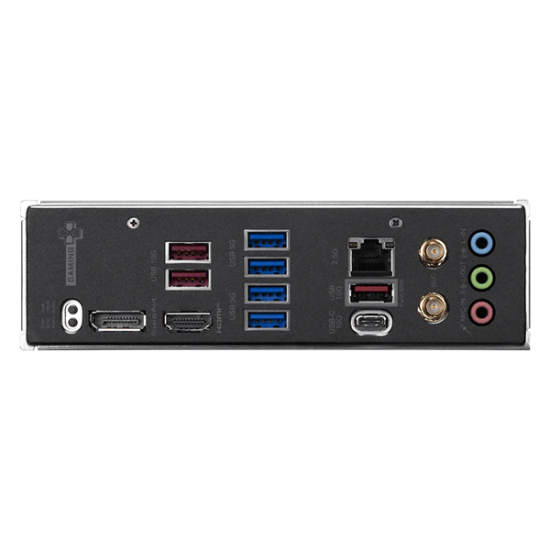

Port	Clear CMOS Button USB 10Gbps (Type-A) USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button DisplayPort 1.4 HDMI™ USB 10Gbps (Type-C) USB 10Gbps (Type-A)
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
External Features
I/O Port	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Memory Specifications
Slots	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Supported Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Type	DDR5
Connector & Ports
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
HDMI	1x HDMI 2.1
LAN Port (s)	Realtek 8125D 2.5G LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot** • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Wireless Communication module	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
System
Operating System	Support for Windows 11 64-bit
Warranty Information
Warranty	3 years

Description

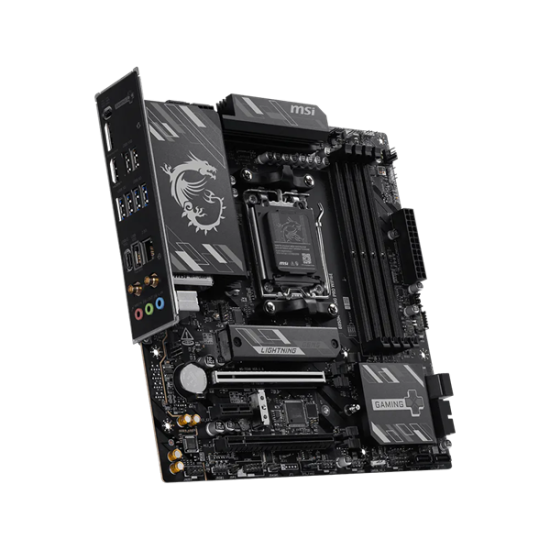

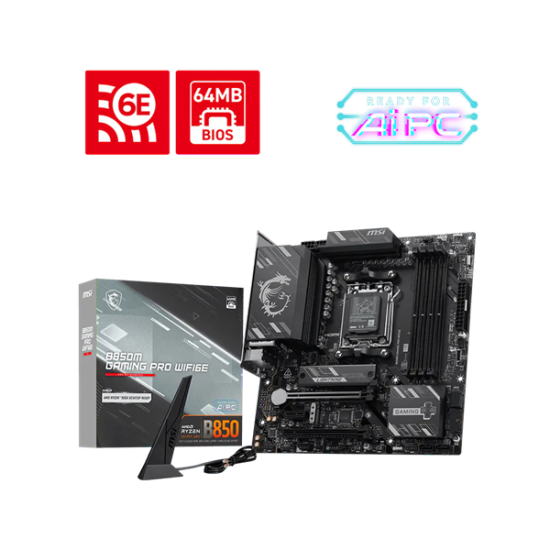

MSI B850M Gaming PRO WiFi6E AMD mATX Motherboard

The MSI B850M Gaming PRO WiFi6E AMD mATX Motherboard is designed for powerful AMD Ryzen desktop PC builds. Featuring the AMD B850 chipset, AM5 socket, DDR5 memory support, Wi-Fi 6E, and 2.5G LAN, it is suitable for gaming, productivity, and high-performance computing. Its PCIe 5.0 M.2 support and compact micro-ATX design make it a practical choice for modern PC builders.

Key Features

AMD B850 chipset with AM5 socket
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors
4 DDR5 UDIMM slots with up to 256GB memory capacity
Supports DDR5 memory speeds up to 8200+ MT/s with overclocking, depending on CPU and configuration
Supports AMD EXPO memory overclocking
PCIe 4.0 x16 primary expansion slot
2 M.2 slots, including PCIe 5.0 x4 support with compatible processors
4 SATA 6Gbps connectors
Wi-Fi 6E with 2.4GHz, 5GHz, and 6GHz band support
Bluetooth 5.3 connectivity
Realtek 8125D 2.5G LAN
HDMI 2.1 and DisplayPort 1.4 outputs
USB 10Gbps Type-A and Type-C connectivity
Realtek ALC897 7.1-channel HD audio
EZ Debug LED and Flash BIOS Button
Supports Windows 11 64-bit

MSI B850M Gaming PRO WiFi6E Motherboard Price in Bangladesh

The MSI B850M Gaming PRO WiFi6E AMD mATX Motherboard price in Bangladesh may vary depending on stock availability and market conditions. Contact Canvas IT for the latest price, dealer offers, and availability.

Why Choose MSI B850M Gaming PRO WiFi6E?

This motherboard offers a useful combination of modern connectivity, DDR5 memory support, and next-generation storage compatibility. Its AM5 socket supports multiple Ryzen processor generations, while Wi-Fi 6E and 2.5G LAN provide flexible networking options. The micro-ATX form factor is suitable for compact gaming PCs and everyday performance-focused builds.

Buy MSI B850M Gaming PRO WiFi6E from Canvas IT

Looking for the MSI B850M Gaming PRO WiFi6E motherboard at a competitive price in Bangladesh? Canvas IT offers PC components for gaming, office, and professional builds. Contact 01958-013555 for current pricing, stock information, and special offers.

Alternatives to MSI B850M Gaming PRO WiFi6E

You can also consider the MSI B850M GAMING WIFI6E, other AMD B850 motherboards, or selected B650 motherboards depending on your processor, budget, and required features.

FAQs

Which processors are compatible with the MSI B850M Gaming PRO WiFi6E?

It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

How much RAM does this motherboard support?

It supports up to 256GB of DDR5 memory across four UDIMM slots. Supported speeds depend on the CPU and memory configuration.

Does it support PCIe 5.0 SSDs?

Yes. The first M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series processor support varies by model.

Does the motherboard have built-in Wi-Fi?

Yes. It includes Wi-Fi 6E and Bluetooth 5.3.

Where can I buy this motherboard in Bangladesh?

Contact Canvas IT at 01958-013555 for the latest price and availability.
