-18 %

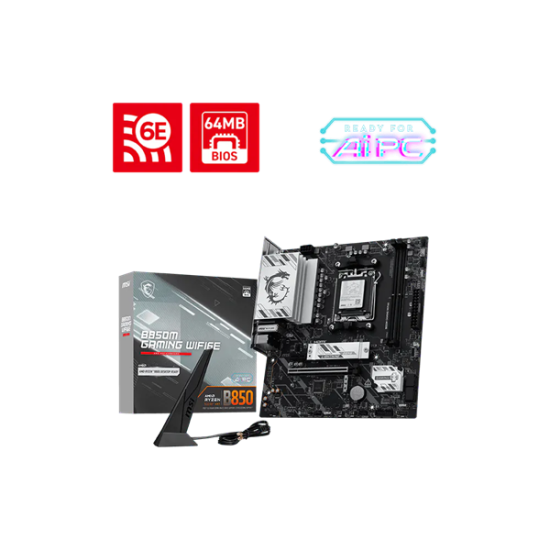

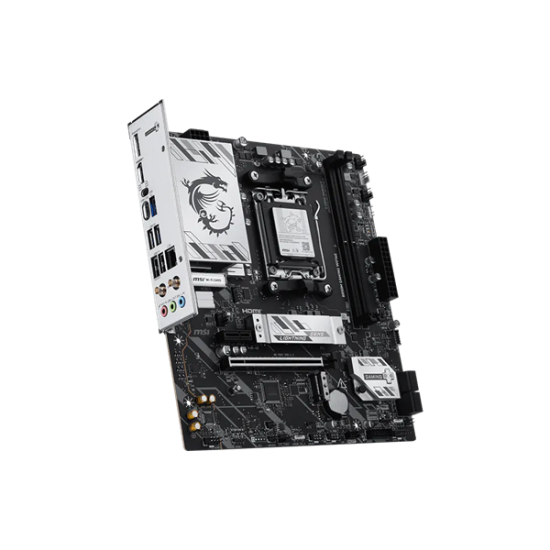

MSI B850M GAMING WIFI6E Motherboard

Offer Price: 22,500৳
Price: 27,500৳
Stock: In Stock
Brand: MSI
Model: B850M GAMING WIFI6E
Product Code: 909983

Based on 0 reviews. - Write a review

22,500৳

27,500৳

Ex Tax: 22,500৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports AMD Ryzen 9000/ 8000/ 7000 Processors
2x DDR5 UDIMM
Chipset: AMD B850
Operating System: Support for Windows 11 64-bit Motherboard

View more details

For further queries, please call 01999-913558

Specification

Basic Information
Form Factor	mATX 226mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Generel information
LED	4x EZ Debug LED 1x EZ Memory Detection LED
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
External Features

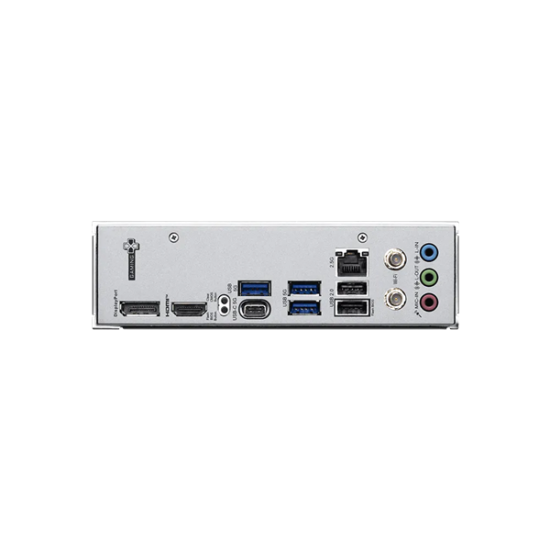

I/O Port	Clear CMOS Button USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors DisplayPort 1.4 HDMI Flash BIOS Button USB 5Gbps (Type-C) USB 2.0
Memory Specifications
Supported Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
Audio	1x Front Audio (JAUD)
HDMI	1x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s)	Realtek 8125D 2.5G LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Wireless Communication module	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
System
Operating System	Support for Windows 11 64-bit
Warranty Information
Warranty	3 years

Description

MSI B850M GAMING WIFI6E Motherboard Price in Bangladesh

The MSI B850M GAMING WIFI6E is a modern micro-ATX motherboard for AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 platform. It supports DDR5 memory, PCIe 5.0, Gen5 M.2 storage, Wi-Fi 6E, and 2.5G LAN, making it suitable for gaming, streaming, content creation, and high-performance PC builds.

Key Features

AMD AM5 platform support
Compatible with Ryzen 7000, 8000, and 9000 series processors
B850 chipset
Micro-ATX form factor
DDR5 memory support with overclocking capability
PCIe 5.0 support
Gen5 M.2 NVMe SSD support
Wi-Fi 6E wireless connectivity
2.5G LAN
USB Type-C connectivity
Enhanced VRM design for stable power delivery
Optimized thermal design
MSI EZ DIY features
Suitable for gaming, streaming, productivity, and content creation

DDR5 Memory and PCIe 5.0 Support

The motherboard supports high-speed DDR5 memory, providing improved bandwidth and system responsiveness for modern applications and gaming. PCIe 5.0 support enables compatibility with next-generation graphics cards and expansion devices, while Gen5 M.2 support provides high-speed storage performance for faster boot times and application loading.

Wi-Fi 6E and 2.5G LAN

The MSI B850M GAMING WIFI6E offers both Wi-Fi 6E and 2.5G LAN for fast and reliable network connectivity. Wi-Fi 6E provides access to the 6GHz wireless band, while 2.5G LAN is suitable for high-speed wired networking, online gaming, streaming, and large file transfers.

MSI B850M GAMING WIFI6E Price in Bangladesh

The MSI B850M GAMING WIFI6E motherboard price in Bangladesh may vary depending on availability, warranty, and market conditions. For the latest price, stock information, and dealer offers, check with Canvas IT.

Why Buy MSI B850M GAMING WIFI6E from Canvas IT?

Canvas IT offers original computer components with warranty and competitive pricing in Bangladesh. You can purchase the MSI B850M GAMING WIFI6E motherboard at a competitive price and get support for building a compatible AMD Ryzen PC.

FAQs

Which processors are compatible with the MSI B850M GAMING WIFI6E?

It supports AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 platform.

Does the MSI B850M GAMING WIFI6E support DDR5 RAM?

Yes, it supports DDR5 memory with overclocking capability.

Does it support PCIe 5.0?

Yes, the motherboard provides PCIe 5.0 support for compatible next-generation hardware.

Does this motherboard have Wi-Fi?

Yes, it features Wi-Fi 6E connectivity.

Does it support high-speed wired networking?

Yes, it includes 2.5G LAN for high-speed wired network connections.
