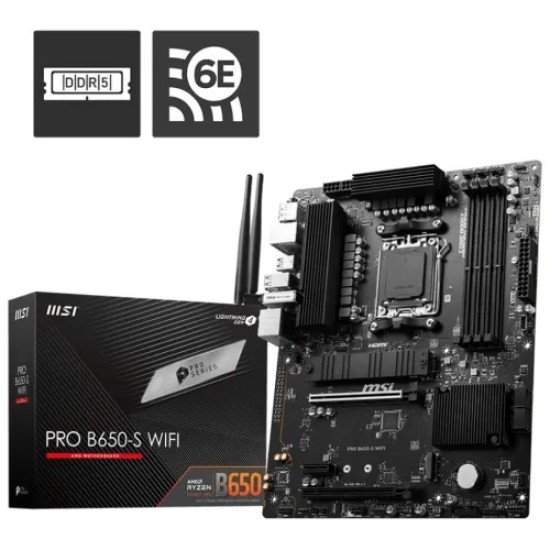

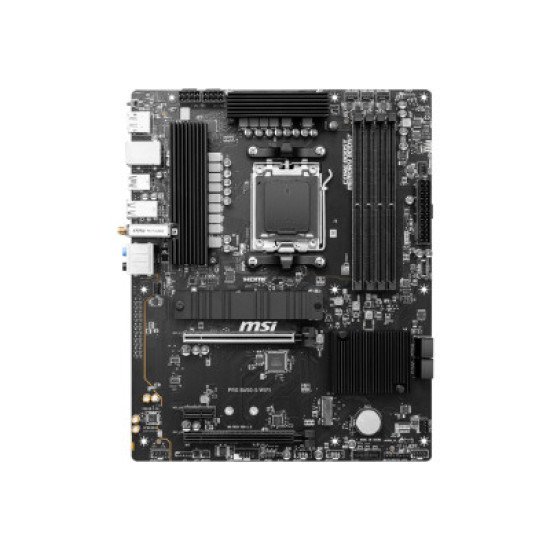

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

-12 %

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard

Offer Price: 19,300৳
Price: 21,900৳
Stock: In Stock
Brand: MSI
Model: PRO B650-S WIFI
Product Code: 812599

Based on 0 reviews. - Write a review

19,300৳

21,900৳

Ex Tax: 19,300৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7200+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN with Wi-Fi 6E Solution

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Maximum Memory	192GB
Slots	4x UDIMM
Supported Memory	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Type	DDR5
Graphics Specifications
Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
Audio	Audio Connectors
Display Port	1 x DisplayPort
HDMI	1 x HDMI

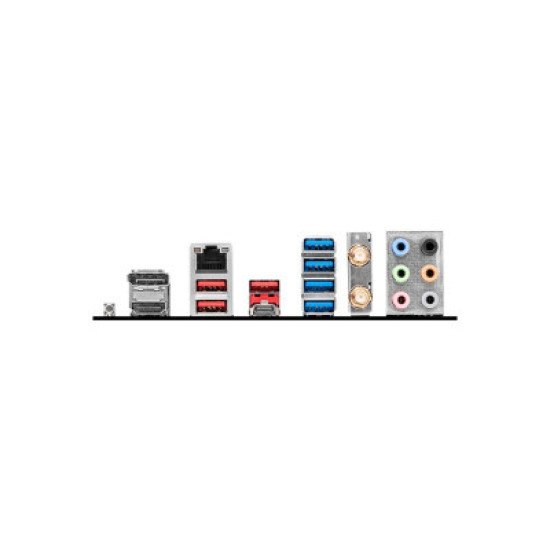

Internal I/O Ports	INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
RAID	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

Description

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard – Power, Speed, and Reliability

The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is engineered for uncompromising performance, supporting the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. Designed for gamers, creators, and professionals, this motherboard delivers exceptional speed, stability, and durability with DDR5 support, advanced thermal solutions, and next-gen connectivity.

Key Features

Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors
Dual-channel DDR5 memory up to 7200+ MHz (OC) for blazing-fast performance
12+2 Duet Rail Power System with dual 8-pin CPU connectors for stable overclocking
Core Boost and Memory Boost technologies for optimized performance
Premium thermal design with 7W/mK MOSFET pads and M.2 Shield Frozr
Durable 6-layer PCB with 2oz thickened copper for long-lasting stability
PCIe 4.0 slots and Lightning Gen 4 x4 M.2 for faster storage solutions
USB 3.2 Gen 2x2 ports with up to 20Gbps data transfer speed
2.5G LAN and Wi-Fi 6E for ultra-fast and reliable networking
AUDIO BOOST technology for immersive, studio-grade sound quality

This motherboard is the perfect choice for gaming rigs, workstation PCs, and high-performance desktop builds.

FAQ

Q1: Which CPUs are supported by MSI PRO B650-S WIFI?
A1: It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with AM5 socket.

Q2: What type of RAM is compatible?
A2: It supports DDR5 memory up to 128GB with speeds up to 7200+ MHz (OC).

Q3: Does it support overclocking?
A3: Yes, with Core Boost, Memory Boost, and a 12+2 Duet Rail Power System, it is optimized for stable overclocking.

Q4: How does it handle cooling for high-performance builds?
A4: The motherboard includes 7W/mK MOSFET thermal pads, M.2 Shield Frozr, and an extended heatsink for efficient heat dissipation.

Q5: What networking options does it offer?
A5: It comes with 2.5G LAN and Wi-Fi 6E, ensuring a fast, reliable, and secure network connection.

Q6: Is it good for gaming?
A6: Yes, it is designed for high-end gaming with PCIe 4.0 slots, high-speed DDR5, Audio Boost for immersive sound, and robust power delivery.
