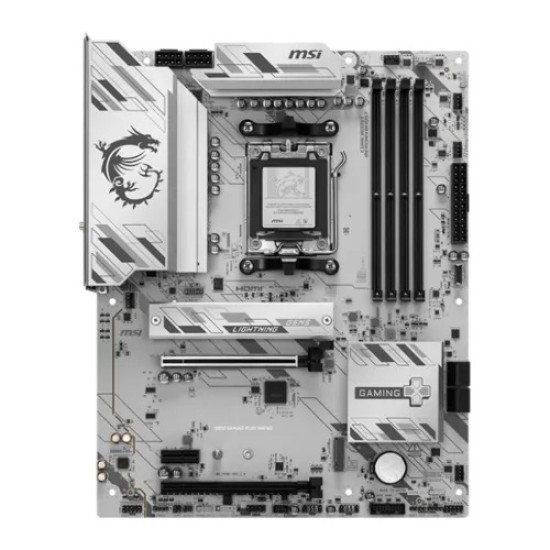

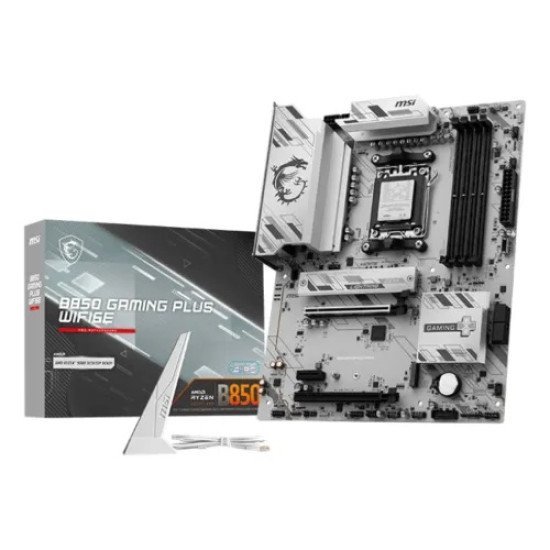

MSI B850 GAMING PLUS WIFI6E AM5 mATX Motherboard

-9 %

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

Offer Price: 28,999৳
Price: 31,899৳
Stock: In Stock
Brand: MSI
Model: B850 GAMING PLUS WIFI6E
Product Code: 906616

Based on 0 reviews. - Write a review

28,999৳

31,899৳

Ex Tax: 28,999৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5, Up to 8200 (OC) MT/s, Max. 256GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

View more details

For further queries, please call 01999-913558

Specification

Basic Information
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory Specifications
Maximum Memory	256GB
Slots	4 x UDIMM
Supported Memory	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
Audio	1x Front Audio (JAUD)
Display Port	1x DisplayPort 1.4
HDMI	1x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s)	Realtek 8125D 2.5G LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

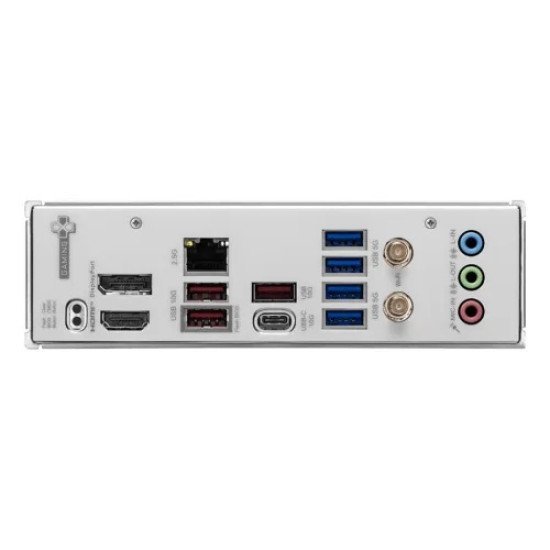

USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Wireless Communication module	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Warranty	3 years

Description

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is the perfect choice for gamers, streamers, and content creators who need powerful performance in a compact build. With the AMD B850 chipset, support for the latest AMD Ryzen 9000, 8000, and 7000 Series Processors, and advanced features like Wi-Fi 6E and PCIe 5.0, this motherboard is engineered for speed, stability, and reliability.

Key Features:

Supports Latest AMD Ryzen Processors
Compatible with AMD Ryzen 9000, 8000, and 7000 Series CPUs with AM5 socket, delivering unmatched processing power for gaming and multitasking.
High-Speed DDR5 Memory
Comes with four DDR5 slots supporting up to 256GB RAM and speeds up to 8200+ MT/s (OC), with dual-channel mode, AMD EXPO, and JEDEC standards.
Ultra-Fast PCIe & Storage Options
Two M.2 slots for NVMe SSDs (M2_1: PCIe 5.0 x4, M2_2: PCIe 4.0 x4) and four SATA 6G ports with RAID 0/1/10 support ensure blazing-fast storage performance.
Advanced Graphics Support
Features HDMI 2.1 and DisplayPort 1.4 outputs, capable of up to 4K at 60Hz for smooth visuals and high-quality display.
Next-Gen Connectivity
Built-in Wi-Fi 6E for stable wireless performance across 2.4GHz, 5GHz, and 6GHz bands, paired with Realtek 8125D 2.5G LAN for seamless online gaming and fast data transfers.
Expansion and Customization
Includes one PCIe x16 slot (PCIe 4.0 from CPU) and two PCIe x1 slots for adding GPUs, capture cards, or sound cards. Also features RGB and fan headers for personalized builds.
Enhanced Audio
Integrated with Realtek ALC897 7.1-Channel HD Audio codec for premium sound, ideal for gaming and streaming setups.
Future-Proof I/O Ports
Offers USB 10Gbps Type-A and Type-C (rear and front), USB 5Gbps, USB 2.0 ports, TPM 2.0 support, and multiple cooling headers.

Why Choose the MSI B850M GAMING PLUS WIFI6E?

This motherboard is built for gamers and creators who need powerful performance, ultra-fast connectivity, and future-ready features. The compact mATX form factor makes it a versatile choice for building high-performance PCs without compromise.

FAQ

Q1: Which processors are supported by the MSI B850M GAMING PLUS WIFI6E?
A: It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with Socket AM5.

Q2: Does this motherboard support DDR5 memory?
A: Yes, it supports DDR5 RAM up to 256GB and speeds up to 8200+ MT/s (OC).

Q3: Can I use PCIe 5.0 SSDs with this motherboard?
A: Yes, the first M.2 slot (M2_1) supports PCIe 5.0 x4 for next-gen NVMe SSDs.

Q4: Does it have built-in Wi-Fi
A: Yes, it comes with Wi-Fi 6E along with 2.5G LAN for both wireless and wired high-speed networking.

Q5: Is this motherboard suitable for gaming and streaming?
A: Absolutely. With support for high-speed DDR5, PCIe 5.0, premium audio, and ultra-fast networking, it is ideal for gaming, streaming, and content creation.

Q6: What display outputs are available?
A: It has HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 4K 60Hz.
