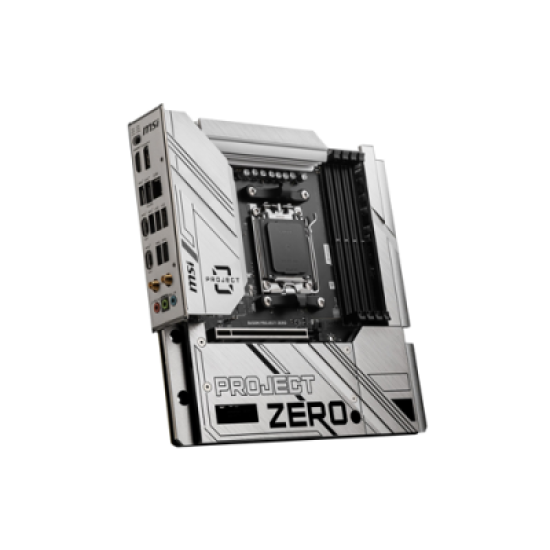

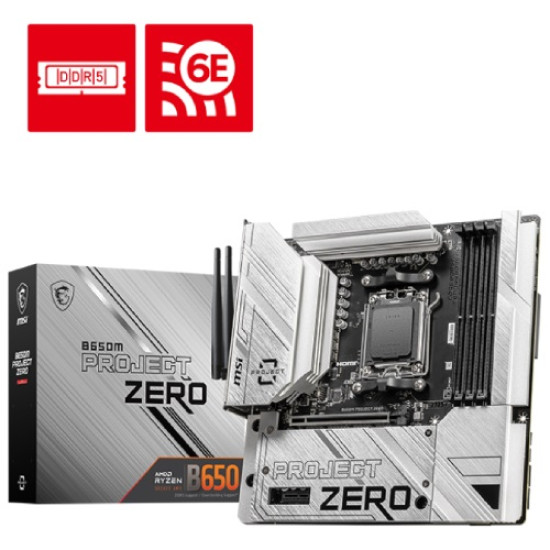

MSI B650M Project Zero AM5 Micro-ATX Motherboard

-5 %

MSI B650M Project Zero AM5 Micro-ATX Motherboard

Offer Price: 24,999৳
Price: 26,200৳
Stock: In Stock
Brand: MSI
Model: B850M GAMING PLUS WIFI6E
Product Code: 813043

Based on 0 reviews. - Write a review

24,999৳

26,200৳

Ex Tax: 24,999৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 7600+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E

View more details

For further queries, please call 01999-913556

Specification

Basic Information
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
M.2 Socket	2x M.2
PCI	1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	128GB
Slots	4
Supported Memory	7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
Audio	Audio Connectors
Display Port	1x DisplayPort
HDMI	1x HDMI

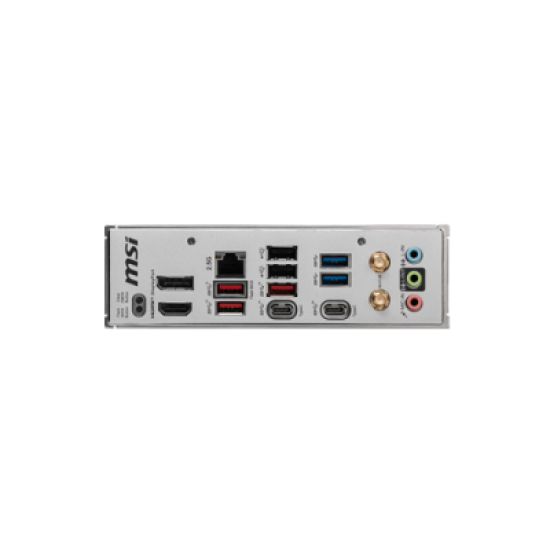

Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C)
LAN Port (s)	Realtek 8125D 2.5G LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Warranty Information
Warranty	3 years

Description

MSI B650M Project Zero AM5 Micro-ATX Motherboard

The MSI B650M Project Zero AM5 Micro-ATX Motherboard delivers performance, stability, and future-ready compatibility for gamers, content creators, and professionals. Designed with the AMD B650 chipset, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. Packed with DDR5 memory support up to 7600+ MHz, PCIe 4.0 expansion, dual M.2 slots, and Wi-Fi 6E, this motherboard is built to power next-gen desktop setups.

Key Features:

Supports Latest AMD Ryzen AM5 CPUs
Compatible with Ryzen 9000, 8000, and 7000 Series processors, offering excellent upgrade potential.
DDR5 Memory Performance
Four DIMM slots support up to 128GB DDR5 with speeds up to 7600+ MHz (OC), enabling high-speed multitasking and gaming performance.
Dual PCIe Expansion
One PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot ensure flexible GPU and expansion card options.
Fast Storage with RAID Support
Two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports with RAID 0/1/10 support for lightning-fast and secure storage solutions.
Next-Gen Connectivity
USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen1/Gen2 ports, HDMI 2.1, and DisplayPort 1.4 for high-speed data transfer and 4K visuals.
Seamless Networking
Built-in Wi-Fi 6E and Bluetooth 5.3 for stable wireless performance, alongside Realtek 2.5G LAN for ultra-fast wired connections.
Premium 7.1-Channel Audio
Realtek ALC897 codec delivers immersive, high-definition audio for gaming and entertainment.
RGB & Cooling Customization
Addressable RGB headers, multiple fan connectors, and water pump fan support for full customization and stable cooling.

Why Choose the MSI B650M Project Zero AM5?

This motherboard is built for high-performance PC builds that demand speed, connectivity, and long-term upgrade paths. With advanced DDR5 support, PCIe 4.0, Wi-Fi 6E, and customizable cooling, it’s the ideal choice for modern gaming rigs and professional setups.

MSI B650M Project Zero Review

FAQ

Q1: Which processors are compatible with the MSI B650M Project Zero?
A: It supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with AM5 socket.

Q2: Does this motherboard support DDR5 RAM?
A: Yes, it supports up to 128GB DDR5 memory with speeds up to 7600+ MHz (OC).

Q3: Can I use NVMe SSDs on this motherboard?
A: Yes, it has two PCIe 4.0 M.2 slots for high-speed NVMe SSDs.

Q4: Does it come with built-in Wi-Fi?
A: Yes, the board has integrated Wi-Fi 6E and Bluetooth 5.3.

Q5: What display outputs are available?
A: It features HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution at 60Hz.

Q6: Is this good for gaming and streaming?
A: Absolutely. With DDR5, Wi-Fi 6E, 2.5G LAN, and 7.1 audio, it’s perfect for gaming, streaming, and multitasking.
