Gigabyte Z690 AORUS ELITE 14th Gen ATX Motherboard

-6 %

Gigabyte Z690 AORUS ELITE 14th Gen ATX Motherboard

Offer Price: 32,500৳
Price: 34,650৳
Stock: In Stock
Brand: Gigabyte
Model: Z690 AORUS ELITE
Product Code: 845825

Based on 0 reviews. - Write a review

32,500৳

34,650৳

Ex Tax: 32,500৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported Memory: Dual Channel Non-ECC, DDR5, 4 DIMMs
Fast 2.5GbE LAN with Bandwidth Management
DDR5 XTREME MEMORY Design ; LGA1700 socket

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	supporting up to 128 GB
Slots	4 x DIMM
Supported Memory	Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Audio	Realtek ALC1220-VB CODEC The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

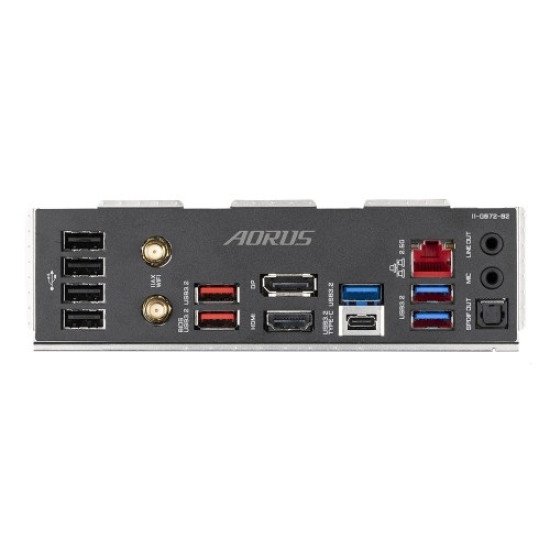

Internal I/O Ports	Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. Back Panel Connectors 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks I/O Controller: iTE I/O Controller Chip
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Special Features	Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

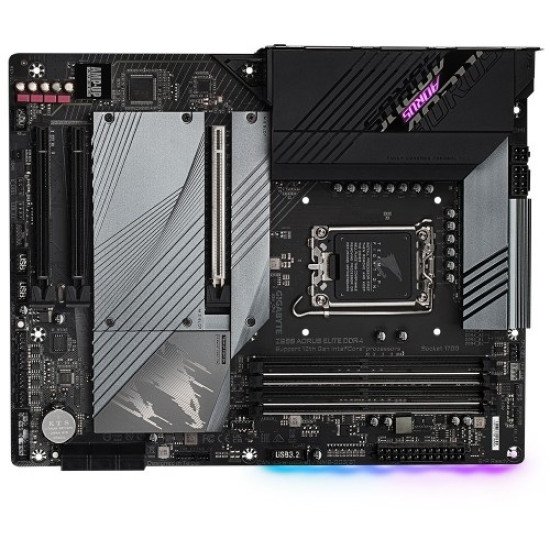

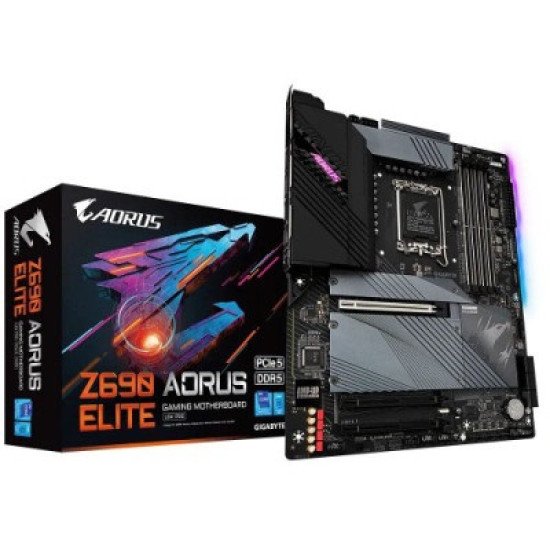

Gigabyte Z690 AORUS ELITE 14th Gen ATX Motherboard

The Gigabyte Z690 AORUS ELITE 14th Gen ATX Motherboard is designed for gamers, creators, and high-end PC builders who want powerful performance and future-ready technology. Featuring the advanced Intel Z690 Express chipset and support for 14th, 13th & 12th Gen Intel Core processors, this motherboard delivers exceptional speed, stability, and upgrade flexibility.

With support for DDR5 RAM, PCIe 5.0 GPU, and multiple NVMe M.2 storage slots, your system gets faster boot times, stronger multitasking, and smoother gaming. Its enhanced cooling design, RGB Fusion lighting, and premium build make it an excellent choice for high-performance PC setups in Bangladesh.

If you're planning a new build or upgrading your current PC, the Z690 AORUS ELITE offers an outstanding balance of performance and value in Dhaka and across Bangladesh.

Key Features

CPU Support Intel 14th/13th/12th Gen Core, Pentium Gold & Celeron (LGA1700)
Chipset Intel Z690 Express
Memory Support DDR5 up to 5600+ MHz (OC), Dual-channel
Graphics Support PCIe 5.0 x16 slot for next-gen GPUs
Storage Multiple PCIe 4.0 M.2 NVMe SSD slots
Networking 2.5GbE LAN (Wi-Fi ready depending on version)
USB Connectivity Latest USB Type-C & multiple high-speed ports
Cooling Advanced heatsinks & Smart Fan 6 technology
Aesthetics RGB Fusion lighting with customizable effects
Durability PCIe Ultra Durable Armor + High-quality components

FAQs

Q1: Does this motherboard support Intel 14th Gen CPUs?

Yes! It fully supports Intel 14th Gen processors with LGA1700 socket.

Q2: Can I install DDR4 RAM on this motherboard?

No, this model supports only DDR5 memory.

Q3: Is it good for gaming in Bangladesh?

Absolutely — it supports PCIe 5.0 GPUs and offers fast performance for modern AAA games.

Q4: Does it support overclocking?

Yes, CPU and memory overclocking are supported thanks to the Z690 chipset.

Q5: What is the price in Bangladesh?

Prices vary by shop and stock. If you want, I can help check the latest price in Dhaka or Bangladesh from trusted retailers.
