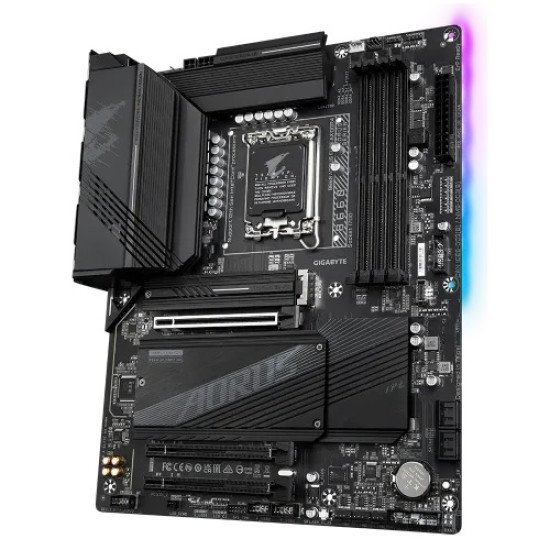

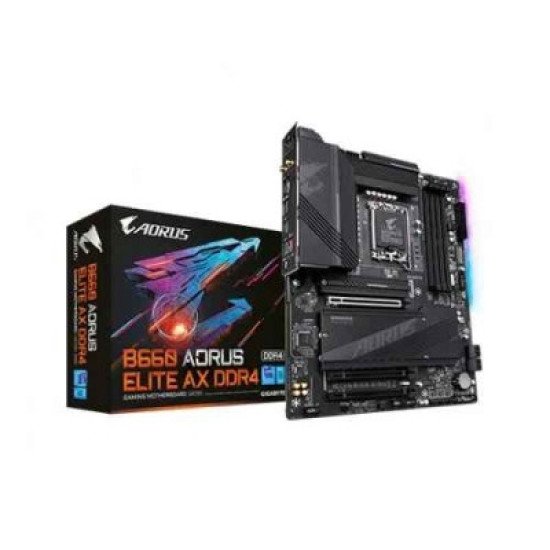

Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

-6 %

Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

Offer Price: 23,000৳
Price: 24,500৳
Stock: In Stock
Brand: Gigabyte
Model: B660 AORUS ELITE AX DDR4
Product Code: 845270

Based on 0 reviews. - Write a review

23,000৳

24,500৳

Ex Tax: 23,000৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold, and Celeron L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	up to 128 GB (32 GB single DIMM capacity) of system memory
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Type	DDR4
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Connector & Ports
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Display Port	1 x DisplayPort
HDMI	1 x HDMI 2.0 port
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

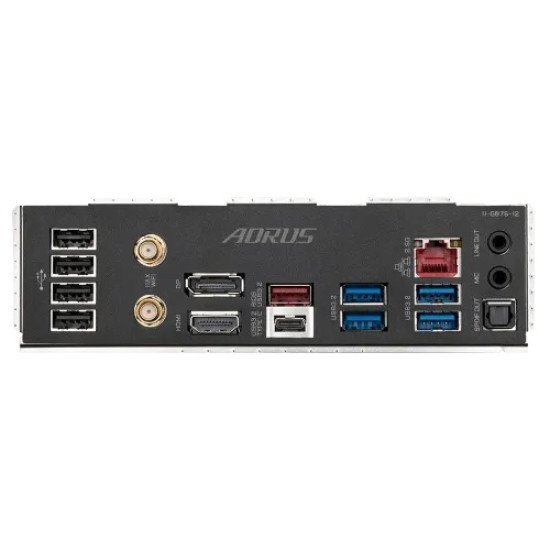

USB (s)	Chipset: 2 x USB Type-C ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports, available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

The Gigabyte B660 AORUS ELITE AX DDR4 ATX Motherboard is a top-tier choice for gamers and power users in Bangladesh. Built on the Intel B660 chipset, it supports 14th, 13th, and 12th Gen Intel Core processors, offering strong performance for gaming, streaming, and demanding workloads.

With DDR4 memory support, PCIe 4.0 compatibility, dual M.2 NVMe slots, and built-in Wi-Fi 6 + Bluetooth, this motherboard ensures fast connectivity and seamless multitasking. The advanced cooling system and high-quality components deliver long-lasting stability for intensive gaming sessions.

If you're searching for the best Gigabyte B660 AORUS ELITE AX DDR4 price in Dhaka or across Bangladesh, this model is a future-ready option for a high-performance PC build.

Key Features

Supports Intel 14th/13th/12th Gen processors (LGA1700)
Wi-Fi 6 + Bluetooth — fast and stable wireless connection
PCIe 4.0 x16 slot for high-end gaming graphics cards
Dual M.2 NVMe slots supporting ultra-fast SSD storage
DDR4 RAM support for affordable upgrades
Smart Fan 6 advanced cooling for better thermals
2.5GbE LAN for smoother online gaming
USB 3.2 Gen2 ports for high-speed device connectivity
AORUS-level RGB Fusion lighting support
High-performance audio for immersive gameplay
3-year official warranty in Bangladesh

FAQs

Q1: What processor generation does this motherboard support?

Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron CPUs.

Q2: Does this model come with built-in Wi-Fi?

Yes — it features Wi-Fi 6 and Bluetooth built-in.

Q3: Can I use DDR5 RAM with this board?

No — it supports DDR4 memory only.

Q4: Is this good for high-end gaming?

Absolutely — great for competitive gaming with PCIe 4.0 GPU support and fast connectivity.

Q5: What is the Gigabyte B660 AORUS ELITE AX DDR4 price in Bangladesh?

Prices vary — check authorized tech stores for the latest price in Dhaka or online.
