Gigabyte B660 GAMING X AX DDR4 12th Gen ATX Motherboard

-6 %

Gigabyte B660 GAMING X AX DDR4 12th Gen ATX Motherboard

Offer Price: 20,200৳
Price: 21,450৳
Stock: In Stock
Brand: Gigabyte
Model: B660 GAMING X AX DDR4
Product Code: 845307

Based on 0 reviews. - Write a review

20,200৳

21,450৳

Ex Tax: 20,200৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16+1+2 Digital VRM Design with 60A Power Stage
Fast 2.5GbE LAN with Bandwidth Management

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with the CPU
Chipset	Intel Z690 Express Chipset
Expansion Slots
PCI	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Memory Specifications
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity)
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI	1 x HDMI port
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

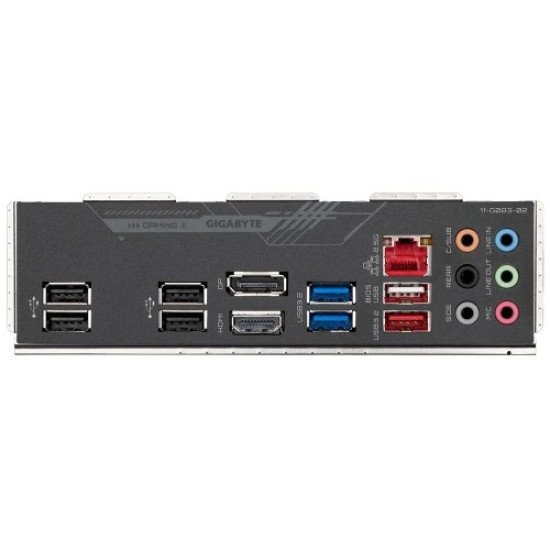

USB (s)	Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	2 years

Description

Gigabyte B660 GAMING X AX DDR4 12th Gen ATX Motherboard

The Gigabyte B660 GAMING X AX DDR4 ATX Motherboard is a high-performance choice for gamers and creators in Bangladesh. Built with the Intel B660 chipset, it supports 14th, 13th, and 12th Gen Intel Core processors using the LGA1700 socket. Featuring Wi-Fi 6, Bluetooth, PCIe 4.0, and high-speed DDR4 memory support up to 5333MHz (OC), this motherboard ensures fast responsiveness and improved efficiency for all workloads.

With dual M.2 NVMe slots, advanced power delivery design, and rich connectivity like HDMI 2.1 and DisplayPort, it’s ideal for smooth gameplay and content creation. If you're searching for strong performance with great value, the Gigabyte B660 Gaming X AX DDR4 price in Dhaka makes it a popular choice for future-ready gaming builds in Bangladesh.

Key Features

Compatible with Intel 14th/13th/12th Gen processors (LGA1700)
Intel B660 Express Chipset for reliable performance
Wi-Fi 6 + Bluetooth support — strong wireless connectivity
DDR4 RAM up to 5333MHz (OC) — fast multitasking
PCIe 4.0 x16 for high-end graphics cards
Dual M.2 NVMe slots for high-speed SSDs
USB 3.2 Gen2 ports for faster transfers
HDMI 2.1 & DisplayPort support for vivid display output
High-quality ALC1220-VB Audio Codec for enhanced sound
ATX form factor — excellent expansion options
3-year official warranty in Bangladesh

FAQs

Q1: What CPUs are supported?

It works with 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors.

Q2: Does it come with built-in Wi-Fi?

Yes — it includes Intel Wi-Fi 6 and Bluetooth.

Q3: Does this board support DDR5?

No — this model supports DDR4 memory only.

Q4: What is the Gigabyte B660 GAMING X AX DDR4 price in Bangladesh?

Prices vary based on retailer and stock — check reputable stores for the latest price in Dhaka or online.

Q5: Is this good for gaming PC builds?

Definitely! It supports fast GPUs, high-speed RAM, and stable power delivery for smooth gaming performance.
