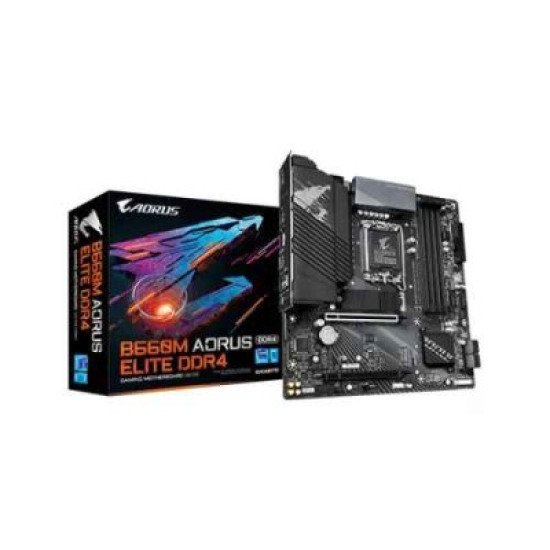

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

-7 %

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

Offer Price: 20,300৳
Price: 21,810৳
Stock: In Stock
Brand: Gigabyte
Model: B660M AORUS ELITE DDR4
Product Code: 845344

Based on 0 reviews. - Write a review

20,300৳

21,810৳

Ex Tax: 20,300৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

LGA1700 socket support 14th, 13th & 12th Gen Intel Series
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
Blazing Fast 2.5GbE LAN

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold and Celeron L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	128 GB
Slots	4 x DIMM
Supported Memory	5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
Display Port	1 x DisplayPort
HDMI	1 x HDMI 2.0 port
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte B660M AORUS ELITE DDR4 12th Gen Micro ATX Motherboard

The Gigabyte B660M AORUS ELITE DDR4 Micro ATX Motherboard is built for performance-focused gamers and creators in Bangladesh. Supporting 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket, it uses the Intel B660 chipset for fast and efficient computing power. Equipped with DDR4 memory support up to 128GB, advanced power delivery, and PCIe 4.0 GPU compatibility, this board ensures smooth gaming and multitasking.

With dual M.2 NVMe slots, high-speed USB connectivity, and customizable RGB Fusion lighting, this motherboard gives users the perfect balance of speed, style, and durability. If you're comparing Gigabyte B660M AORUS ELITE DDR4 price in Dhaka or across Bangladesh, this model stands out as a top choice for building a powerful and future-ready gaming PC.

Key Features

Supports Intel 14th/13th/12th Gen CPUs (LGA1700 socket)
Intel B660 chipset — optimized performance for gaming
4× DDR4 RAM slots with support up to 128GB
PCIe 4.0 x16 for high-speed graphics cards
2× M.2 NVMe SSD slots for ultra-fast storage
Enhanced VRM design for superior stability under load
USB 3.2 Gen ports for high-speed transfer
High-quality Realtek audio for clear and immersive sound
RGB Fusion lighting support for visual customization
Solid Micro ATX form factor — perfect for compact gaming builds
3-year official warranty in Bangladesh

FAQs

Q1: Is this motherboard suitable for gaming?

Yes — with PCIe 4.0 GPU support and enhanced VRM cooling, it’s ideal for competitive gaming.

Q2: Does it support DDR5 RAM?

No — this model supports DDR4 memory only.

Q3: What processors are supported?

Supports Intel 14th, 13th & 12th Gen Core, Pentium Gold, and Celeron processors.

Q4: What is the Gigabyte B660M AORUS ELITE DDR4 price in Bangladesh?

Pricing varies by retailer — you can check popular tech stores for the latest price in Dhaka or online.

Q5: Does this board include Wi-Fi?

This specific model does not have built-in Wi-Fi, but supports Wi-Fi expansion cards.
