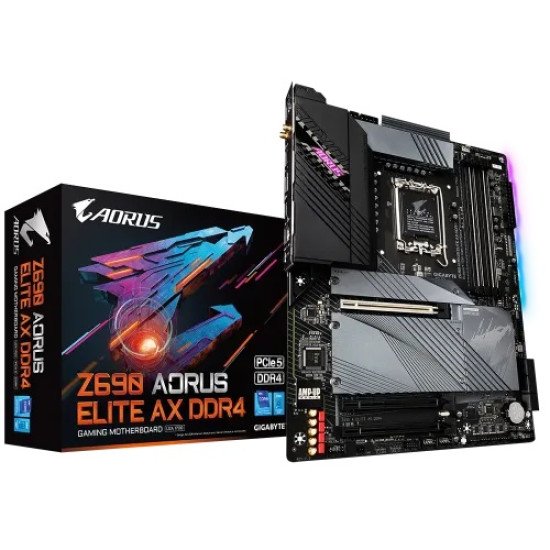

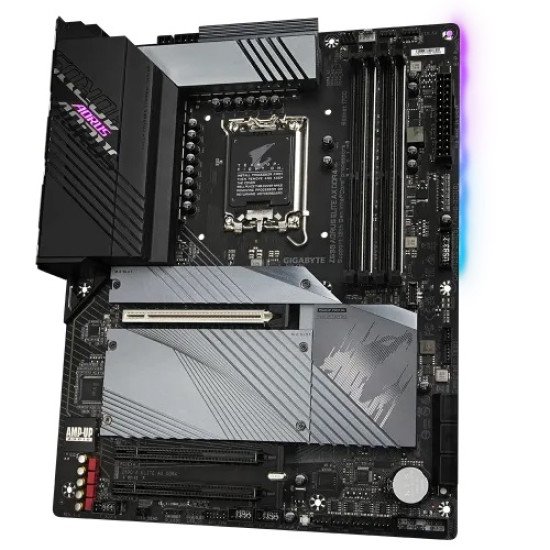

Gigabyte Z690 AORUS ELITE AX DDR4 14th Gen ATX Motherboard

-7 %

Gigabyte Z690 AORUS ELITE AX DDR4 14th Gen ATX Motherboard

Offer Price: 30,800৳
Price: 33,100৳
Stock: In Stock
Brand: Gigabyte
Model: Z690 AORUS ELITE AX DDR4
Product Code: 845714

Based on 0 reviews. - Write a review

30,800৳

33,100৳

Ex Tax: 30,800৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: Dual Channel DDR4, 4 DIMMs
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: Onboard WIFI 6 802.11ax 2T2R & BT5

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core, Pentium Gold, and Celeron Processors L3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
Audio	2 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	Up to 128 GB
Slots	4 x DDR DIMM sockets
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.) / 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Connector & Ports
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

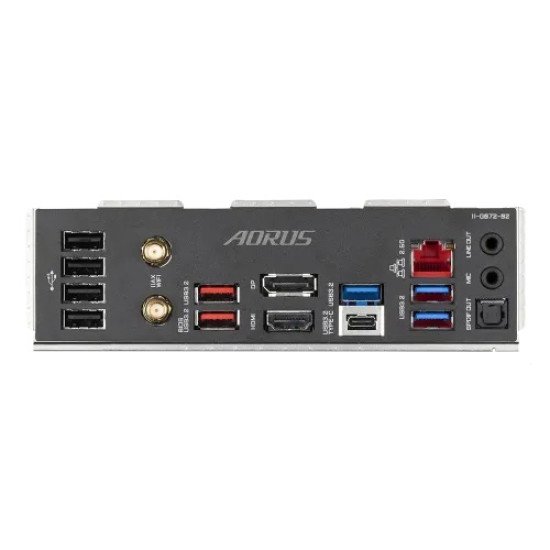

USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte Z690 AORUS ELITE AX DDR4

The Gigabyte Z690 AORUS ELITE AX DDR4 ATX Motherboard is a premium choice for high-performance PC builds in Bangladesh. Powered by the Intel Z690 chipset with LGA1700 socket, it supports Intel 14th, 13th, and 12th Gen processors, delivering incredible performance for gaming, streaming, and creative workloads.

Supporting DDR4 memory up to 5333MHz (OC), PCIe 5.0 graphics, and PCIe 4.0 NVMe SSDs, this board ensures fast data speeds and future-proof upgrade paths. With Intel Wi-Fi 6, advanced cooling design, and durable build quality, the AORUS ELITE AX DDR4 is ideal for gamers and professional PC users.

If you’re building a powerful rig, the Gigabyte Z690 AORUS ELITE AX DDR4 price in Bangladesh offers excellent value with high-end features and strong stability.

Key Features

Processor Support Intel 14th / 13th / 12th Gen
Chipset Intel Z690
Memory DDR4 up to 5333MHz (OC), Dual Channel
Graphics Support PCIe 5.0 slot for next-gen GPUs
Storage Support PCIe 4.0 M.2 NVMe SSD support
Networking Intel Wi-Fi 6 + High-speed LAN
Audio High-definition audio system
Cooling Advanced heat dissipation design
Form Factor ATX — compatible with most gaming cases
Ideal For Gaming builds & high-performance PCs

FAQs

Q1: What is the Gigabyte Z690 AORUS ELITE AX DDR4 price in Bangladesh?

Pricing varies depending on stock and store. Check trusted shops for the latest price in Dhaka and online deals.

Q2: Can I use DDR5 RAM with this motherboard?

No — this model supports DDR4 only.

Q3: Is this a good choice for a gaming PC?

Yes! PCIe 5.0 and high memory frequency support make it great for modern gaming.

Q4: Does it support Wi-Fi?

Yes — it includes Intel Wi-Fi 6 for strong wireless connectivity.

Q5: Can it handle overclocking?

Absolutely — designed with robust VRMs and enhanced cooling solutions.
