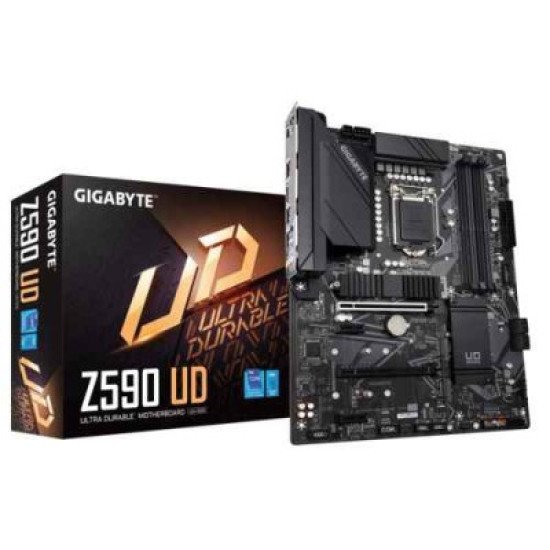

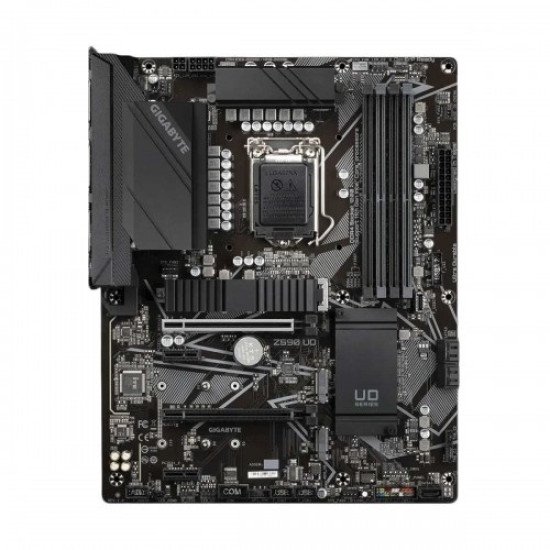

Gigabyte Z590 UD Intel 11th Gen ATX Motherboard

-6 %

Gigabyte Z590 UD Intel 11th Gen ATX Motherboard

Offer Price: 19,800৳
Price: 21,160৳
Stock: In Stock
Brand: Gigabyte
Model: Z590 UD
Product Code: 845233

Based on 0 reviews. - Write a review

19,800৳

21,160৳

Ex Tax: 19,800৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports 11th and 10th Gen Intel Core Processors
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
Dual-Channel DDR4, 4 DIMMs
Onboard Intel 802.11ac Wireless & BT

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
Audio	3 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory Specifications
Maximum Memory	128 GB (32 GB single DIMM capacity)
Slots	4 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	Dual-channel memory architecture
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Audio	Realtek audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 4 x system fan headers 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 1 x USB Type-C header, with USB 3.2 Gen 1 support 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 5 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

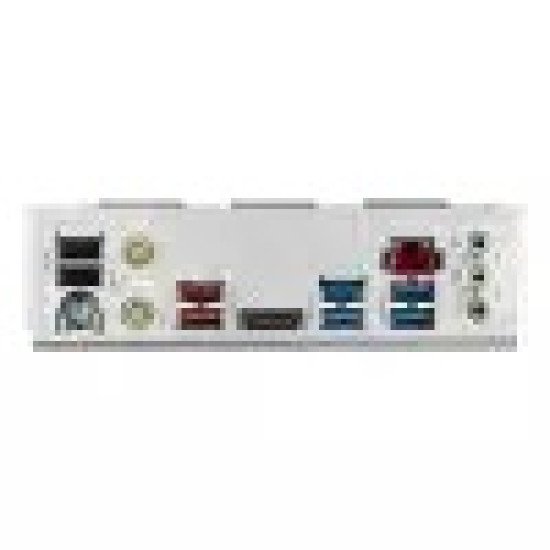

USB (s)	Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte Z590 UD Intel 11th Gen ATX Motherboard

The Gigabyte Z590 UD ATX Motherboard is engineered for users who demand high performance, stability, and next-gen connectivity. It supports 11th and 10th Gen Intel Core processors, making it ideal for gaming, productivity, and professional workloads. With the powerful Intel Z590 Express chipset, PCIe 4.0 support, advanced cooling features, and high-speed storage options including NVMe SSDs, this motherboard ensures exceptional system responsiveness.

Designed for Bangladesh PC builders seeking premium performance on a reasonable budget, the Gigabyte Z590 UD offers dependable quality and future-ready expandability. For those searching for the best Gigabyte Z590 UD price in Dhaka or across Bangladesh, this model remains a popular pick for long-term PC upgrades and custom gaming builds.

Key Features

Supports Intel 11th & 10th Gen CPUs (LGA1200 socket)
Intel Z590 Express Chipset for advanced performance
PCIe 4.0 x16 slot for high-end graphics cards
Dual NVMe M.2 slots for ultra-fast SSD storage
4 x DDR4 DIMM slots — expandable high-speed memory support
Robust 12+1 phase power design — stable performance under load
USB 3.2 Gen 2 ports for faster data transfer
Smart Fan 6 technology — optimized cooling
High-quality audio capacitors for immersive sound
Durable, reinforced components for long-lasting use
3-year official warranty in Bangladesh

FAQs

Q1: What processor generation does this board support?

It works with Intel 11th Gen Rocket Lake and 10th Gen Comet Lake processors.

Q2: Does it support PCIe 4.0 GPUs?

Yes, PCIe 4.0 is supported when using an 11th Gen CPU.

Q3: Does it include Wi-Fi?

This model does not include built-in Wi-Fi. You can use a Wi-Fi expansion card if needed.

Q4: What is the Gigabyte Z590 UD price in Bangladesh?

Pricing varies by shop and availability — you can check top PC hardware stores for the latest price in Dhaka or other cities.

Q5: How many RAM slots are included?

It comes with 4 DDR4 memory slots supporting high-speed dual-channel RAM.
