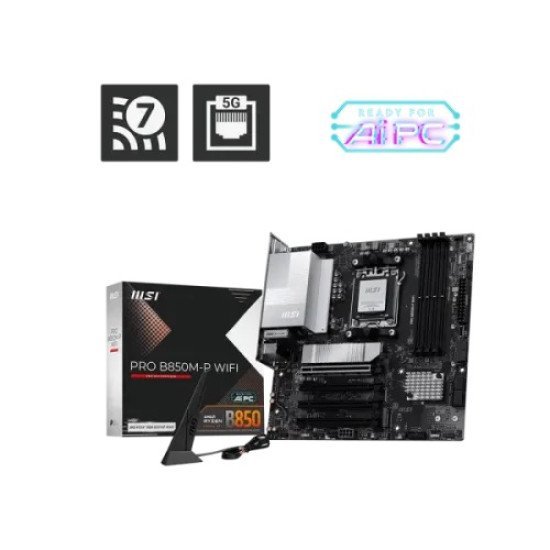

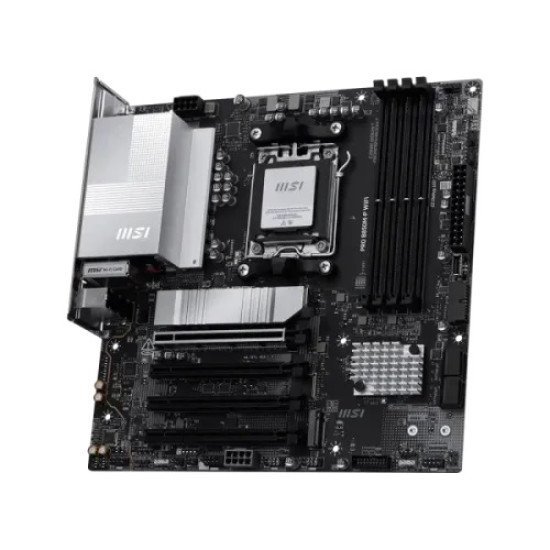

MSI PRO B850M-P WIFI AM5 mATX Motherboard

-9 %

MSI PRO B850M-P WIFI AM5 mATX Motherboard

Offer Price: 23,200৳
Price: 25,610৳
Stock: In Stock
Brand: MSI
Model: PRO B850M-P WIFI
Product Code: 881937

Based on 0 reviews. - Write a review

23,200৳

25,610৳

Ex Tax: 23,200৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported: AMD Ryzen 9000/8000/7000 Series for Socket AM5
Supported RAM: 4x DDR5 UDIMM, Up to 8200 (OC) Mhz
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	Flash BIOS Button
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
PCI	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Memory Specifications
Maximum Memory	256GB
Slots	4x UDIMM
Supported Memory	Memory Support 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
Audio	1x Front Audio (JAUD)
Display Port	1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
HDMI	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s)	Realtek 8126VB 5G LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

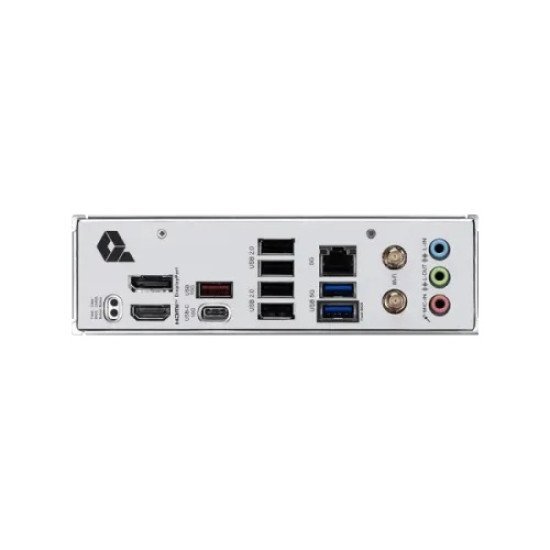

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Others
Bundled Software	Support for Windows 11 64-bit
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI PRO B850M-P WIFI AM5 mATX Motherboard

The MSI PRO B850M-P WIFI AM5 mATX Motherboard is a powerful and future-ready solution for users looking to build a compact yet high-performance PC. Designed for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard combines cutting-edge DDR5 support, PCIe 5.0 expansion, and next-generation Wi-Fi 7 connectivity—making it ideal for gaming, content creation, and professional workloads in Bangladesh.

Built on a durable 6-layer PCB with 2oz thickened copper, the board ensures excellent signal integrity and long-term reliability, even under demanding conditions. Its 7+2+1 direct power phase design, enhanced by Core Boost and Memory Boost, delivers stable and efficient power to the CPU and memory, supporting DDR5 speeds of up to 8200+ MT/s (OC).

Thermal performance is handled by MSI’s advanced Frozr Guard cooling solution, featuring extended heatsinks, high-efficiency 7W/mK MOSFET thermal pads, and an optimized chipset heatsink for cooler, quieter operation. DIY builders will appreciate the EZ M.2 Shield Frozr II and tool-less M.2 clips, simplifying installation and upgrades.

Connectivity is a major highlight. With Wi-Fi 7, Realtek 5G LAN, and PCIe 5.0 x16 support, the MSI PRO B850M-P WIFI ensures ultra-fast networking and compatibility with next-generation GPUs and Gen 5 NVMe SSDs. Multiple USB 10Gbps ports, HDMI 2.1, and DisplayPort 1.4 provide excellent versatility for modern setups.

If you are searching for the MSI PRO B850M-P WIFI motherboard price in Bangladesh or price in Dhaka, this model offers outstanding value with premium features tailored for future upgrades.

Key Features

AM5 Socket Support for AMD Ryzen 9000 / 8000 / 7000 Series CPUs

DDR5 Memory Support up to 8200+ MT/s (OC)
7+2+1 Direct Power Phase Design for stable performance
PCIe 5.0 x16 Slot for next-gen graphics cards
PCIe Gen 5 x4 M.2 Support with 3× M.2 slots
Integrated Wi-Fi 7 & Realtek 5G LAN for ultra-fast networking
Frozr Guard Thermal Design with extended heatsinks and premium pads
HDMI 2.1 & DisplayPort 1.4 supporting up to 4K @ 60Hz
USB 10Gbps Type-A & Type-C Ports for high-speed connectivity
Audio Boost with Realtek ALC897 for clear, immersive sound
Tool-less EZ M.2 Shield Frozr II for easy installation
Windows 11 64-bit Ready

Buy MSI PRO B850M-P WIFI AM5 mATX Motherboard from Canvas it.

In Bangladesh, you can get original MSI PRO B850M-P WIFI AM5 mATX Motherboard From Canvas it. We have a large collection of the latest MSI Motherboard to purchase. If you are looking for alternative models, the A520M DS3H AC and B450M DS3H V3 are reliable choices.Order Online Or Visit your Nearest Canvas it Shop to get yours at the lowest price. The MSI PRO B850M-P WIFI AM5 mATX Motherboard comes with a 1-year Warranty.

FAQs

What is the MSI PRO B850M-P WIFI price in Bangladesh?

The price of MSI PRO B850M-P WIFI in Bangladesh may vary depending on stock and retailer. For the latest price in Dhaka, check authorized computer shops or trusted online stores.

Which processors are compatible with this motherboard?

It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

Does this motherboard support DDR5 RAM?

Yes, it supports DDR5 memory with overclocked speeds up to 8200+ MT/s, depending on the RAM and CPU used.

Is Wi-Fi included or do I need an adapter?

Wi-Fi is built-in. The board comes with Wi-Fi 7, so no additional adapter is required.

How many storage options are available?

You get 3× M.2 slots and 4× SATA 6Gb/s ports, with RAID support depending on CPU series.

Is this motherboard good for gaming builds?

Absolutely. With PCIe 5.0, fast DDR5 memory support, strong power delivery, and low-latency networking, it’s an excellent choice for gaming in a compact mATX form factor.
