Gigabyte B450M DS3H V3 DDR4 AMD Motherboard

-9 %

Gigabyte B450M DS3H V3 DDR4 AMD Motherboard

Offer Price: 10,500৳
Price: 11,500৳
Stock: In Stock
Brand: Gigabyte
Model: B450M DS3H V3
Product Code: 850006

Based on 0 reviews. - Write a review

10,500৳

11,500৳

Ex Tax: 10,500৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: B450M DS3H V3
Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen Processors for Socket AM5
Supported RAM: 4 x DDR4, up to 128GB, 3600(O.C.)
Graphics Output: 1 x DVI-D port, 1 x HDMI port
Features: 1 x M.2 Slot, Realtek GbE LAN

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 21.5cm
Supported CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset	AMD B450
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
Memory Specifications
Supported Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Graphics Specifications
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.1 version and HDCP 2.2.(Note)
Connector & Ports
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s)	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) * Actual support may vary by CPU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10

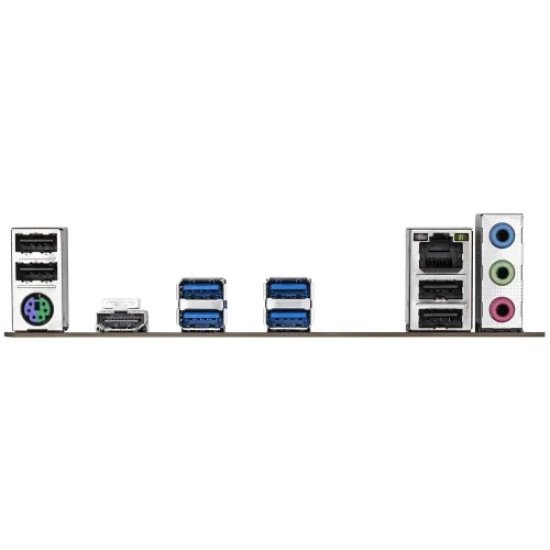

USB (s)	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Warranty Information
Manufacturing Warranty	3 years

Description

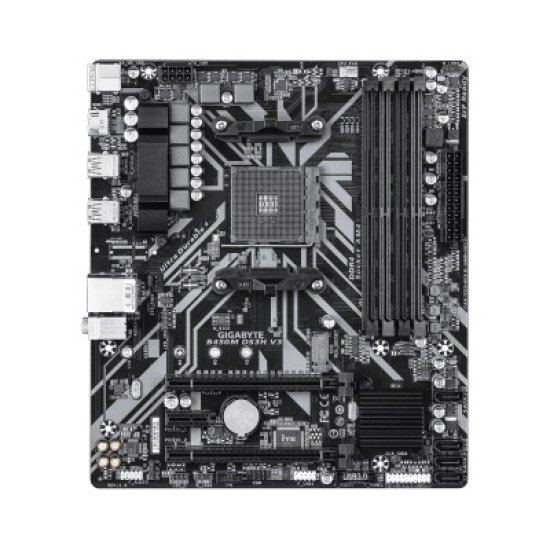

Gigabyte B450M DS3H V3 DDR4 AMD Motherboard

The Gigabyte B450M DS3H V3 DDR4 AMD Motherboard is a reliable and performance-focused Micro ATX board designed for users building a powerful yet affordable Ryzen PC in Bangladesh. Equipped with the AMD B450 chipset, it supports a wide range of processors, including Ryzen 5000 series, 3rd Gen Ryzen CPUs, and older Ryzen models with BIOS support—making it a versatile choice for gaming, content creation, and everyday use.

With features such as dual-channel DDR4 support, high-speed storage options, advanced connectivity, and Gigabyte’s Ultra Durable components, this motherboard offers excellent long-term stability and smooth system performance. For users looking for the best value B450 motherboard price in Dhaka or an affordable AMD board price in Bangladesh, the B450M DS3H V3 stands out as a top contender.

Key Features

Supports AMD Ryzen 5000 & 3rd Gen CPUsCompatible with Ryzen 5000 series (with BIOS update), ensuring strong performance for gaming and professional workloads.
Micro ATX Compact DesignPerfect for modern PC builds in Bangladesh, fitting easily into small and mid-tower cases without sacrificing features.
Dual-Channel DDR4 Memory SupportSupports up to 128GB DDR4, providing excellent multitasking and responsiveness.
High-Speed NVMe M.2 SlotAccelerate your system with fast NVMe SSD support for quicker boot times and improved loading speeds.
Multiple Display OutputsEquipped with HDMI, DVI-D, and VGA ports, allowing flexible multi-monitor setups.
Reliable Ultra Durable™ DesignEnhanced power delivery and high-quality components ensure long-lasting durability, ideal for Bangladesh’s climate and workloads.
Advanced ConnectivityFeatures USB 3.2 Gen1 ports, Realtek LAN, and essential expansion slots for future upgrades.

FAQs

1. What is the Gigabyte B450M DS3H V3 price in Bangladesh?

Prices vary based on seller and availability. Check online shops or local tech markets for the latest B450M DS3H V3 price in Bangladesh.

2. Does it support Ryzen 5000 series?

Yes, it supports Ryzen 5000 processors (may require a BIOS update depending on stock version).

3. How much RAM can it support?

It supports up to 128GB DDR4 in dual-channel configuration.

4. Does it have M.2 support?

Yes, it includes an M.2 slot compatible with NVMe SSDs.

5. Is Micro ATX suitable for small builds?

Absolutely. It fits perfectly in compact PC cases commonly used in Dhaka and throughout Bangladesh.

6. Does it include built-in Wi-Fi?

No, this model does not include Wi-Fi. You can add a separate Wi-Fi card if needed.
