MSI MAG B760M MORTAR WIFI DDR5 12TH & 13TH GEN MOTHERBOARD

-15 %

MSI MAG B760M MORTAR WIFI DDR5 12TH & 13TH GEN MOTHERBOARD

Offer Price: 25,500৳
Price: 30,000৳
Stock: In Stock
Brand: MSI
Model: MAG B760M MORTAR WiFi
Product Code: 844900

Based on 0 reviews. - Write a review

25,500৳

30,000৳

Ex Tax: 25,500৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7000+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2x M.2 slot, Intel Wi-Fi 6E

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Maximum Memory	192GB
Slots	4
Supported Memory	Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Type	DDR5
Graphics Specifications
Graphics	Support HDMITM 2.1 with HDR, the maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz
Connector & Ports
Audio	1x Front Audio (JAUD)
Display Port	2x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

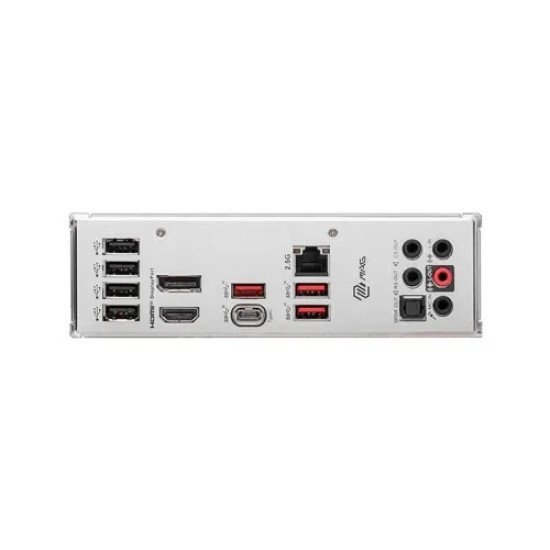

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG B760M MORTAR WIFI DDR5 Motherboard

The MSI MAG B760M MORTAR WIFI DDR5 12th/13th/14th Gen Motherboard is built for gamers and performance-focused PC builders in Bangladesh who want power, connectivity, and durability in a compact Micro-ATX design. Supporting the latest Intel Core processors on the LGA1700 socket, this board provides exceptional stability and next-gen speed for gaming, editing, and multitasking.

With DDR5 memory, PCIe 4.0, and dual M.2 NVMe Gen4 slots, users can enjoy faster boot times and ultra-responsive system performance. Its Extended Heatsink design improves heat dissipation, ensuring consistent performance even during heavy workloads. The built-in Wi-Fi 6 and 2.5G LAN offer blazing-fast networking for online games and streaming.

For Bangladesh gamers looking for value and reliability, the MSI MAG B760M MORTAR WIFI DDR5 price in Bangladesh makes it one of the best options for modern PC builds in Dhaka and beyond.

Key Features

CPU Support: Intel 12th, 13th & 14th Gen processors (LGA1700)
Memory: DDR5 up to 192GB, Dual Channel, higher bandwidth & speed
Networking: Wi-Fi 6 + 2.5Gb Ethernet for fast and stable online gaming
Expansion Slot: PCIe 4.0 x16 for modern GPUs
Storage Support: Dual M.2 PCIe Gen4 + SATA ports for faster data access
Cooling Technology: Extended Heatsink & multiple fan headers for heat control
Display Outputs: HDMI & DisplayPort supporting high-resolution displays
Audio: Premium Audio for cleaner & immersive sound
Form Factor: Micro-ATX – perfect fit for mid-size builds

FAQs

Q1: What is the MSI MAG B760M MORTAR WIFI DDR5 price in Bangladesh?

A: Pricing varies depending on availability and retailer. Check trusted PC stores in Dhaka and online marketplaces across Bangladesh for the latest price.

Q2: Does this motherboard support DDR4 RAM?

A: No, it supports DDR5 only.

Q3: Does it have built-in Wi-Fi?

A: Yes — It includes Wi-Fi 6 and Bluetooth support.

Q4: Is this motherboard good for gaming?

A: Absolutely — strong power delivery, DDR5 performance, and fast networking make it ideal for gaming builds.

Q5: Will it support future Intel processors?

A: It supports up to 14th Gen Intel CPUs, offering great future-proofing for upcoming upgrades.
