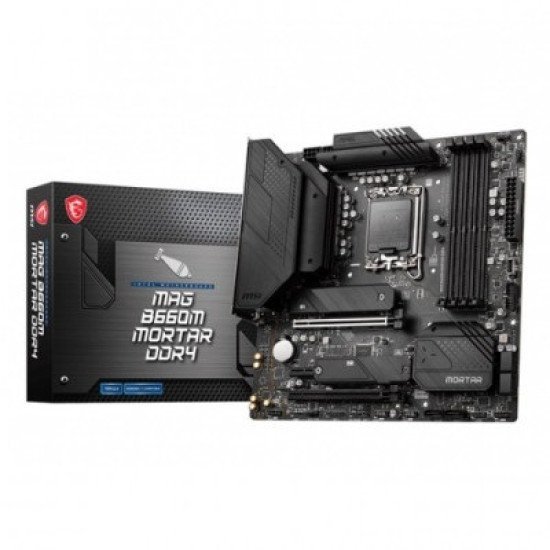

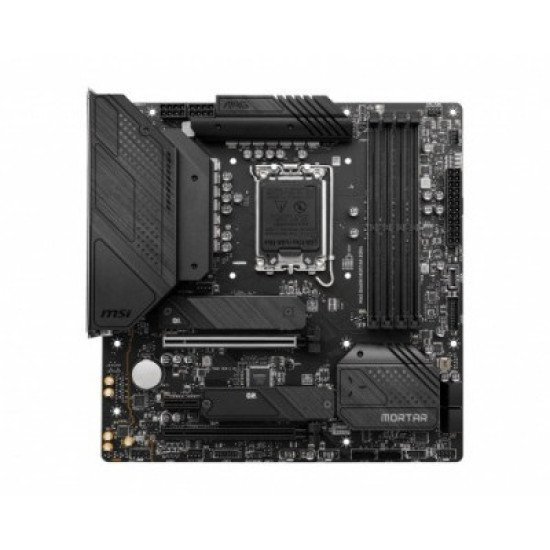

MSI MAG B660M MORTAR DDR4 Micro-ATX Motherboard

-16 %

MSI MAG B660M MORTAR DDR4 Micro-ATX Motherboard

Offer Price: 19,000৳
Price: 22,600৳
Stock: In Stock
Brand: MSI
Model: MAG B660M MORTAR DDR4
Product Code: 844937

Based on 0 reviews. - Write a review

19,000৳

22,600৳

Ex Tax: 19,000৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported Processors: 12th Gen Intel Core,
Supported socket: LGA 1700 socket
Supported Memory: DDR4, up to 4800+(OC) MHz
2.5G LAN and Intel Wi-Fi Solution

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Processor socket LGA1700
Chipset	Intel B660 Chipset
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Memory Specifications
Maximum Memory	support up to 128GB
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Type	DDR4
Graphics Specifications
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Connector & Ports
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Display Port	DisplayPort 1.4 (BACK PANEL PORTS)
HDMI	HDMI 2.1 Port (BACK PANEL PORTS)

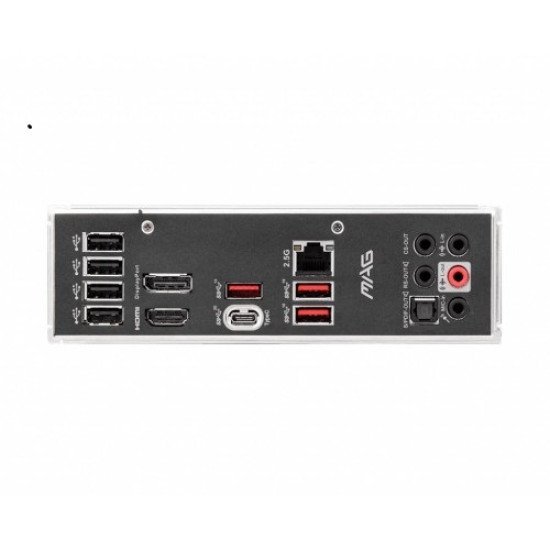

Internal I/O Ports	INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector BACK PANEL PORTS: USB 2.0 Port USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port HD Audio Connectors USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
LAN Port (s)	2.5G LAN Port
Supported Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory
TPM (Trusted Platform Module )	1x TPM module connector
USB (s)	Intel B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Others
Special Features	Supports 2-Way AMD CrossFire Technology
Warranty Information
Manufacturing Warranty	3 years warranty

Description

MSI MAG B660M MORTAR DDR4 Micro-ATX Motherboard

The MSI MAG B660M MORTAR DDR4 Micro-ATX Motherboard is a top-performing and feature-packed motherboard designed for powerful Intel 12th, 13th, and 14th Gen processors on the LGA1700 socket. Built with gamers, enthusiasts, and performance PC builders in mind, it ensures reliable stability with the Intel B660 chipset.

This motherboard supports up to 128GB of DDR4 memory, PCIe 4.0 expansion, and dual M.2 NVMe slots, providing fast data transfer and smooth multitasking. With HDMI 2.1 and DisplayPort 1.4, users can experience crisp 4K visuals in both gaming and professional applications.

If you’re looking for a durable, budget-friendly motherboard with cutting-edge features, the MSI MAG B660M MORTAR DDR4 price in Bangladesh offers excellent value for performance-focused builds—whether you're upgrading or creating a new gaming PC in Dhaka or anywhere across the country.

Key Features

CPU Support: Intel 12th, 13th & 14th Gen Core, Pentium Gold & Celeron processors (LGA1700)
Chipset: Intel B660
Memory Support: Up to 128GB DDR4, Dual Channel, Up to 4800+ MHz (OC)
Expansion Slots: PCIe 4.0 x16 for latest GPUs
Storage:Dual M.2 NVMe with PCIe Gen4 + 6x SATA ports
Display Support: HDMI 2.1, DisplayPort 1.4, up to 4K resolution
Networking :2.5G LAN for fast and stable connectivity
Audio: High-definition audio with premium capacitors
Form Factor: Micro-ATX – excellent fit for compact PC builds
Cooling Support: Extended heatsinks & multiple fan headers

FAQs

Q1: What is the MSI MAG B660M MORTAR DDR4 price in Bangladesh?

A: The price of MSI MAG B660M MORTAR DDR4 in Bangladesh varies depending on availability and seller. Contact your local retailer or check online for the latest pricing in Dhaka and other regions.

Q2: Does it support DDR5 memory?

A: No, this model supports only DDR4 memory modules.

Q3: Can I use a PCIe 5.0 graphics card?

A: Yes, PCIe 5.0 GPUs are backward compatible and will work on the PCIe 4.0 x16 slot.

Q4: Does it have built-in Wi-Fi?

A: Wi-Fi is not included by default, but you can add a Wi-Fi card or adapter.

Q5: Is it suitable for gaming?

A: Absolutely. With PCIe 4.0, fast M.2 storage, and strong power delivery, it's ideal for high-performance gaming builds.
