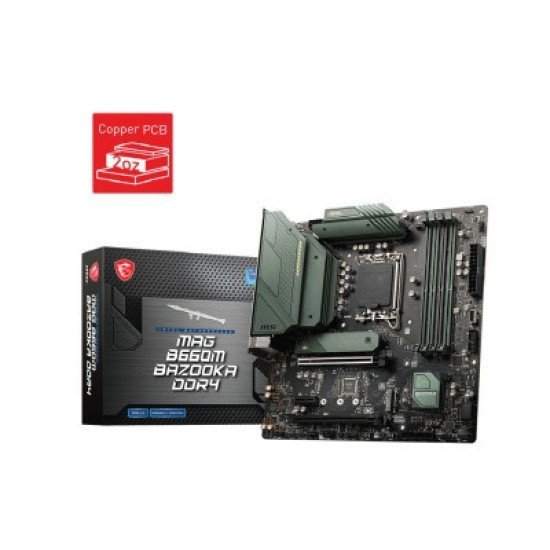

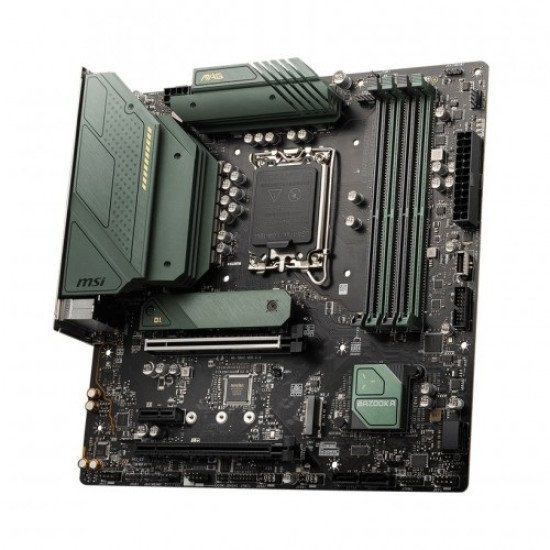

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard

-17 %

MSI MAG B660M BAZOOKA DDR4 12th Gen Micro-ATX Motherboard

Offer Price: 17,500৳
Price: 21,000৳
Stock: In Stock
Brand: MSI
Model: MAG B660M BAZOOKA DDR4
Product Code: 845085

Based on 0 reviews. - Write a review

17,500৳

21,000৳

Ex Tax: 17,500৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports 12th Gen Intel processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
4x SATA 6Gb/s ports, 2x M.2 slots
Onboard 2.5G LAN plus Gigabit LAN

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core Processors Processor socket LGA1700
Chipset	Intel B660 Chipset
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
Memory Specifications
Maximum Memory	Support up to 128GB
Slots	4x DDR4 memory slots
Supported Memory	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Type	DDR4
Graphics Specifications
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Connector & Ports
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Display Port	1x DisplayPort 1.4 port with HBR3
HDMI	1x HDMI 2.1 with HDR port
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector
LAN Port (s)	1x Realtek 8125BG 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors
TPM (Trusted Platform Module )	1x TPM module connector
USB (s)	Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Others
Special Features	Supports 2-Way AMD® CrossFire Technology
Warranty Information
Manufacturing Warranty	3 years warranty

Description

MSI MAG B660M BAZOOKA DDR4 Motherboard Price in Bangladesh

The MSI MAG B660M BAZOOKA DDR4 Micro-ATX Motherboard is built for gamers, creators, and PC enthusiasts who want strong performance without breaking the budget. Powered by the Intel B660 chipset and LGA1700 socket, it supports 14th, 13th & 12th Gen Intel Core processors—making it a future-ready option for high-performance builds in Bangladesh.

With support for DDR4 memory up to 128GB, PCIe 4.0, and lightning-fast M.2 storage, this motherboard ensures smooth multitasking, faster game loading, and powerful CPU performance. Its durable design and enhanced cooling make it ideal for competitive gaming and long-hour productivity use.

If you're searching for a strong, reliable motherboard at a good value, this one is a top choice in Dhaka and across Bangladesh.

Key Features

CPU Support: Intel 14th, 13th & 12th Gen Core, Pentium Gold & Celeron
Chipset: Intel B660
Memory Support: Dual-Channel DDR4 up to 128GB
Expansion Slot: PCIe 4.0 ×16 for latest GPUs
Storage Support: Lightning Gen4 M.2 & SATA ports
Networking: High-speed LAN for smooth online gaming
Cooling: System Extended heatsinks & thermal pads
Audio: Premium sound components for immersive gaming

FAQs

Does this motherboard support 14th Gen Intel processors?

Yes! It supports 14th, 13th, and 12th Gen Intel Core CPUs with LGA1700 socket.

Is DDR4 better for budget-friendly gaming?

Absolutely — DDR4 offers great performance at a lower cost in Bangladesh.

Can I use M.2 NVMe SSDs?

Yes, it includes fast PCIe Gen4 M.2 slots for improved load times and storage performance.

What is the MSI MAG B660M BAZOOKA DDR4 price in Bangladesh?

The price varies between retailers — you can check official shops or Dhaka computer markets for the latest offer.
