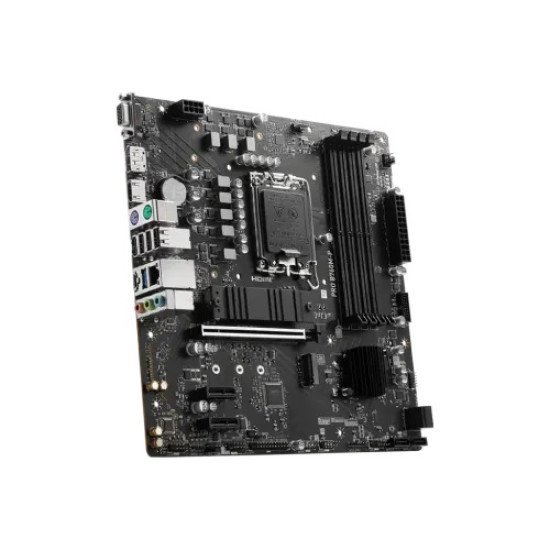

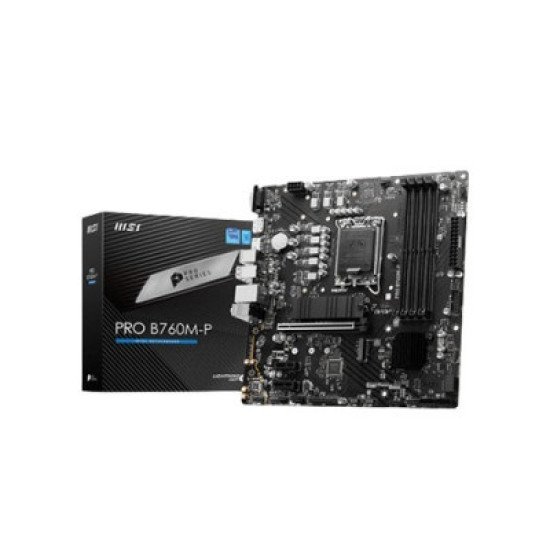

MSI PRO B760M-P DDR5 13th GEN & 12th GEN MATX Motherboard

-11 %

MSI PRO B760M-P DDR5 13th GEN & 12th GEN MATX Motherboard

Offer Price: 15,499৳
Price: 17,500৳
Stock: In Stock
Brand: MSI
Model: PRO B760M-P DDR5
Product Code: 845048

Based on 0 reviews. - Write a review

15,499৳

17,500৳

Ex Tax: 15,499৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: PRO B760M-P
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 6800+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	mATX 243.84mmx243.84mm
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	192GB
Slots	4
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
Audio	Audio Connectors
Display Port	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
LAN Port (s)	Realtek RTL8111H Gigabit LAN
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear)
VGA (s)	1x VGA
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI PRO B760M-P DDR5 Motherboard Price in Bangladesh

The MSI PRO B760M-P DDR5 Motherboard is a reliable and performance-focused Micro-ATX motherboard designed for productivity, business systems, and professional workflow builds. Supporting 12th and 13th Gen Intel Core processors with an LGA 1700 socket, it provides an efficient platform for powerful computing. Whether you're building a workstation for office tasks or a budget-friendly PC for home use, this motherboard ensures stability and smooth performance.

With DDR5 memory support, PCIe Gen4 expansion, advanced cooling, and high-quality MSI construction, the motherboard delivers next-level speed and long-lasting durability—perfect for modern PC setups in Bangladesh.

Key Features

Supported CPU: Intel® 12th & 13th Gen Core™, Pentium® Gold & Celeron® processors
Chipset: Intel B760
Memory Support: DDR5 up to high speed (Dual-Channel)
Form Factor: Micro-ATX (Ideal for compact builds)
Expansion Slots: PCIe 4.0 for modern GPU support
Storage Connectivity: High-speed M.2 slot + SATA interfaces
Connectivity: USB ports, LAN port for fast networking
Cooling Design: Extended heatsink for stable performance

FAQs

Does the MSI PRO B760M-P DDR5 support gaming?

Yes! It supports modern GPUs via PCIe 4.0 and fast DDR5 memory, making it suitable for mid-level gaming builds.

What processor is recommended for this motherboard?

Intel 12th or 13th Gen Core i5 / i7 offers the best performance for most users.

Can I upgrade storage later?

Absolutely! It supports M.2 NVMe SSDs and multiple SATA drives for future upgrades.

What is the MSI PRO B760M-P DDR5 price in Bangladesh?

Prices may vary based on the store and availability. You can check the latest updated price from trusted retailers online or in Dhaka computer markets.
