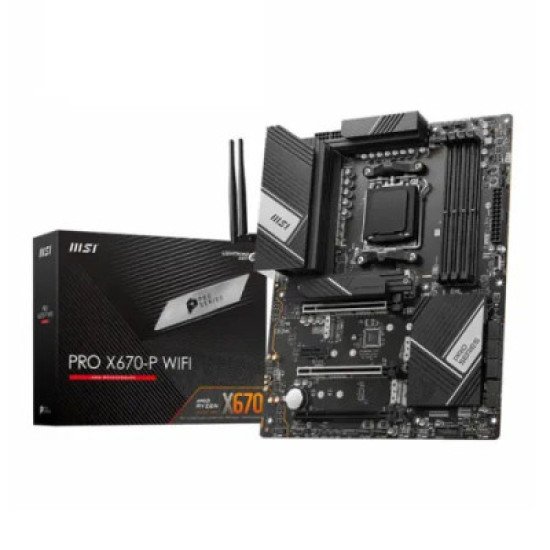

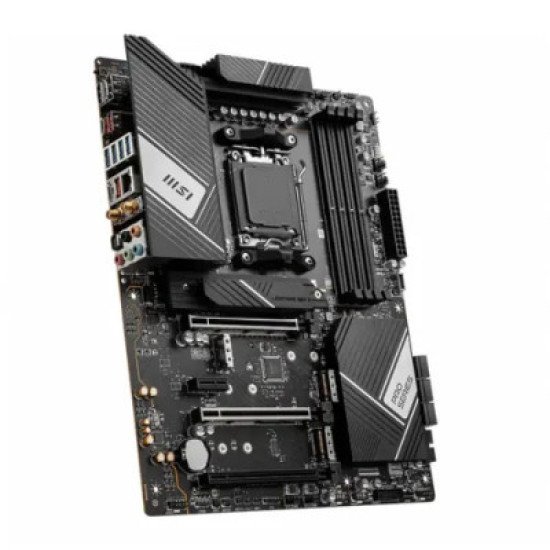

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

-22 %

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

Offer Price: 34,800৳
Price: 44,500৳
Stock: In Stock
Brand: MSI
Model: PRO X670-P WIFI
Product Code: 815818

Based on 0 reviews. - Write a review

34,800৳

44,500৳

Ex Tax: 34,800৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 128GB
Graphics Output: 1x HDMI, 1x Display Port, 1x Type-C Display port
Features: 2.5G LAN with Wi-Fi 6E Solution

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X670
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
Memory Specifications
Maximum Memory	128GB
Slots	4 DIMMs
Supported Memory	Dual Channel DDR5
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz

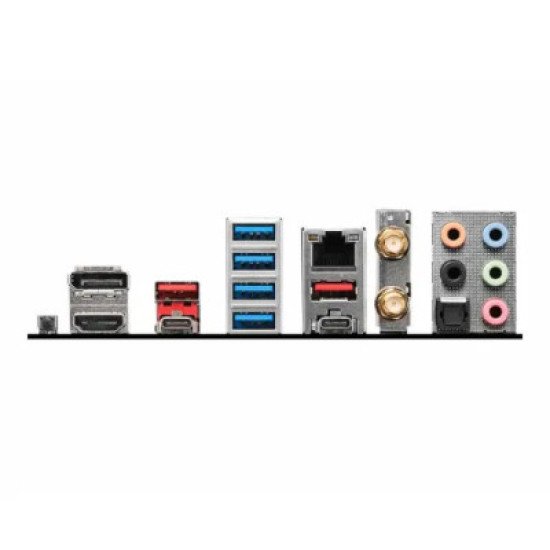

Connector & Ports
Display Port	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
USB (s)	4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Rear) 4x USB 3.2 Gen1 Type A ports (Front) 2x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Warranty Information
Warranty	3 years

Description

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard – Maximum Performance for Gaming & Productivity

The MSI PRO X670-P WIFI Motherboard is built for gamers, creators, and power users looking for high-performance computing with future-ready features. Supporting AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores, this ATX motherboard delivers robust multitasking, gaming, and overclocking capabilities.

Key Features

High-Speed DDR5 Memory: Dual-channel DDR5 support with up to 128GB memory capacity for seamless multitasking.
Advanced Power Delivery: 14+2+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, and Memory Boost technologies for stable overclocking.
Efficient Cooling: Includes extended heatsinks, MOSFET thermal pads (7W/mK), choke pads, and double-sided M.2 Shield Frozr for optimal thermal performance.
Durable PCB: 8-layer PCB with 2oz thickened copper and server-grade materials for reliability and longevity.
Next-Gen Storage Expansion:
- 2x PCIe Gen 5 x16 slots
- 4x M.2 slots with Shield Frozr for high-speed SSDs
- Optional M.2 XPANDER-Z GEN5 Dual PCIe card adds 6 M.2 slots for maximum storage performance
High-Speed Connectivity: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2, and multiple USB ports for peripherals and fast data transfers.
Convenient Features: Rear I/O panel offers safe boot, one-click RGB toggle, and Turbo mode activation.
Warranty: Backed by a 3-year warranty for peace of mind.

The MSI PRO X670-P WIFI motherboard combines high-speed DDR5 support, robust power delivery, advanced cooling, PCIe Gen5 readiness, and flexible storage options—making it ideal for gamers, streamers, and professional users.

MSI PRO X670-P WIFI Review

FAQ

Q1: Which CPUs are compatible?
A1: Supports AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores on the AM5 socket.

Q2: How much memory can it handle?
A2: Supports up to 128GB of DDR5 memory for high-performance multitasking.

Q3: What storage options are available?
A3: 2x PCIe Gen 5 x16 slots, 4x M.2 slots, optional M.2 XPANDER-Z GEN5 card for a total of 6 M.2 drives.

Q4: Does it support overclocking?
A4: Yes, with Core Boost, Memory Boost, and a 14+2+1 power phase design for stable overclocking.

Q5: What cooling solutions are included?
A5: Extended heatsinks, MOSFET thermal pads, choke pads, Shield Frozr and stacked fin array with heatpipe for efficient heat dissipation.

Q6: What connectivity options are included?
A6: Supports PCIe 4.0, Lightning Gen5 M.2, USB 3.2 Gen 2x2, Wi-Fi, and multiple USB ports.
