MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

-4 %

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard

Offer Price: 34,500৳
Price: 36,000৳
Stock: In Stock
Brand: MSI
Model: MPG B650 EDGE WIFI
Product Code: 815781

Based on 0 reviews. - Write a review

34,500৳

36,000৳

Ex Tax: 34,500৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 6600+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN and AMD Wi-Fi 6E Solution

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	128GB
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Type	DDR5
Graphics Specifications
Graphics	1x HDMI 1x DisplayPort Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz Support DP 1.4 HBR3, maximum resolution of 8K 60Hz
Connector & Ports
Audio	Audio Connectors
Display Port	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Supported Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

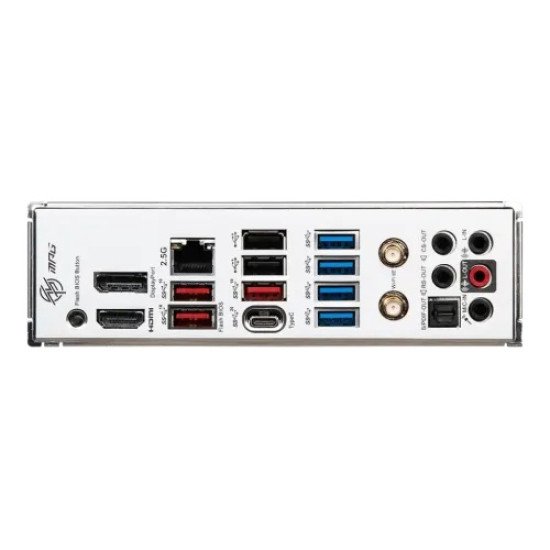

USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear)> 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Others
Special Features	4x EZ Debug LED 1x EZ LED Control switch
Warranty Information
Warranty	3 years

Description

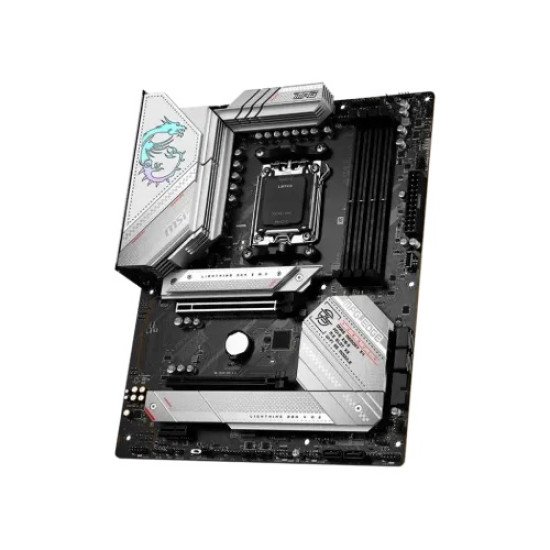

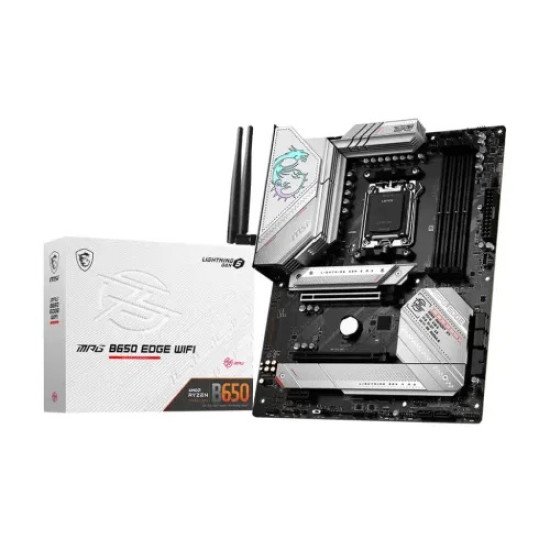

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard – High-Performance Gaming & Overclocking

The MSI MPG B650 EDGE WIFI Motherboard is designed for gamers, creators, and enthusiasts seeking cutting-edge performance and reliability. Supporting AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores, this motherboard delivers exceptional multitasking, gaming, and overclocking capabilities.

Key Features

DDR5 Memory Support: Dual-channel DDR5 memory up to 128GB and overclocking speeds of 6600+ MHz (OC).
Core Boost Technology: Premium layout and optimized power design deliver precise current for stable performance and CPU overclocking.
Advanced Cooling: Features extended heatsinks, MOSFET thermal pads (7W/mK), choke thermal pads, and Double-sided M.2 Shield Frozr to prevent throttling during high-performance workloads.
Durable PCB: 6-layer PCB with 2oz thickened copper and server-grade materials for stability, longevity, and reliable signal transfer.
High-Speed Expansion & Storage:
- PCIe 4.0 slots for GPUs
- Lightning Gen 4 x4 M.2 with Shield Frozr for SSD protection and faster performance
Convenient Features: Rear I/O panel with safe boot, one-click RGB toggle, and Turbo mode activation.
Next-Gen Connectivity:
- Seven USB-A 3.2 ports (5/10 Gb/s)
- USB-C 3.2 Gen 2x2 (20 Gb/s) for audio arrays and high-speed devices
Reliable Warranty: Backed by 3 years warranty for peace of mind.

The MSI MPG B650 EDGE WIFI motherboard combines high-speed DDR5 support, advanced power delivery, superior cooling, and flexible connectivity—making it ideal for gaming setups and professional workstations.

MSI MPG B650 EDGE WIFI Review

FAQ

Q1: Which CPUs are supported?
A1: Supports AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores on the AM5 socket.

Q2: How much memory does it support?
A2: Up to 128GB DDR5 with speeds of 6600+ MHz (OC).

Q3: Does it support overclocking?
A3: Yes, with Core Boost technology and optimized power design for stable CPU overclocking.

Q4: What storage options are available?
A4: PCIe 4.0 slots and Lightning Gen 4 x4 M.2 with Shield Frozr for high-speed SSDs.

Q5: What connectivity options does it provide?
A5: Includes seven USB-A 3.2 ports, USB-C 3.2 Gen 2x2 (20 Gb/s), Wi-Fi, and other expansion headers for peripherals.

Q6: Is cooling sufficient for long gaming sessions?
A6: Yes, it features extended heatsinks, MOSFET thermal pads, choke pads, and M.2 Shield Frozr to prevent thermal throttling.
