MSI PRO B650M-E AM5 mATX Motherboard

Offer Price: 11,300৳
Price: 12,430৳
Stock: In Stock
Brand: MSI
Model: PRO B650M-E
Product Code: 841311

Based on 0 reviews. - Write a review

11,300৳

12,430৳

Ex Tax: 11,300৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: PRO B650M-E
CPU Support: AMD Ryzen 9000, 8000, and 7000 Series Processors (Socket AM5)
Memory Support: Dual-channel DDR5, 2 slots, up to 6800+ MHz (OC)
Graphics Output: 1x HDMI, 1x VGA
Networking: Realtek RTL8111H Gigabit LAN for stable and high-speed c

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	Flash BIOS Button
Form Factor	mATX 211mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
PCI	1x PCI-E x16 slot Supports x16 (For Ryzen 9000/ 7000 Series processors) Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	128GB
Slots	2x UDIMM
Supported Memory	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
Audio	1x Front Audio (JAUD)
Display Port	1 x DisplayPort
HDMI	1 x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LAN Port (s)	Realtek RTL8111H Gigabit LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

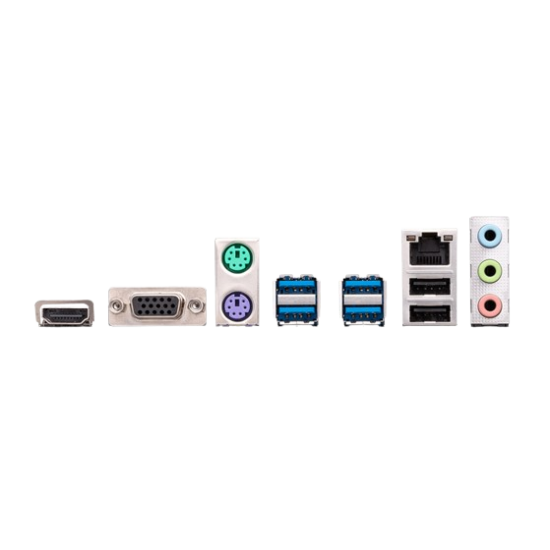

USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
VGA (s)	1x VGA
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

Description

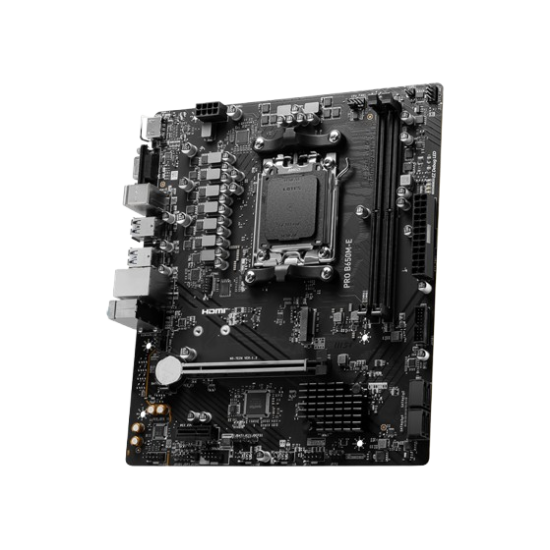

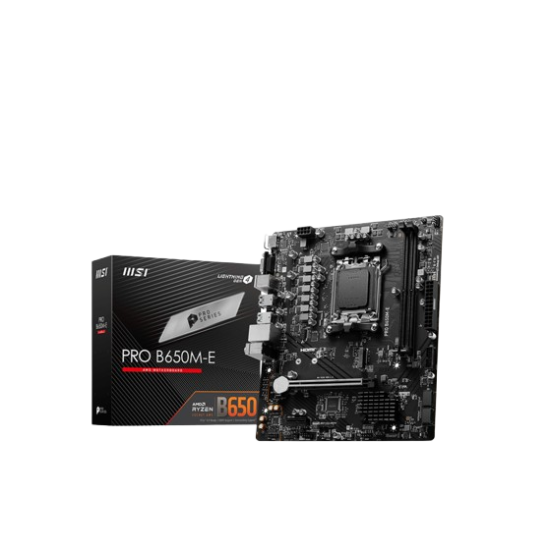

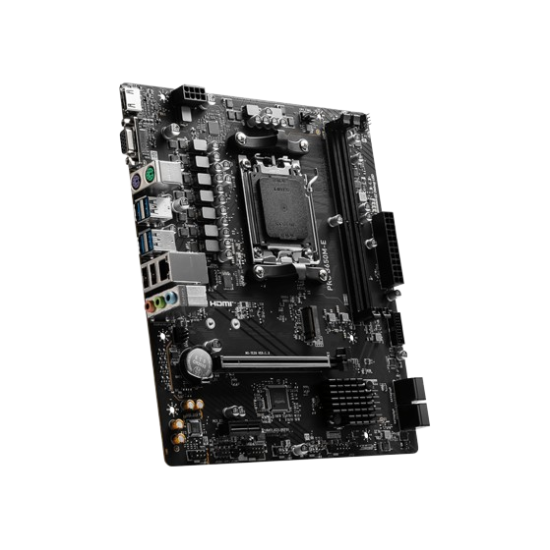

MSI PRO B650M-E AM5 mATX Motherboard

The MSI PRO B650M-E AM5 mATX Motherboard is a powerful and efficient motherboard built for modern AMD systems, offering a perfect balance of performance, reliability, and future-ready technology. Designed with the AMD B650 chipset and AM5 socket, it supports the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, ensuring exceptional speed and productivity for gamers, creators, and professionals alike.

This motherboard supports dual-channel DDR5 memory with speeds up to 6800+ MHz (OC) and a maximum capacity of 128GB across two DIMM slots. With support for AMD EXPO profiles, users can enjoy stable overclocking and smooth multitasking across demanding applications.

For display connectivity, the MSI PRO B650M-E features 1x HDMI 2.1 port (up to 4K@60Hz) and 1x VGA port, offering both modern and legacy display compatibility. Audio is powered by the Realtek ALC897 Codec, delivering immersive 7.1-channel high-definition sound for gaming, entertainment, and work.

In terms of expansion, it includes 1x PCIe 4.0 x16 slot and 1x PCIe 3.0 x1 slot, ensuring compatibility with the latest GPUs and add-on cards. For storage, the motherboard offers 1x M.2 slot (PCIe 4.0 x4) for ultra-fast NVMe SSDs and 4x SATA 6Gb/s ports with RAID 0, 1, and 10 support — providing flexibility for performance and data security.

Networking is handled by Realtek RTL8111H Gigabit LAN, ensuring stable and fast internet connectivity. It also offers extensive I/O options, including 2x rear USB 2.0, 4x rear USB 5Gbps Type-A, and multiple front USB headers for convenient peripheral connections.

Additional features include EZ Debug LED indicators for easy troubleshooting, RGB LED header (JRGB) for lighting customization, and multiple internal connectors for fans, audio, and front panel controls.

With a micro-ATX form factor (211mm x 243.84mm), the MSI PRO B650M-E AM5 is ideal for compact builds without compromising performance.

Stylish, durable, and feature-rich, the MSI PRO B650M-E AM5 Motherboard delivers cutting-edge technology and dependable performance — the perfect foundation for next-generation AMD PC builds.
