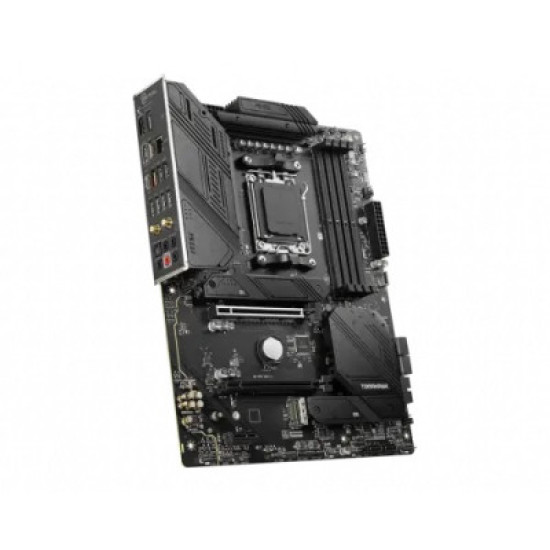

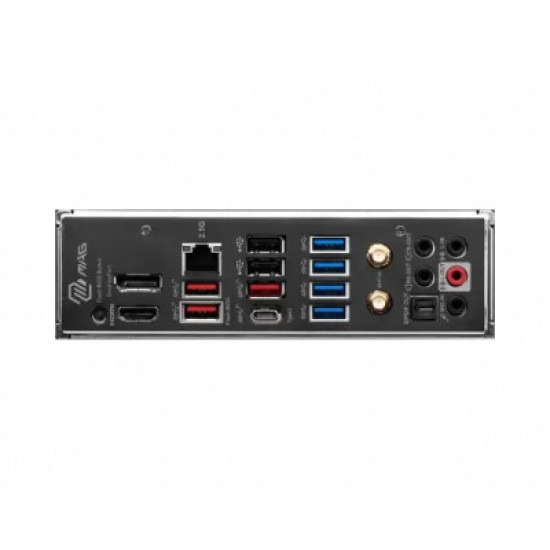

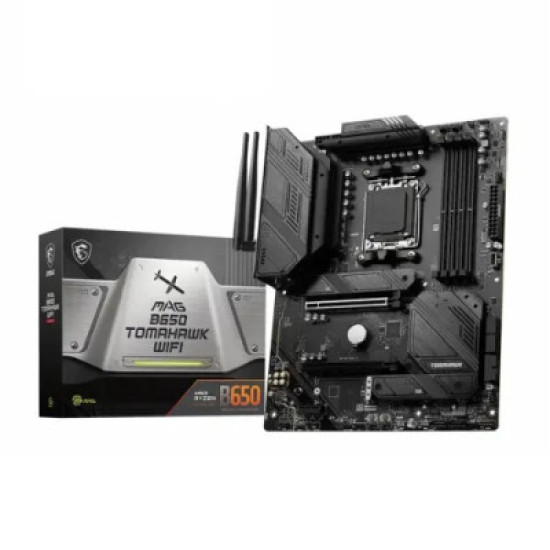

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

-6 %

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

Offer Price: 31,000৳
Price: 33,000৳
Stock: In Stock
Brand: MSI
Model: MAG B650 TOMAHAWK WIFI
Product Code: 815411

Based on 0 reviews. - Write a review

31,000৳

33,000৳

Ex Tax: 31,000৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 6400+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN and Intel Wi-Fi 6E Solution

View more details

For further queries, please call 01999-913556

Specification

Basic Information
Form Factor	ATX 243.84mm x 304.8mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
M.2 Socket	3x M.2
PCI	2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Memory Specifications
Maximum Memory	128GB
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Type	DDR5
Graphics Specifications
Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
Audio	Audio Connectors
Display Port	1x DisplayPort
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

Description

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard – High-Performance Gaming & Productivity

The MSI MAG B650 TOMAHAWK WIFI Motherboard is designed for gamers, creators, and PC enthusiasts seeking extreme performance. Supporting AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores, this motherboard ensures smooth multitasking, high-speed gaming, and efficient productivity.

Key Features:

Powerful DDR5 Memory Support: Dual-channel DDR5 memory with up to 128GB capacity and overclocking speeds up to 6400+ MHz.
Core Boost Technology: Optimized power design delivers fast and stable current to multi-core CPUs, perfect for overclocking.
Advanced Cooling: Includes extended heatsinks, MOSFET thermal pads (7W/mK), choke thermal pads, and Double-sided M.2 Shield Frozr for uninterrupted gaming performance.
Durable PCB Design: 6-layer PCB with 2oz thickened copper and server-grade materials for reliable stability.
High-Speed Storage: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with Shield Frozr to prevent SSD throttling and maintain peak speeds.
Enhanced Connectivity: Rear I/O offers safe boot, one-click RGB toggle, and Turbo mode activation. Includes seven USB-A 3.2 ports (5/10 Gb/s) and USB-C 3.2 Gen 2x2 (20 Gb/s) for ultra-fast data transfer.
Reliable Warranty: Backed by 3 years warranty for peace of mind.

The MSI MAG B650 TOMAHAWK WIFI motherboard is perfect for building high-end gaming rigs or professional workstations, combining speed, durability, and advanced features for ultimate PC performance.

FAQ

Q1: Which processors are compatible?
A1: Supports AMD Ryzen 8000 & 7000 Series processors with up to 16 Zen 4 cores on the AM5 socket.

Q2: What memory does it support?
A2: Dual-channel DDR5 memory up to 128GB with overclocking speeds of 6400+ MHz.

Q3: Does it support PCIe 4.0 and M.2 SSDs?
A3: Yes, it features PCIe 4.0 slots and Lightning Gen 4 x4 M.2 with Shield Frozr to ensure high-speed storage performance.

Q4: What USB ports are available?
A4: Seven USB-A 3.2 ports (5/10 Gb/s) and USB-C 3.2 Gen 2x2 (20 Gb/s) for fast data transfers and peripherals.

Q5: Is it suitable for gaming and overclocking?
A5: Yes, with Core Boost technology, advanced cooling, and durable components, it is optimized for high-performance gaming and CPU overclocking.
