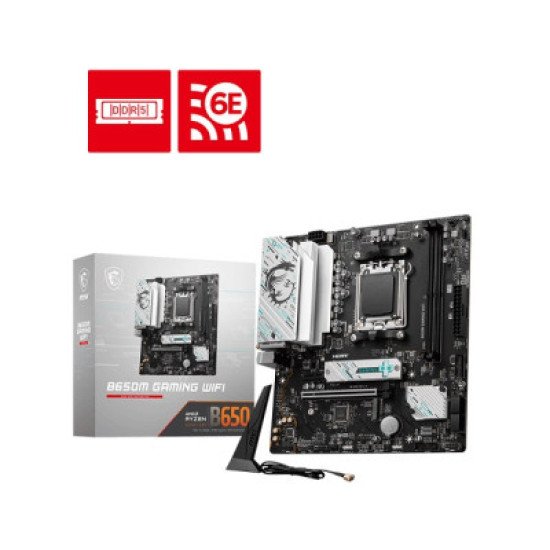

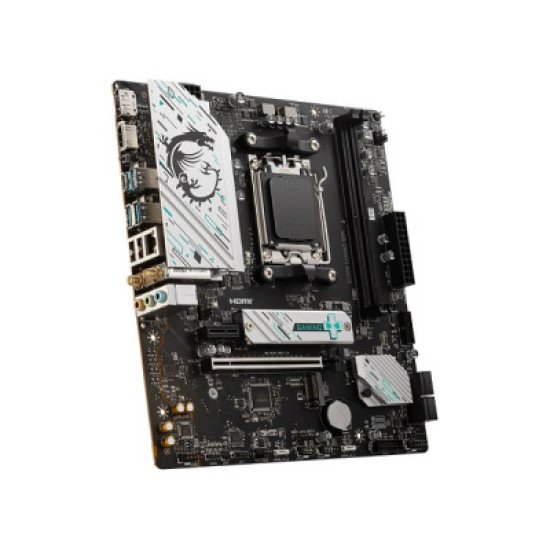

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

-2 %

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

Offer Price: 18,700৳
Price: 19,000৳
Stock: In Stock
Brand: MSI
Model: B650M GAMING WIF
Product Code: 811600

Based on 0 reviews. - Write a review

18,700৳

19,000৳

Ex Tax: 18,700৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 7800+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E

View more details

For further queries, please call 01958-013555

Specification

Basic Information
Form Factor	mATX 226mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	2x M.2
PCI	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Memory Specifications
Maximum Memory	128GB
Slots	2
Supported Memory	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Type	DDR5
Graphics Specifications
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
Display Port	1 x DisplayPort
HDMI	1 x HDMI

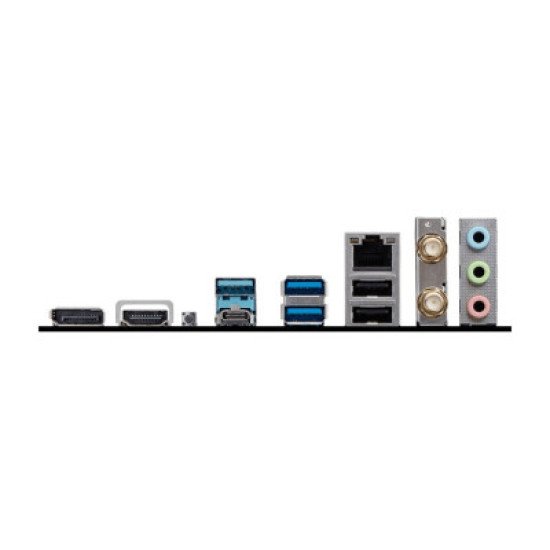

Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Warranty Information
Warranty	3 years

Description

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard – Power, Speed, and Reliability

The MSI B650M GAMING WIFI AMD AM5 mATX Motherboard is engineered to deliver outstanding performance, stability, and connectivity for gamers, content creators, and PC enthusiasts. Designed with cutting-edge features, it supports the latest AMD Ryzen 8000 and 7000 Series Desktop Processors, ensuring next-level power for gaming, programming, 3D rendering, and graphic design.

This motherboard is equipped with DDR5 memory support up to 128GB and speeds of up to 7800+ MHz (OC), allowing smooth multitasking and ultra-fast responsiveness. It also features PCIe 4.0 slots and Lightning Gen4 M.2 for faster data transfer and reduced load times. With RAID 0, RAID 1, and RAID 10 support across both SATA and M.2 NVMe devices, users can enjoy optimized data management and storage protection.

Connectivity is a highlight of the MSI B650M GAMING WIFI, with HDMI and DisplayPort outputs, USB 3.2 Gen 1 Type-A and Type-C ports, a 2.5G LAN port, and AMD Wi-Fi 6E wireless technology for seamless high-speed networking. Its integrated Realtek ALC897 codec delivers immersive 7.1-channel HD audio, enhancing the gaming and entertainment experience.

Built with a 6-layer PCB using thickened copper, this motherboard ensures durability and stability. Additional features such as Core Boost digital power design, Memory Boost technology, EZ Debug LED, and Steel Armor VGA protection give users a reliable and long-lasting foundation for their dream gaming rig. Backed by a 3-year warranty, the MSI B650M GAMING WIFI is the ultimate choice for performance and reliability.

Key Features of MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

Supports AMD Ryzen 8000 and 7000 Series Desktop Processors
Supports DDR5 memory up to 128GB and speeds of up to 7800+ MHz (OC)
PCIe 4.0 slots and Lightning Gen4 M.2 for fast data transfer
RAID 0, RAID 1, and RAID 10 support for SATA and NVMe storage devices
Core Boost digital power design for stable and efficient performance
Memory Boost technology for improved data integrity and compatibility
EZ Debug LED for simplified troubleshooting
Steel Armor to protect VGA cards from bending and EMI
Realtek ALC897 codec with 7.1-channel HD audio for immersive sound
Integrated AMD Wi-Fi 6E and 2.5G LAN for high-speed networking
6-layer PCB with 2oz thickened copper for durability
Compact mATX form factor suitable for a wide range of builds
Backed by a 3-year warranty

Why Choose the MSI B650M GAMING WIFI

Excellent performance with Ryzen 8000 and 7000 series CPU support
Next-generation DDR5 memory compatibility
Strong gaming performance with PCIe 4.0 and M.2 Gen4 storage support
Reliable connectivity with Wi-Fi 6E and 2.5G LAN
High durability with Steel Armor and premium PCB design
Studio-grade immersive sound for gaming and entertainment

Unboxing MSI B650M GAMING WIFI

FAQ

Q1: Does the MSI B650M GAMING WIFI support DDR4 memory?
No, this motherboard only supports DDR5 memory up to 128GB.

Q2: Is the MSI B650M GAMING WIFI suitable for overclocking?
Yes, it supports overclocking with DDR5 memory speeds up to 7800+ MHz (OC) and features Core Boost for stable performance.

Q3: Does the motherboard come with integrated graphics support?
The motherboard provides DisplayPort and HDMI outputs, but integrated graphics depend on the installed AMD processor.

Q4: What audio system does this motherboard use?
It uses the Realtek ALC897 codec with 7.1-channel high-definition audio for immersive sound quality.

Q5: What is the warranty period for this motherboard?
It comes with a 3-year official warranty.
