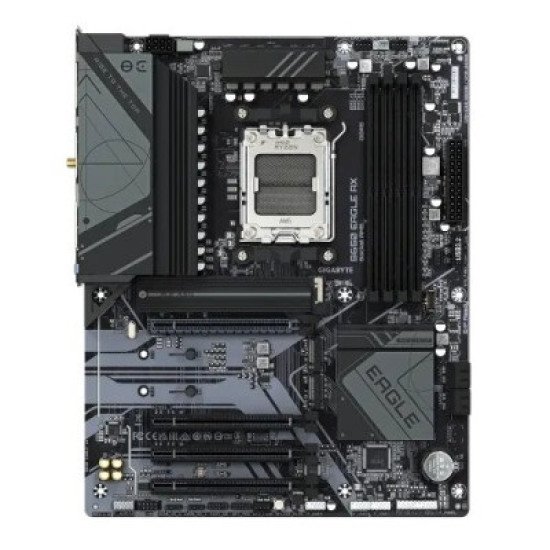

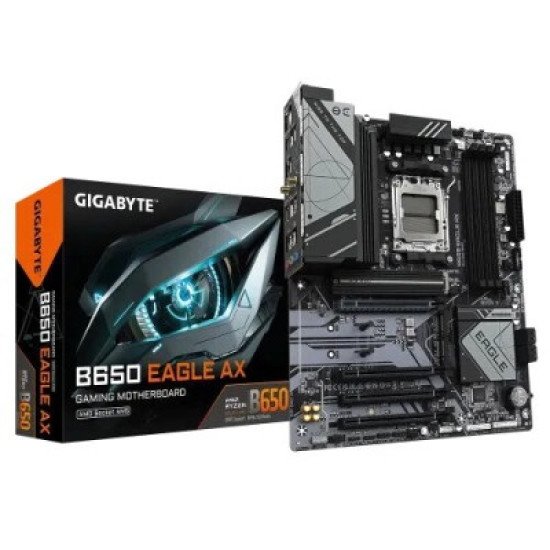

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

-13 %

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

Offer Price: 26,000৳
Price: 30,000৳
Stock: In Stock
Brand: Gigabyte
Model: B650 EAGLE AX
Product Code: 850561

Based on 0 reviews. - Write a review

26,000৳

30,000৳

Ex Tax: 26,000৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: B650 EAGLE AX
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Graphics Output: 1x Display Port, 1 x HDMI
Features: Realtek GbE LAN chip & Realtek Wi-Fi 6E RTL8852CE

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset	AMD B650
Audio	3 x Audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Memory Specifications
Maximum Memory	192GB
Slots	4 DIMMs
Supported Memory	7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1x HDMI

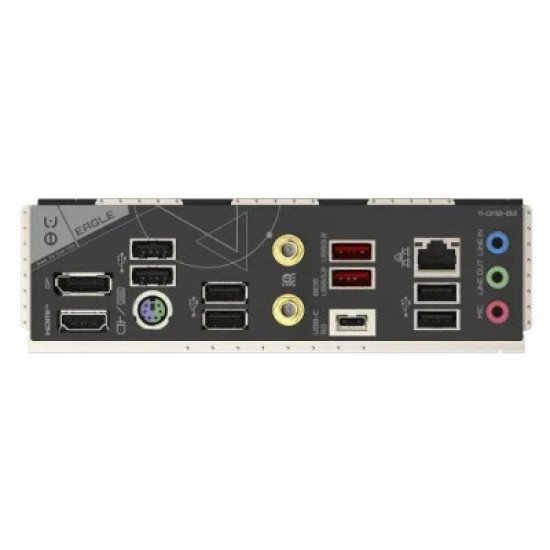

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard

The GIGABYTE B650 EAGLE AX DDR5 AM5 Motherboard is a powerful, future-ready ATX motherboard built for gamers, creators, and performance users in Bangladesh. Designed with the AMD B650 chipset and full support for Ryzen 7000 and Ryzen 8000 Series processors, it delivers exceptional speed, stability, and next-gen computing power.

With DDR5 memory support, PCIe 4.0 & PCIe 5.0 expansion, Wi-Fi 6E, and 2.5G Ethernet, this motherboard ensures ultra-fast connectivity and reliable performance for demanding workloads. Whether you're building a gaming PC, editing videos, or designing 3D content, the B650 EAGLE AX offers premium features at an attractive price in Bangladesh.

If you're searching for a high-performance AM5 motherboard at a competitive price in Dhaka, this model stands out with its excellent value, durability, and feature-rich design.

Key Features

Powerful AM5 Platform Support

Compatible with AMD Ryzen 7000 & 8000 Series processors
Optimized VRM design for stable power delivery

High-Speed DDR5 Memory

Supports DDR5 RAM with higher bandwidth and improved stability
Ideal for gaming, content creation, and multitasking

Next-Gen Connectivity

Built-in Wi-Fi 6E and 2.5G LAN for ultra-fast online performance
Perfect for gamers in Bangladesh wanting low-latency networking

Advanced PCIe Expansion

PCIe 4.0 for graphics cards
PCIe 5.0 M.2 support for ultra-fast NVMe SSDs
Enhances speed for next-gen storage and GPUs

Enhanced Thermal & Build Quality

Smart Fan 6 technology
High-quality heatsinks for optimal cooling
Durable components for long-lasting performance

Multiple Display Outputs

HDMI & DisplayPort support
Great for multi-monitor setups used in editing or productivity

Perfect for Gaming & Professional Builds

Stable performance even under heavy load
Excellent value motherboard price in Bangladesh

FAQs

Q1: Is the GIGABYTE B650 EAGLE AX available in Bangladesh?

Yes, this motherboard is available across Bangladesh, including major tech markets like Dhaka, Chattogram, and Khulna.

Q2: What is the GIGABYTE B650 EAGLE AX motherboard price in Bangladesh?

Prices may vary depending on shop and availability. For the best deal, check the latest GIGABYTE B650 EAGLE AX price in Bangladesh from trusted retailers or online stores.

Q3: Does it support overclocking?

Yes, the motherboard supports memory overclocking and offers a stable VRM setup for enhanced performance.

Q4: Is it good for gaming?

Absolutely. With DDR5, PCIe 4.0, Wi-Fi 6E, and 2.5G LAN, this board is excellent for high-end gaming builds.

Q5: Does it support M.2 SSDs?

Yes, it supports multiple M.2 NVMe SSDs, including PCIe Gen 5 storage for extreme speed.
