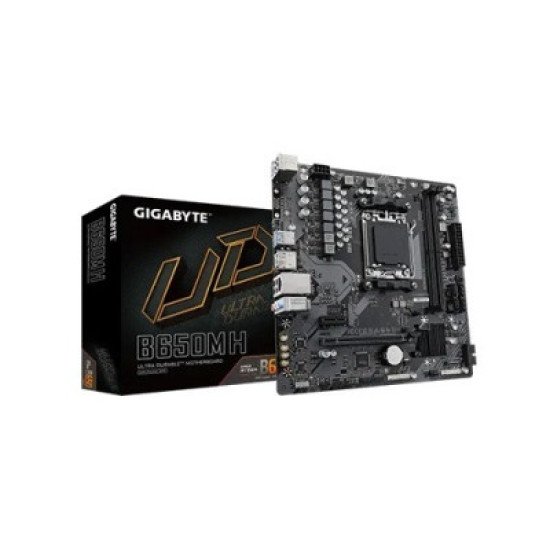

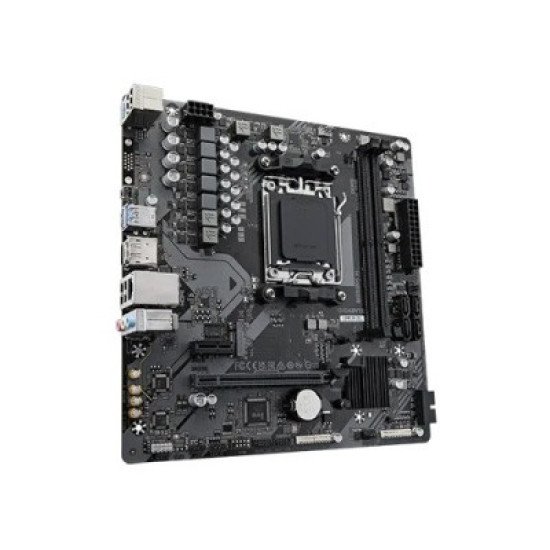

GIGABYTE B650M H AM5 Micro-ATX Motherboard

-12 %

GIGABYTE B650M H AM5 Micro-ATX Motherboard

Offer Price: 13,000৳
Price: 14,850৳
Stock: In Stock
Brand: Gigabyte
Model: B650M H
Product Code: 851375

Based on 0 reviews. - Write a review

13,000৳

14,850৳

Ex Tax: 13,000৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: B650M H
Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Features: 1 x DisplayPort, 1 x HDMI

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650
Audio	3 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
Memory Specifications
Maximum Memory	supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Slots	2 x DIMM
Supported Memory	6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Type	DDR5
Graphics Specifications
Graphics	supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI	1 x HDMI
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B650M H AM5 Micro-ATX Motherboard

The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a high-performance motherboard designed for AMD’s latest Ryzen 7000, 8000, and 9000 Series processors. Powered by the AMD B650 chipset, it offers robust performance, advanced connectivity, and future-proof features for gamers, content creators, and PC enthusiasts in Bangladesh.

This motherboard supports DDR5 memory, PCIe 4.0 expansion, and M.2 NVMe SSDs, providing lightning-fast storage and system responsiveness. Integrated DisplayPort and HDMI outputs, high-speed USB 3.2 Gen 1 ports, and a durable Micro-ATX design make it ideal for both compact builds and high-performance setups. Whether you’re upgrading or building a new PC, the B650M H ensures reliability, scalability, and top-tier functionality, making it a perfect choice for those seeking the latest technology at a competitive price in Dhaka or price in Bangladesh.

Key Features

AM5 Socket SupportCompatible with Ryzen 7000, 8000, and 9000 Series processors for next-gen performance.
DDR5 Memory SupportDual-channel DDR5 RAM for faster data processing, multitasking, and gaming.
PCIe 4.0 & M.2 NVMe SlotsUltra-fast PCIe 4.0 support and dual M.2 slots for high-speed storage expansion.
Integrated Display OutputsIncludes HDMI and DisplayPort, supporting modern monitors and multi-display setups.
High-Speed ConnectivityUSB 3.2 Gen 1 ports and multiple expansion slots for accessories and peripherals.
Micro-ATX Compact Form FactorFits small to medium PC cases, ideal for Dhaka and other urban setups in Bangladesh.
Durable Build QualityGigabyte Ultra Durable components for stable performance and long-term reliability.

FAQs

1. What is the GIGABYTE B650M H price in Bangladesh?

The B650M H price in Bangladesh varies by retailer and stock availability. Check local stores in Dhaka or trusted online shops for the latest pricing.

2. Does this motherboard support Ryzen 9000 processors?

Yes, it supports AMD Ryzen 7000, 8000, and 9000 Series CPUs.

3. Does it support DDR5 RAM?

Yes, the motherboard supports high-speed DDR5 memory for better multitasking and gaming performance.

4. Can it handle gaming and content creation?

Absolutely. With PCIe 4.0, M.2 NVMe SSD support, and high-speed RAM, it’s suitable for gaming, editing, and professional workloads.

5. Does it have built-in Wi-Fi?

No, the B650M H does not include built-in Wi-Fi. You can add a Wi-Fi card or USB adapter if needed.

6. How many display outputs are available?

It comes with HDMI and DisplayPort, allowing dual-display or multi-display setups.

7. Is the Micro-ATX form factor suitable for small builds?

Yes, its compact design makes it ideal for small and medium-sized cases, common in Dhaka and across Bangladesh.
