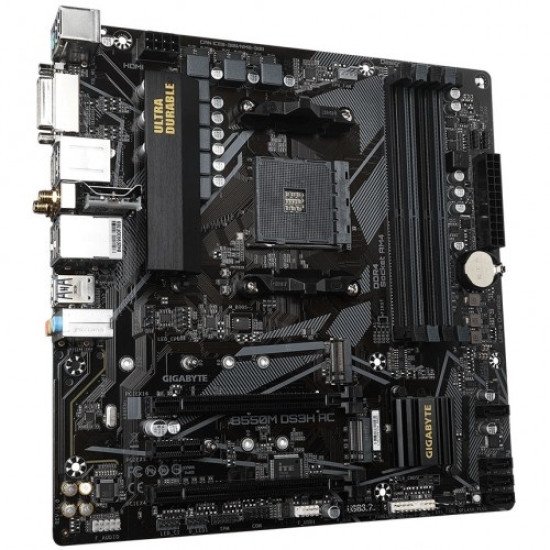

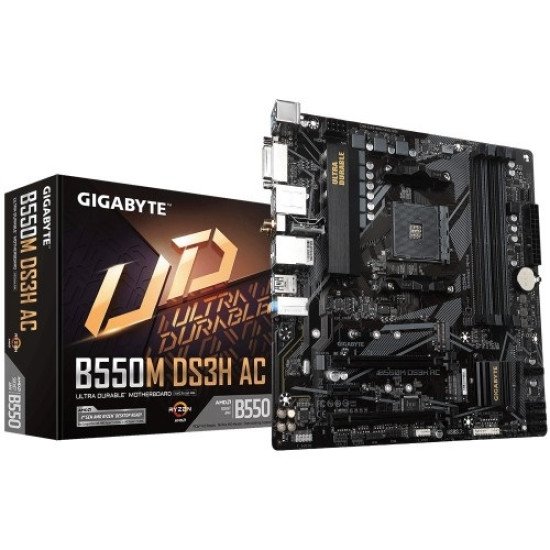

Gigabyte B550M DS3H AC Micro ATX AMD Motherboard

-22 %

Gigabyte B550M DS3H AC Micro ATX AMD Motherboard

Offer Price: 12,900৳
Price: 16,500৳
Stock: In Stock
Brand: Gigabyte
Model: B550M DS3H AC
Product Code: 850228

Based on 0 reviews. - Write a review

12,900৳

16,500৳

Ex Tax: 12,900৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Dual Ultra-Fast NVMe
RGB FUSION 2.0 Supports
High-Quality Audio Capacitors

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Memory Specifications
Maximum Memory	128 GB
Slots	4 x DIMM
Supported Memory	AMD Ryzen™ 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	Dual Channel DDR4 Memory Technology
Graphics Specifications
Graphics	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and HDR)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit) Wireless Communication module: Intel Wi-Fi AC 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate
Supported Storage	1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

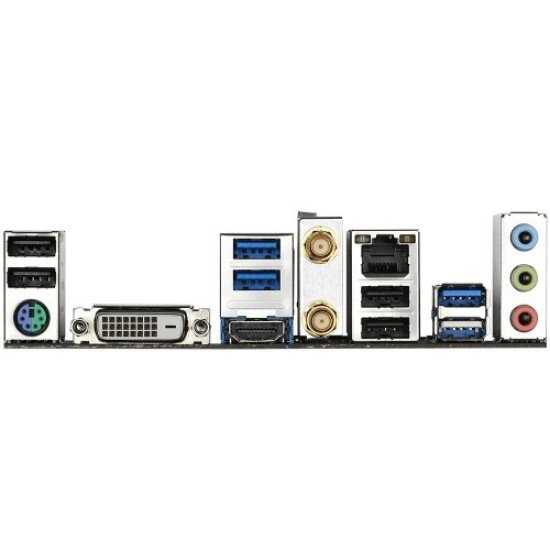

USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Others
Bundled Software	Support for Windows 10 64-bit
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte B550M DS3H AC Micro ATX AMD Motherboard

The Gigabyte B550M DS3H AC Micro ATX AMD Motherboard is a feature-rich and performance-driven choice for gamers, content creators, and power users in Bangladesh. Powered by the advanced AMD B550 chipset, it supports Ryzen 5000, 4000G Series, and 3rd Gen Ryzen processors—offering fast performance, smooth multitasking, and future-ready connectivity.

Designed for modern desktop builds, this motherboard includes built-in Intel Dual-Band Wi-Fi AC, PCIe 4.0 support, dual M.2 slots, and RGB Fusion for customizable lighting. With support for up to 128GB DDR4 RAM and high-speed USB ports, the B550M DS3H AC ensures top-tier responsiveness whether you're gaming, editing videos, or building a professional workstation.

If you're searching for the latest Gigabyte B550M DS3H AC price in Bangladesh or looking for the best offer price in Dhaka, this motherboard delivers unbeatable value and stability for mid-range and high-performance PC builds.

Key Features

AM4 Processor SupportCompatible with AMD Ryzen 5000, 4000G Series, and 3rd Gen Ryzen CPUs.Perfect for gaming rigs and productivity PCs.
Built-in Intel Dual-Band Wi-Fi ACEnjoy seamless wireless connectivity without needing an extra Wi-Fi card.
PCIe 4.0 ReadyNext-generation PCIe 4.0 graphics and SSD support for ultra-fast performance.
Dual M.2 NVMe SlotsSupports high-speed NVMe SSDs for faster boot and load times.
Supports Up to 128GB DDR4 RAMDual-channel memory ensures smooth multitasking and application performance.
RGB Fusion SupportCustomize your PC lighting and sync with supported RGB components.
High-Speed ConnectivityEquipped with USB 3.2 Gen 1 and multiple display outputs.
Compact Micro ATX DesignFits easily in smaller cases, ideal for compact builds in Bangladesh homes and offices.

FAQs

1. What is the Gigabyte B550M DS3H AC price in Bangladesh?

The Gigabyte B550M DS3H AC price in Bangladesh varies by retailer and stock availability. Prices in Dhaka tech markets and online stores may differ, so compare current offers for the best deal.

2. Does the B550M DS3H AC support Wi-Fi?

Yes, it includes built-in Intel Dual-Band Wi-Fi AC and Bluetooth support.

3. Is this motherboard good for gaming?

Absolutely. With PCIe 4.0, fast memory support, and Ryzen 5000 compatibility, it's excellent for mid- to high-end gaming builds.

4. Can it run without a graphics card?

Yes, but only with Ryzen G-Series processors that come with integrated graphics (e.g., 5600G, 4600G). Other Ryzen CPUs require a GPU.

5. Is it suitable for video editing and content creation?

Yes. Fast PCIe 4.0 SSDs, up to 128GB RAM support, and multi-core Ryzen CPUs make it ideal for editing, rendering, and productivity tasks.

6. Where can I buy it in Dhaka?

You can purchase it from major tech markets like Multiplan Center, Bashundhara City, or trusted online stores offering delivery across Bangladesh.
