GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

-7 %

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

Offer Price: 15,300৳
Price: 16,500৳
Stock: In Stock
Brand: Gigabyte
Model: B650M S2H
Product Code: 850413

Based on 0 reviews. - Write a review

15,300৳

16,500৳

Ex Tax: 15,300৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: B650M S2H
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors
Chipset	AMD B650
Audio	3 x audio jacks
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory Specifications
Maximum Memory	up to 96 GB (48 GB single DIMM capacity)
Slots	2 x DIMM
Supported Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Connector & Ports
HDMI	1 x HDMI
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

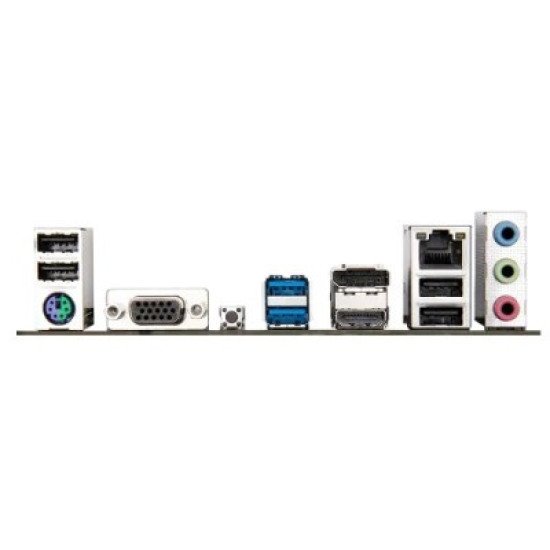

USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard is a powerful and future-ready platform built for gamers, content creators, and PC enthusiasts in Bangladesh. With support for the latest AMD Ryzen 7000 and 8000 Series processors, this high-performance motherboard ensures exceptional speed, stability, and upgrade flexibility for modern PC builds.

Powered by the advanced AMD B650 chipset, it brings next-gen features like DDR5 memory support, PCIe 4.0 expansion, dual M.2 NVMe slots, and integrated display outputs for Ryzen APUs. Its compact Micro-ATX form factor makes it ideal for efficient and performance-driven setups without compromising on power.

Whether you’re assembling a gaming rig or a workstation in Dhaka, the GIGABYTE B650M S2H provides outstanding value at a competitive price in Bangladesh.

Key Features

Supports AMD Ryzen 7000 & 8000 Series ProcessorsBuilt for the latest AM5 CPUs, offering exceptional performance for gaming, editing, and productivity workloads.
Next-Gen DDR5 Memory CompatibilityEnjoy faster speeds, improved bandwidth, and smoother multitasking with high-speed DDR5 RAM.
PCIe 4.0 Expansion SlotIdeal for powerful GPUs and high-speed NVMe SSDs, enabling ultra-fast data transfer rates.
Dual M.2 NVMe SlotsSupports PCIe 4.0 M.2 SSDs for quicker boot times, faster loading, and improved responsiveness.
Integrated Display OutputsIncludes HDMI and DisplayPort, compatible with Ryzen processors featuring integrated Radeon Graphics.
High-Definition AudioClear and immersive sound for gaming, media, and productivity.
Compact Micro-ATX Form FactorFits perfectly in small or mid-tower cases while offering robust features.
Best Price in Dhaka & BangladeshA top choice for budget-conscious builders looking for premium AM5 performance.

FAQs

1. What is the GIGABYTE B650M S2H price in Bangladesh?

Prices vary by retailer, but it offers excellent value. Check major PC stores and online retailers in Dhaka for the latest pricing.

2. Does the B650M S2H support DDR5 RAM?

Yes, it fully supports next-generation DDR5 memory, enabling faster performance and better efficiency.

3. Which CPUs are compatible with this motherboard?

It supports AMD Ryzen 7000 and 8000 Series AM5 processors, including models with integrated Radeon Graphics.

4. Does this motherboard support PCIe 4.0?

Yes, it includes a PCIe 4.0 x16 slot for graphics cards and storage devices.

5. How many M.2 slots does the B650M S2H have?

It has two M.2 NVMe slots, including PCIe 4.0 support for ultra-fast SSDs.

6. Can I use integrated graphics with this motherboard?

Yes, when using Ryzen APUs with integrated Radeon Graphics, you can use the HDMI and DisplayPort outputs.

7. Is it good for gaming?

Absolutely. Its DDR5 support, PCIe 4.0 compatibility, and strong power delivery make it ideal for modern gaming PCs.

8. Where can I buy this motherboard in Dhaka?

Shops in areas like Multiplan Center, IDB Bhaban, and reputable online stores frequently list this model.
