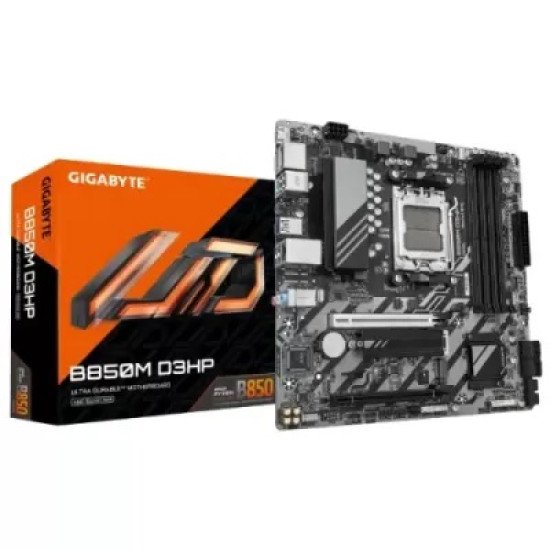

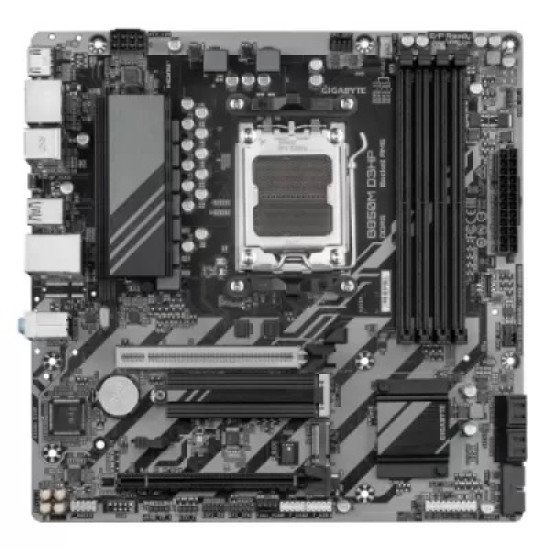

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

-2 %

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

Offer Price: 21,000৳
Price: 21,500৳
Stock: In Stock
Brand: Gigabyte
Model: B850M D3HP
Product Code: 850524

Based on 0 reviews. - Write a review

21,000৳

21,500৳

Ex Tax: 21,000৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Graphics Output: 2x Display Port, 1 x HDMI
Features: 2x M.2 Slot, Realtek GbE LAN chip

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors AMD Ryzen 8000 Series Processors AMD Ryzen 7000 Series Processors
Chipset	AMD B650
Audio	3 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory Specifications
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity) of system memory
Slots	4 DIMM
Supported Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Max Shared Memory	16 GB
Connector & Ports
HDMI	1x HDMI

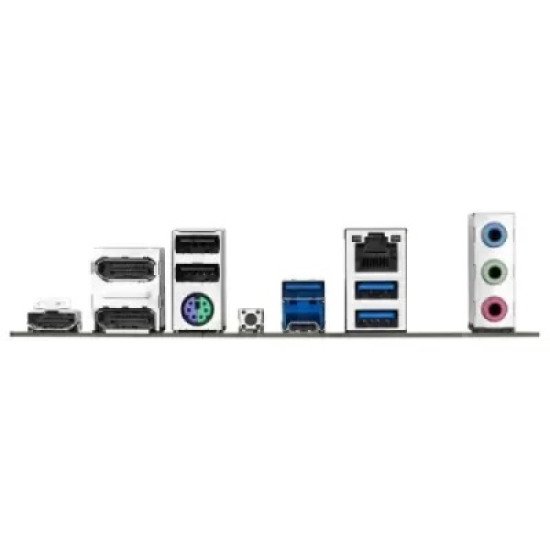

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Others
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

The GIGABYTE B850M D3HP is a next-generation AMD AM5 Micro ATX motherboard built to deliver unmatched speed, stability, and performance for modern PC builders in Bangladesh. Designed for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard unlocks top-tier computing power for gamers, content creators, and professionals.

With DDR5 memory support up to 8200(OC) MHz, PCIe 5.0 compatibility, high-speed storage support, and multiple display outputs, the B850M D3HP is engineered for exceptional performance and smooth future-proof upgrades. Whether you're building a high-end gaming PC in Dhaka or upgrading your workstation, this motherboard offers premium features at a competitive price in Bangladesh.

Key Features

Supports Ryzen 9000 / 8000 / 7000 SeriesBuilt for AMD’s most powerful AM5 processors, ensuring unmatched performance.
DDR5 Memory Up to 8200(OC) MHzUltra-high-speed DDR5 RAM support delivers lightning-fast load times and multitasking.
PCIe 5.0 ReadyNext-gen GPU and SSD support with massive bandwidth and future-proof expandability.
Micro ATX Compact DesignIdeal for modern gaming and productivity builds in smaller cases without sacrificing power.
High-Speed Storage SupportAdvanced M.2 NVMe support for ultra-fast boot and application speeds.
Multiple Display Output OptionsOptimized for productivity with HDMI and DisplayPort support for multi-monitor setups.
Reliable Power DeliveryStable VRM design ensures consistent performance for power-hungry Ryzen CPUs.
Best Price in Dhaka & BangladeshOffers premium features at an affordable price point in the local market.

FAQs

1. What is the GIGABYTE B850M D3HP price in Bangladesh?

Prices vary depending on availability and retailer. Check reputable shops in Dhaka or online stores for the latest price.

2. Which processors are supported?

It supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket.

3. Does the motherboard support DDR5?

Yes, it supports high-speed DDR5 memory up to 8200(OC) MHz.

4. Is PCIe 5.0 available?

Yes, the board includes PCIe 5.0 support for next-gen GPUs and SSDs.

5. Is this good for gaming?

Absolutely. With DDR5, PCIe 5.0, and strong VRM performance, it’s excellent for high-end gaming builds.

6. Does it support multiple displays?

Yes, it features HDMI and DisplayPort outputs for multi-monitor setups.

7. Is it suitable for compact PCs?

Yes, the Micro ATX form factor makes it perfect for mid-size and compact gaming builds.

8. Where can I buy it in Dhaka?

You can find it in tech hubs such as Multiplan Center, IDB Bhaban, and major online retailers in Bangladesh.
