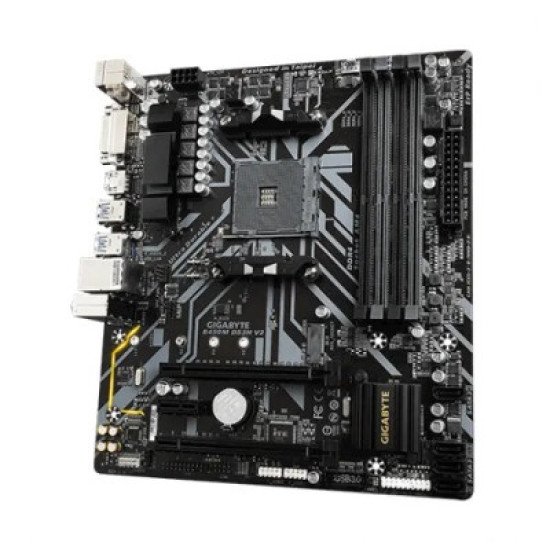

GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard

-11 %

GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard

Offer Price: 10,700৳
Price: 12,000৳
Stock: In Stock
Brand: Gigabyte
Model: B450M DS3H V2
Product Code: 850043

Based on 0 reviews. - Write a review

10,700৳

12,000৳

Ex Tax: 10,700৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

High-Quality Audio Capacitors
RGB LED Strips In 7-Colors
Ultra-Fast PCIe Gen3 X4 M.
Micro ATX Form Factor; 24.4cm X 21.5cm

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 21.5cm
Supported CPU	AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
Audio	3 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory Specifications
Maximum Memory	128 GB (32 GB single DIMM capacity) of system memory
Slots	4 x DIMM
Supported Memory	Dual channel memory architecture Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Graphics Specifications
Graphics	Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
RAID	Support for RAID 0, RAID 1, and RAID 10
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
USB (s)	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard

The GIGABYTE B450M DS3H V2 Ultra Durable AMD Motherboard is a reliable and performance-focused Micro ATX board designed for gamers, creators, and everyday PC users in Bangladesh. Powered by the AMD B450 chipset, it supports a wide range of AMD Ryzen processors, including Ryzen 5000 series, ensuring excellent compatibility and stable performance.

With support for up to 128GB DDR4 memory, high-speed storage options, enhanced power delivery, and Gigabyte’s signature Ultra Durable engineering, this motherboard delivers long-lasting reliability for both gaming and productivity. Its Micro ATX design makes it ideal for compact builds, providing outstanding value for users searching for an affordable B450 motherboard price in Dhaka or anywhere in Bangladesh.

Key Features

Wide AMD Ryzen CPU SupportCompatible with Ryzen 5000 series (BIOS update required), 3rd Gen Ryzen, and older AMD processors—ideal for versatile builds in Bangladesh.
Ultra Durable™ Build QualityEngineered with high-quality components for long-term stability and reliable performance in all environments.
Micro ATX Compact LayoutPerfect for small and mid-tower cases, offering a balanced mix of size, features, and expandability.
Supports Up to 128GB DDR4 RAMDual-channel DDR4 support ensures smooth multitasking, faster load times, and enhanced system responsiveness.
High-Speed M.2 NVMe Storage SupportEnjoy ultra-fast boot times and improved application performance with NVMe SSD compatibility.
Premium Audio & NetworkingEquipped with high-quality audio capacitors and Realtek LAN for stable, lag-free online gaming and streaming.
Multiple Display OutputsIncludes HDMI, DVI-D, and VGA for flexible dual-monitor or multi-monitor setups.

FAQs

1. What is the GIGABYTE B450M DS3H V2 price in Bangladesh?

Prices vary depending on store and availability. Check local retailers or online shops for the latest B450M DS3H V2 price in Bangladesh.

2. Does this motherboard support Ryzen 5000 processors?

Yes, it supports Ryzen 5000 series CPUs (BIOS update may be required depending on production batch).

3. How much RAM can it handle?

It supports up to 128GB DDR4 in dual-channel mode.

4. Is it good for gaming?

Absolutely. With a compatible Ryzen CPU and GPU, it delivers excellent gaming performance at a budget-friendly price, especially for users in Dhaka.

5. Does it have built-in Wi-Fi?

No, this model does not include Wi-Fi. You can add a Wi-Fi card if needed.

6. Does it support NVMe M.2 SSDs?

Yes, the board includes an M.2 slot for high-speed NVMe storage.

7. Is Micro ATX suitable for my build?

Yes, the Micro ATX form factor is ideal for compact PC builds commonly used in Bangladesh.
