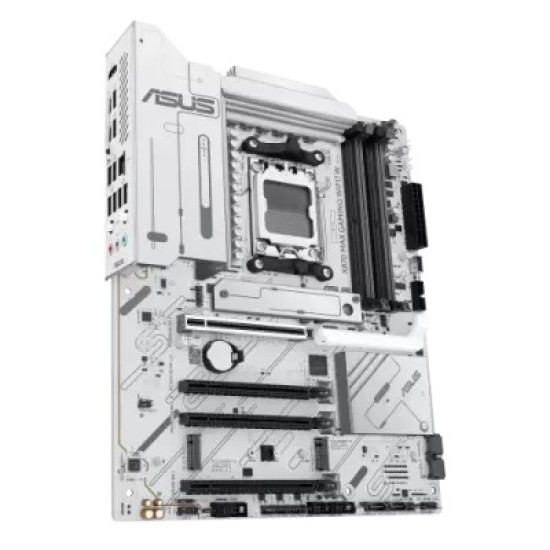

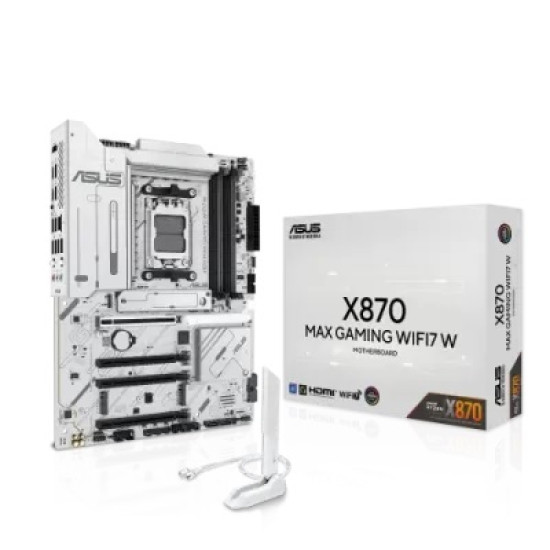

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

-0 %

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

Offer Price: 42,800৳
Price: 43,000৳
Stock: In Stock
Brand: Asus
Model: X870 MAX GAMING WIFI7 W
Product Code: 846861

Based on 0 reviews. - Write a review

42,800৳

43,000৳

Ex Tax: 42,800৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
Features: Realtek 2.5Gb Ethernet, Realtek 7.1

View more details

For further queries, please call 01999-913556

Specification

Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD X870 Chipset
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
M.2 Socket	AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
Memory Specifications
Maximum Memory	256GB
Slots	4 x DIMM
Supported Memory	Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP)
Type	DDR5
Graphics Specifications
Graphics	1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a. VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
HDMI	1x HDMI 2.1
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
RAID	AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types.
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. The M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. The PCIEX16(G3) slot shares bandwidth with the SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when the PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. Specifications vary by CPU types.

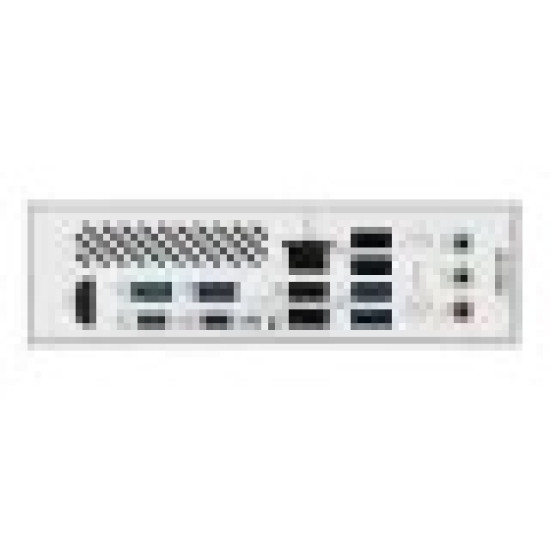

USB (s)	Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
Wireless Communication module	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
Others
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard

The Asus X870 MAX GAMING WIFI7 W AM5 ATX Motherboard is engineered for gamers, creators, and power users who demand cutting-edge performance and future-proof hardware. Designed for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, this ATX motherboard delivers unmatched speed with DDR5 memory, ultra-fast storage with PCIe 5.0 slots, and next-generation wireless connectivity through Wi-Fi 7.

Built to handle intensive workloads and high-end gaming, the X870 MAX GAMING motherboard combines premium components with advanced cooling, robust power delivery, and next-gen connectivity features. Whether you're assembling a professional workstation or an elite gaming PC, this board ensures outstanding stability, smooth multitasking, and superior data throughput.

For users searching for the Asus X870 MAX GAMING WIFI7 W price in Bangladesh or comparing the latest price in Dhaka, this motherboard stands out as a top-tier AM5 platform for long-term performance.

Key Features

Next-Gen Performance

Supports AMD Ryzen 9000, 8000 & 7000 Series desktop processors
High-speed DDR5 memory support for faster multitasking and gaming
Advanced VRM design ensures stable overclocking and power delivery

Ultra-Fast Storage & Expansion

PCIe 5.0 x16 slot for next-gen graphics cards
Multiple PCIe 5.0/4.0 M.2 slots for extreme NVMe SSD speeds
Optimized M.2 heatsinks to prevent thermal throttling

Latest Wireless Technology – Wi-Fi 7

Wi-Fi 7 delivers stronger signal, lower latency & higher bandwidth
Ideal for online gaming, 4K/8K streaming, and fast file transfers

High-Speed Networking

2.5Gb Ethernet LAN for ultra-stable wired connections
Low-latency performance for competitive gaming

Premium Cooling System

Large VRM & chipset heatsinks
Hybrid fan headers with intelligent control features
Ensures long-lasting stability under heavy workloads

Designed for Gamers

Enhanced audio for immersive gaming
Reinforced GPU slot (SafeSlot)
Customizable RGB lighting with Aura Sync

Durable Build Quality

Built with high-end components for long-lasting reliability
PCB optimized for stability, signal integrity & heat resistance

FAQs

1. What is the price of the Asus X870 MAX GAMING WIFI7 W in Bangladesh?

Pricing varies by retailer. To get the most accurate Asus X870 MAX GAMING WIFI7 W price in Bangladesh or price in Dhaka, check local tech stores and online marketplaces.

2. Which processors are supported?

It supports AMD Ryzen 9000, 8000, and 7000 Series CPUs via the AM5 socket.

3. Does this motherboard support PCIe 5.0 graphics cards?

Yes, the primary PCIe x16 slot supports PCIe 5.0, ideal for next-generation GPUs.

4. Is Wi-Fi 7 really faster than Wi-Fi 6/6E?

Yes. Wi-Fi 7 provides significantly higher bandwidth, lower latency, and more stable wireless performance.

5. Does it support DDR4 RAM?

No. This motherboard supports DDR5 memory only.

6. Is the board good for overclocking?

Absolutely. With a high-quality VRM design and large heatsinks, it is ideal for CPU and memory overclocking.

7. How many M.2 slots does it have?

It includes multiple PCIe 5.0 and 4.0 M.2 slots for high-speed NVMe SSDs.

8. Is this motherboard suitable for a future-proof gaming PC?

Yes. With AM5 support, PCIe 5.0, DDR5, and Wi-Fi 7, it is one of the most future-ready motherboards available.
