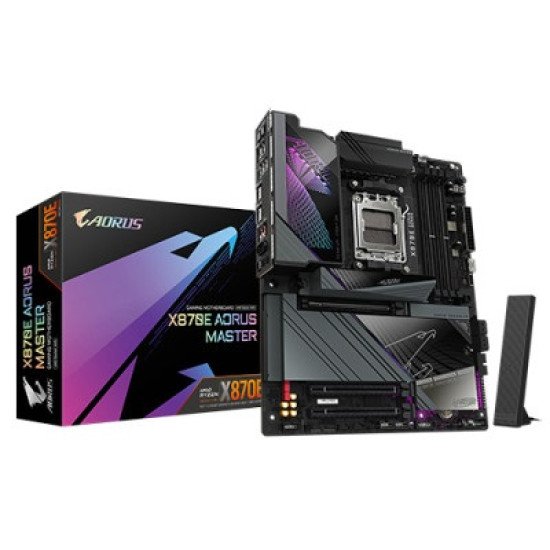

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX WiFi-7 Motherboard

-10 %

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX WiFi-7 Motherboard

Offer Price: 74,000৳
Price: 82,000৳
Stock: In Stock
Model: X870E AORUS MASTER
Product Code: 851264

Based on 0 reviews. - Write a review

74,000৳

82,000৳

Ex Tax: 74,000৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: X870E AORUS MASTER
Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (USB Type-C), 1 x HDMI
Features: Realtek 5GbE LAN, Qualcomm Wi-Fi 7 QCNCM865

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors
Chipset	AMD X870E
Audio	2 x audio jacks
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Memory Specifications
Maximum Memory	Up to 256GB (64GB single DIMM capacity) of system memory
Slots	4 DIMMs
Supported Memory	Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Type	DDR5
Graphics Specifications
Graphics	Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR
Connector & Ports
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
HDMI	1 x HDMI

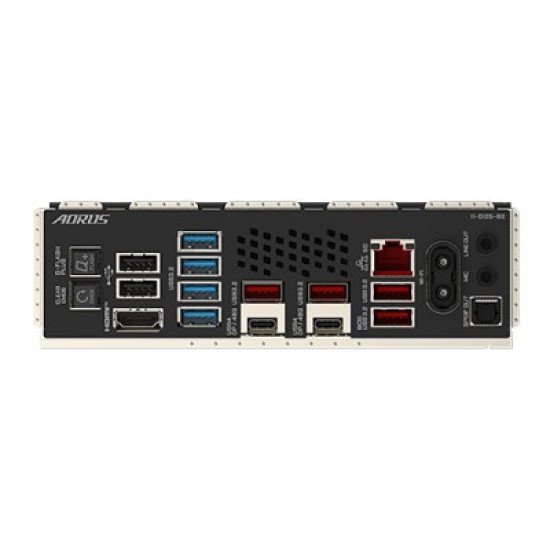

Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU. Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
LAN Port (s)	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
USB (s)	CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 3.2 Gen 1 ports available through the internal USB headers - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Others
Bundled Software	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX WiFi-7 Motherboard

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX WiFi-7 Motherboard is a flagship-level platform built for extreme performance, perfect for gamers, content creators, and PC enthusiasts in Bangladesh. Designed to support the latest AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, this X870E motherboard offers unmatched stability, power delivery, and future-proof capabilities.

With DDR5 memory support, PCIe 5.0 for both GPU and SSD, and advanced overclocking features, it delivers lightning-fast performance for rendering, gaming, multitasking, and high-end productivity workloads. The integration of Wi-Fi 7 and Realtek® 5GbE LAN ensures ultra-fast, low-latency networking, making it one of the most advanced AM5 motherboards available in Bangladesh.

The board features USB 4.0 / USB 3.2 Type-C ports, multiple PCIe 5.0 M.2 slots, and cutting-edge power design for maximum efficiency. Its Thermal Reactive Armor, enlarged heatsinks, and advanced cooling ensure optimal temperatures even during intense workloads.

With RGB Fusion 2.0, premium components, reinforced slots, and superior build quality, the GIGABYTE X870E AORUS MASTER is the ideal choice for anyone building a high-end Ryzen AM5 PC. If you're searching for the latest GIGABYTE X870E AORUS MASTER price in Bangladesh or planning a premium setup in Dhaka, this motherboard stands out as one of the best performance options available.

Key Features

Next-Gen AM5 Support

Compatible with Ryzen 9000 / 8000 / 7000 Series processors
Ideal for high-end gaming and workstation builds in Bangladesh

DDR5 Memory Support

Higher speed, stability, and bandwidth
Excellent for multitasking, editing, and productivity

PCIe 5.0 for GPU and Storage

PCIe 5.0 GPU slot for next-gen graphics cards
PCIe 5.0 M.2 SSD slots for ultra-fast NVMe storage

Wi-Fi 7 + 5GbE LAN

Wi-Fi 7 for ultra-fast wireless performance
Realtek® 5GbE LAN for stable wired connectivity

Thermal Reactive Armor Cooling

Enhanced heatsinks
Smart fan control for sustained performance under load

Premium Connectivity

USB4 / USB 3.2 Gen2 Type-C
Multiple USB high-speed ports
HDMI support

RGB Fusion 2.0 Lighting

Customizable lighting for gamers
Sync with GIGABYTE-compatible RGB components

Durable Build & Reinforced Slots

PCIe armor
High-quality capacitors
Long-lasting performance for heavy daily use

FAQs

1. What is the GIGABYTE X870E AORUS MASTER price in Bangladesh?

Prices vary by retailer. To get the latest price in Bangladesh or price in Dhaka, check trusted PC hardware shops or online stores.

2. Which CPUs does the X870E AORUS MASTER support?

It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors on the AM5 platform.

3. Does this motherboard support DDR4 RAM?

No. It supports DDR5 memory only.

4. Does the GIGABYTE X870E AORUS MASTER have Wi-Fi?

Yes, it includes Wi-Fi 7, offering extremely fast and stable wireless connectivity.

5. Is PCIe 5.0 supported for GPUs and SSDs?

Yes, it offers PCIe 5.0 GPU slots and PCIe 5.0 M.2 SSD support.

6. Is this motherboard good for gaming and editing?

Absolutely. With DDR5, PCIe 5.0, Wi-Fi 7, and strong VRM cooling, it's excellent for 4K gaming, video editing, rendering, and AI workloads.

7. Does it support Windows 11?

Yes, it is fully compatible with Windows 11.
