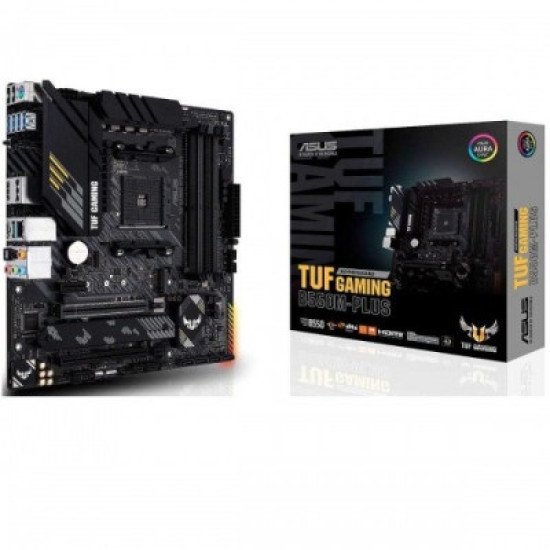

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard

-3 %

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard

Offer Price: 18,500৳
Price: 19,000৳
Stock: In Stock
Brand: Asus
Model: TUF Gaming B550m-Plus
Product Code: 846380

Based on 0 reviews. - Write a review

18,500৳

19,000৳

Ex Tax: 18,500৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Made for online gaming
Comprehensive cooling
Enhanced power solution

View more details

For further queries, please call 01958-013555

Specification

Basic Information
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B550
Audio	3 x Audio jacks
Expansion Slots
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1
Memory Specifications
Maximum Memory	128GB
Slots	4 x DDR4 memory slots
Supported Memory	3rd Gen AMD Ryzen Processors 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) /3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU
Type	Dual Channel Memory Architecture
Graphics Specifications
Graphics	1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology
Connector & Ports
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Display Port	1 x DisplayPort 1.2
HDMI	1 x HDMI 2.1(4K@60HZ)

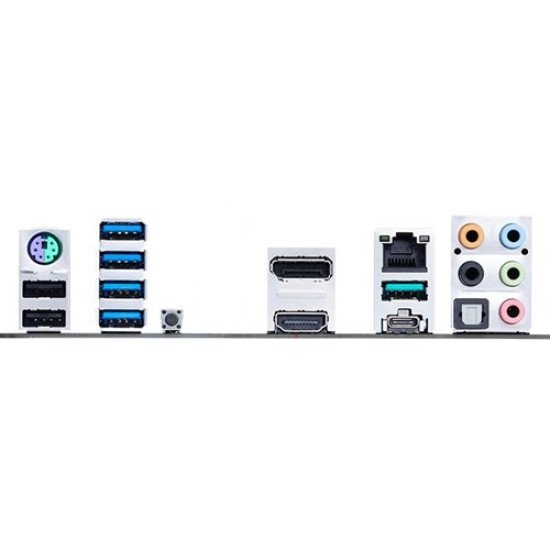

Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
LAN Port (s)	Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard
Supported Storage	Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
TPM (Trusted Platform Module )	1 x SPI TPM header
USB (s)	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Others
Special Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard

The Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard is one of the most reliable and performance-driven AM4 motherboards available in Bangladesh. Built with military-grade TUF components and powered by the advanced AMD B550 chipset, it supports Ryzen 5000, 4000G Series, and 3rd Gen Ryzen processors—offering exceptional durability, stability, and long-term performance.

With features like PCIe 4.0, dual M.2 slots, advanced cooling architecture, high-quality audio, and next-gen connectivity, this motherboard is ideal for gamers, content creators, and power users in Dhaka looking for a dependable yet value-packed option. Whether you’re building a new PC or upgrading your existing system, the TUF Gaming B550M-Plus ensures superior performance for its price in Bangladesh.

Key Features

Supports AMD Ryzen 5000 / 4000G / 3rd Gen Processors:Perfect for budget and mid-range gaming PCs across Bangladesh.
Military-Grade TUF Components:Durable chokes, capacitors, and MOSFETs designed for long-lasting reliability—ideal for Dhaka’s warmer climate.
PCIe 4.0 Support:Enjoy ultra-fast graphics card and NVMe SSD performance.
Dual M.2 Slots:One PCIe 4.0 and one PCIe 3.0 slot for high-speed storage flexibility.
Enhanced Power Design:DrMOS power stages and robust VRM ensure stable CPU performance during gaming or multitasking.

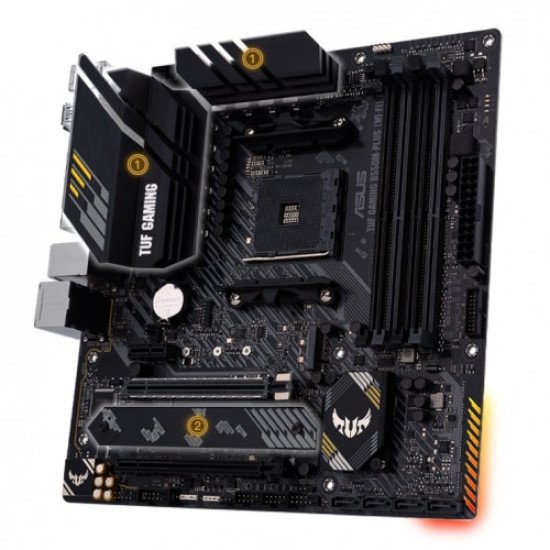

Advanced Cooling Solutions:Large heatsinks, fan headers, and Fan Xpert 2+ offer excellent thermal control.
High-Quality Audio Output:Realtek audio with DTS support provides immersive sound for games and entertainment.
Next-Gen Connectivity:Includes USB 3.2 Gen 2 ports, HDMI, DisplayPort, and Gigabit Ethernet.
Micro ATX Form Factor:Compact size fits easily into modern gaming cases widely used in Bangladesh.

FAQs

1. What is the price of the Asus TUF Gaming B550M-Plus in Bangladesh?

Prices vary depending on the store. For the latest Asus TUF Gaming B550M-Plus price in Bangladesh, check reputable PC shops and online retailers.

2. Does this motherboard support Ryzen 5000 CPUs?

Yes. It fully supports Ryzen 5000 Series out of the box.

3. Does the B550M-Plus have PCIe 4.0 support?

Yes. The main PCIe x16 slot and one M.2 slot support PCIe 4.0.

4. Is this motherboard good for gaming?

Absolutely. It offers stable VRM performance, fast storage support, and strong durability—perfect for high-performance gaming builds in Dhaka.

5. How many M.2 slots are included?

There are two M.2 slots—one PCIe 4.0 and one PCIe 3.0.

6. Is the TUF series durable?

Yes. The TUF series uses military-grade components designed for long-term reliability.
