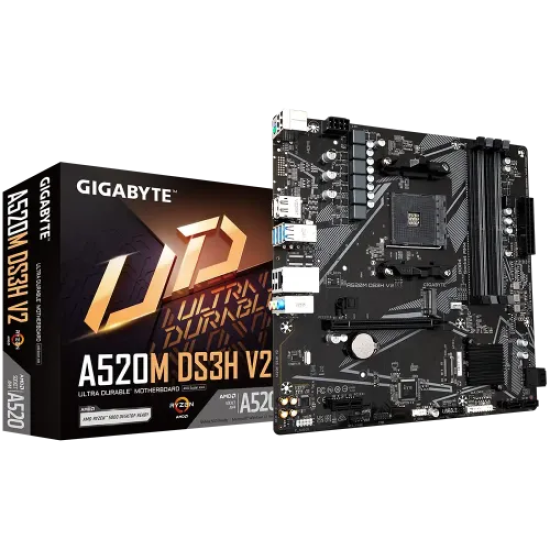

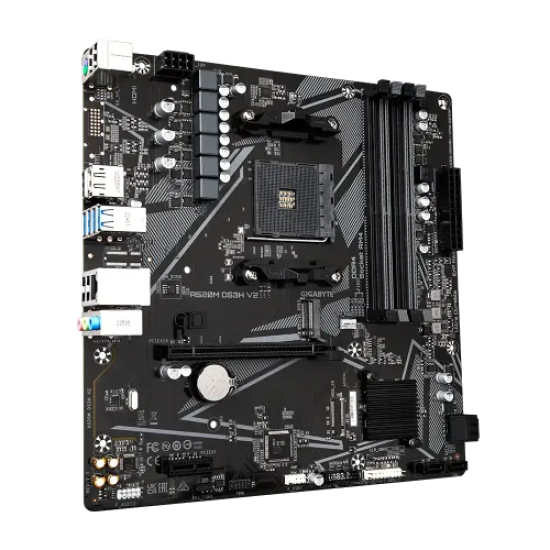

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard

Stock: In Stock
Brand: Gigabyte
Model: A520M DS3H V2

Based on 0 reviews. - Write a review

9,500৳

10,600৳

Ex Tax: 9,500৳

Add to PC Builder

Key Features

Supported CPU: Ryzen 5000 / 4000 / 3000 G-Series Processors for Socket AM4
Supported RAM: 4x DDR4, up to 128GB
Graphics Output: 1x Display Port, 1x HDMI
Features: Realtek GbE LAN chip, Ultra Durable PCIe 3.0 x16 Slot

View more details

For further queries, please call 01999-913558

Specification
Review

Specification

Basic Information
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Chipset	AMD A520
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
M.2 Socket	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slots, Supporting PCIe 3.0 x1 mode
Memory Specifications
Maximum Memory	128 GB (32 GB single DIMM capacity)
Slots	4 x DDR4 DIMM
Supported Memory	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	Dual-Channel Memory Architecture
Graphics Specifications
Graphics	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Supports DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Supports HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory	Maximum shared memory of 16 GB
Connector & Ports
Display Port	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

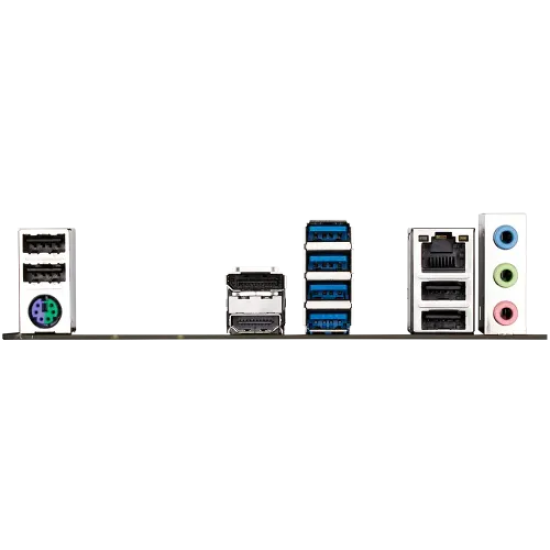

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Support for Windows 11 64-bit Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty	3 years
