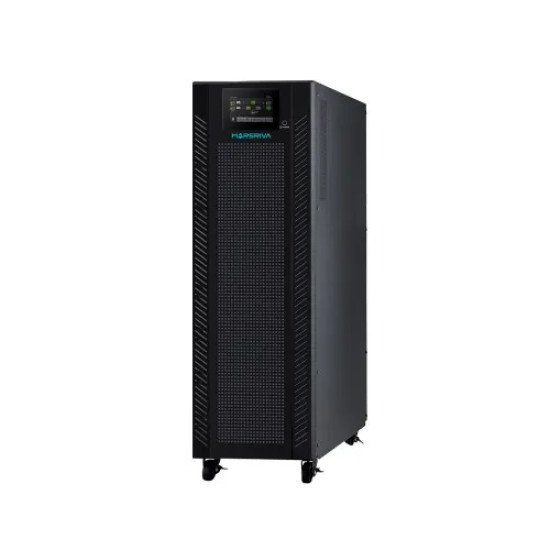

Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS

Offer Price: 214,800৳
Price: 260,000৳
Stock: In Stock
Brand: Marsriva
Model: MR-US3320K-H
Product Code: 912351

Based on 0 reviews. - Write a review

214,800৳

260,000৳

Ex Tax: 214,800৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Rated Capacity: 20kVA / 20kW
Output Voltage: 3 x 360*/380*/400/415 VAC (3Ph+N)
Topology: Online
Parallel Capability: up to 4 units

View more details

For further queries, please call 01999-913558

Specification

Battery Info:
Battery	Lead-acid battery : 12V / 7Ah (9Ah optional)x16
Key Features
Capacity	20kVA
Display Type	LCD
Frequency	50Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Input Voltage	3 x 400VAC (3Ph+N) / 230VAC (1Ph+N)
Noise Level	Audible Noise: Less than 50dB (1 meter from surface)
Others	Output Harmonic Distortion (THDi): ≤2% THD (Linear Load) ; ≤5 % THD (Non-linear Load) Output Overload Capability: 100 – 110% for 60min, 111 – 125% for 10min, 126% – 150% 1min, ＞150% immediately Input Harmonic Distortion (THDi): ＜4% at full linear load
Output Voltage	3 x 360/380/400/415 VAC (3Ph+N)
Generel information
Load Capacity	20kW
Power Factor	≥0.99 @ 100% Load
Transfer Time	AC Mode to Batt. Mode: 0ms Inverter to Bypass: 0ms
Type of Wave	Pure Sine wave
Voltage Range	110 – 300VAC ± 3 % @ 50% load; 176 – 276VAC ± 3 % @ 100% load
Physical Information
Dimension	460 x 190 x 615
Weight	50.6kg
Warranty Information
Warranty	01-year warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description

Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS

The Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS is designed to provide stable and uninterrupted power for data centers, industrial facilities, server rooms, and other critical applications. With a rated capacity of 20kVA / 20kW, it supports high-demand equipment that requires reliable power protection.

This online UPS features three-phase output, pure sine wave technology, and a 0ms transfer time between AC and battery modes. It supports parallel operation with up to four units, allowing additional capacity or redundancy for suitable installations. Its high input power factor and low harmonic distortion help improve power efficiency and protect connected equipment.

Key Features

Brand: Marsriva
Model: MR-US3320K-H
UPS Type: Online UPS
Rated Capacity: 20kVA / 20kW
Output: Three-phase, 360/380/400/415VAC
Output Waveform: Pure sine wave
Transfer Time: 0ms
Parallel Operation: Up to 4 units
Input Power Factor: ≥0.99
Output Voltage Regulation: ±1% in battery mode
Overload Capacity: Up to 150% for short durations

Marsriva MR-US3320K-H 20kVA Online UPS Price in Bangladesh

The price of the Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS in Bangladesh depends on availability, installation requirements, and configuration. Contact Canvas IT for the latest price and current offers.

Alternative Models

Marsriva MR-US6K 6kVA Online UPS
Marsriva MR-US10K 10kVA Online UPS
Marsriva MR-US3320K 20kVA Online UPS
Marsriva 30kVA Online UPS

Buy Marsriva MR-US3320K-H Online UPS from Canvas IT

Buy the Marsriva MR-US3320K-H 20kVA Online UPS from Canvas IT for data centers, industrial facilities, and business-critical systems. Contact Canvas IT to check pricing, stock availability, and configuration options for your power backup requirements.

FAQs

1. What is the capacity of the Marsriva MR-US3320K-H UPS?

It has a rated capacity of 20kVA / 20kW.

2. Is the Marsriva MR-US3320K-H suitable for data centers?

Yes, it is designed for critical systems such as data centers, server rooms, and industrial equipment.

3. Does this UPS support parallel operation?

Yes, it supports parallel operation with up to four units, subject to compatible system configuration.

4. What type of output does the Marsriva MR-US3320K-H provide?

It provides three-phase output and pure sine wave power.

5. Where can I buy the Marsriva MR-US3320K-H in Bangladesh?

Contact Canvas IT for the latest price, availability, and purchasing information.
