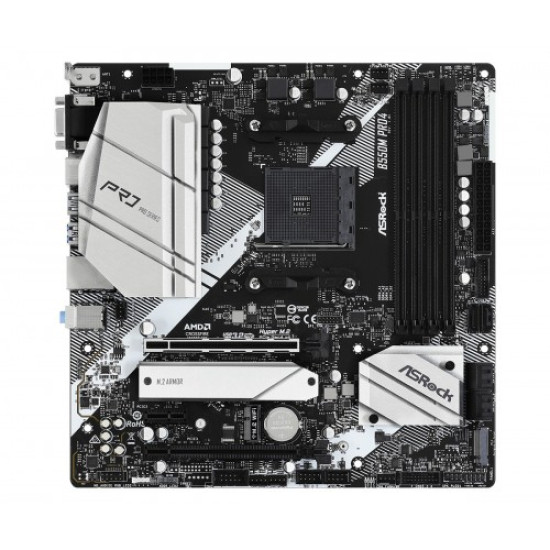

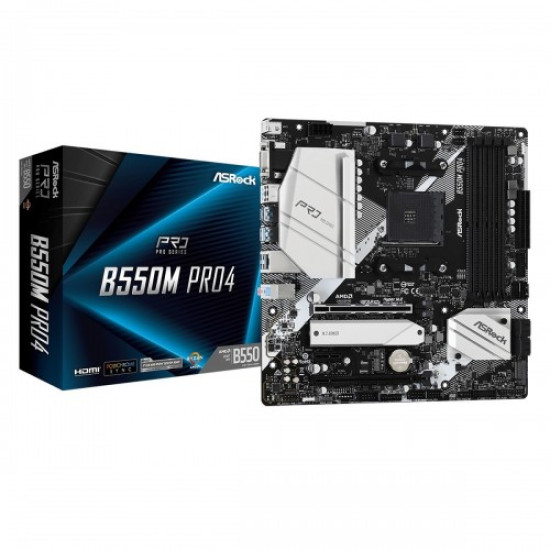

ASRock B550M Pro4 DDR4 AMD Motherboard

Offer Price: 12,850৳
Price: 14,600৳
Stock: In Stock
Brand: ASRock
Model: B550M Pro4
Product Code: 899808

Based on 0 reviews. - Write a review

12,850৳

14,600৳

Ex Tax: 12,850৳

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
Supports DDR4 4733+ (OC)
6 SATA3, 1 Hyper M.2, 1 M.2
8 Power Phase Design

View more details

For further queries, please call 01999-913556

Specification

Basic Information
BIOS	256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake-up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM +1.8VSB, VDDP Voltage Multi-adjustment
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB
Supported CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design
Chipset	AMD B550
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio
Graphic Card	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady
Connectivity
D-Sub	1 x D-Sub Port
Expansion Slots
M.2 Socket	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
PCI	1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Memory Specifications
Maximum Memory	128GB
Slots	AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) - 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX and CrossFireX
Supported Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 386 6(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
Type	DDR4
Connector & Ports
Display Port	1 x DisplayPort 1.4
HDMI	1 x HDMI Port
Internal I/O Ports	- Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
LAN Port (s)	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
USB (s)	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Others
Special Features	ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

ASRock B550M Pro4 DDR4 AMD Motherboard Price in Bangladesh

The ASRock B550M Pro4 DDR4 AMD Motherboard is a feature-rich Micro-ATX motherboard designed for AMD Ryzen processors, offering excellent performance, stability, and expansion capabilities for gamers, content creators, and PC enthusiasts. Built on the AMD B550 chipset, this motherboard supports PCIe 4.0 technology, dual M.2 SSD slots, premium audio features, and advanced cooling solutions, making it an ideal foundation for high-performance PC builds.

With robust power delivery, high-quality components, and extensive connectivity options, the ASRock B550M Pro4 delivers reliable performance for gaming, multitasking, content creation, and everyday computing.

Key Features

AMD B550 Chipset
Supports AMD Ryzen Processors
Micro-ATX Form Factor
PCIe 4.0 Support
Dual Ultra M.2 SSD Slots
Nahimic Audio Technology
Sound Tracker Gaming Feature
RGB and Addressable RGB Headers
Premium Power Delivery Design
Large Aluminum Alloy Heatsinks
2oz Copper PCB Construction
High Density Glass Fabric PCB
HDMI, DisplayPort, and D-Sub Outputs
4K HDMI Display Support
Full Spike Protection Technology
ASRock Live Update & APP Shop

Why Choose the ASRock B550M Pro4 Motherboard?

The ASRock B550M Pro4 is designed for users who want a balance of performance, durability, and upgrade flexibility. Its robust VRM design ensures stable power delivery for Ryzen processors, while dual M.2 slots provide fast storage options for gaming and productivity workloads.

The motherboard's premium cooling design with large heatsinks helps maintain lower temperatures during intensive tasks. RGB support allows users to customize their setup, while Nahimic Audio technology delivers immersive sound quality for gaming and multimedia experiences.

With PCIe 4.0 support, multiple display outputs, and advanced protection features, the B550M Pro4 is a reliable choice for building a modern AMD-based PC.

ASRock B550M Pro4 Motherboard Price in Bangladesh

The ASRock B550M Pro4 DDR4 AMD Motherboard price in Bangladesh typically ranges from ৳11,500 to ৳16,500, depending on stock availability, distributor pricing, and market conditions.

Buy ASRock B550M Pro4 Motherboard from Canvas IT

Purchase the original ASRock B550M Pro4 DDR4 AMD Motherboard from Canvas IT and enjoy:

Competitive Price in Bangladesh
100% Genuine ASRock Product
Official Warranty Support
Fast Nationwide Delivery
Secure Online Ordering
Professional Customer Service
Expert PC Build Consultation

Alternative AMD Motherboards

ASRock B550 Steel Legend
MSI B550M PRO-VDH WiFi
Gigabyte B550M DS3H

FAQs

Q: Does the ASRock B550M Pro4 support PCIe 4.0?

Yes. It supports PCIe 4.0 when paired with compatible AMD Ryzen processors.

Q: How many M.2 SSD slots does it have?

The motherboard features dual M.2 slots for high-speed NVMe SSD storage.

Q: Does it support RGB lighting?

Yes. It includes both RGB and Addressable RGB headers for compatible lighting accessories.

Q: Can I connect multiple monitors?

Yes. The motherboard provides HDMI, DisplayPort, and D-Sub outputs for multi-display support.

Q: What is the warranty period?

The ASRock B550M Pro4 DDR4 AMD Motherboard comes with a 3-Year Warranty.
